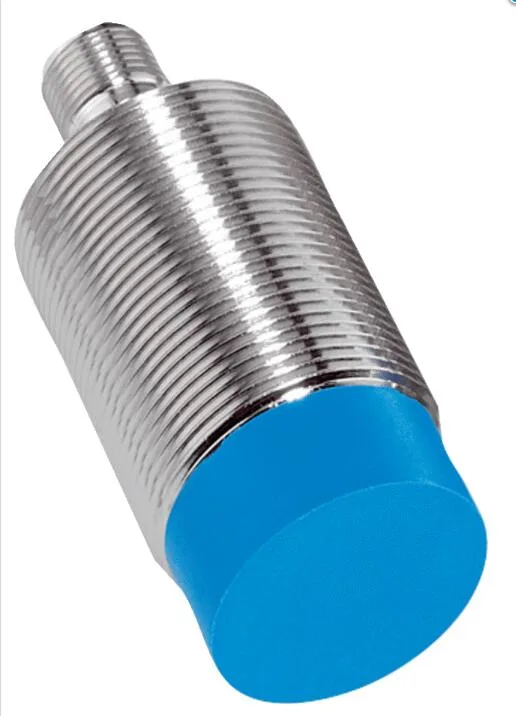

Cylindrical nickel-plated brass sensor M30 thread 71 mm long M12 connector

Sick

SICK IME30-20NPOZC0S Inductive Proximity Sensor PNP NC M12 20mm IP67

SKU CH-MKF7-Q4XQS

M30 inductive proximity sensor detects metal at 20 mm with PNP NC output, IP67 housing and M12 connector

  • 20 mm sensing range detects metal targets at distance
  • PNP normally-closed output simplifies fail-safe wiring
  • IP67 enclosure rating withstands water and dust ingress
  • 10–30 V DC supply fits standard industrial power rails
  • M12 4-pin connector enables quick installation

M30 Inductive Proximity Sensor for Industrial

The SICK IME30-20NPOZC0S is a cylindrical inductive proximity sensor with an M30 x 1.5 thread and a 20 mm sensing range. It provides a PNP normally closed output on a 4-pin M12 male connector for direct integration into DC control circuits. The nickel-plated brass housing and PA 66 sensing face meet IP67 enclosure rating for use in harsh environments. Operating temperature spans –25 °C to +75 °C.

Upgrade from Smaller Thread or Shorter Range Sensors

This model replaces sensors with smaller thread sizes or sensing distances below 20 mm when the application demands greater detection distance on a standard M30 mounting. The jump is worthwhile when a non-flush installation is required and the 500 Hz switching frequency matches the machine cycle speed. A safe sensing range of 16.2 mm ensures reliable operation within the specified zone.

Suits Machine Builders Needing Rugged Non-Flush

The sensor suits automation engineers who need a metal-housed, IP67-rated device with a 10–30 V DC supply and 200 mA continuous current capability. It is not for applications requiring a flush mount format, an NPN output type, or a normally open switching function. Buyers needing a different thread size or connector style should look at other models.

Highlights

  • 20 mm sensing range detects metal targets at distance
  • PNP normally-closed output simplifies fail-safe wiring
  • IP67 enclosure rating withstands water and dust ingress
  • 10–30 V DC supply fits standard industrial power rails
  • M12 4-pin connector enables quick installation

Specifications

Brandsick
ModelSICK IME30-20NPOZC0S

Questions about this item

What thread size and housing length must the mounting bracket accommodate for this M30 sensor?

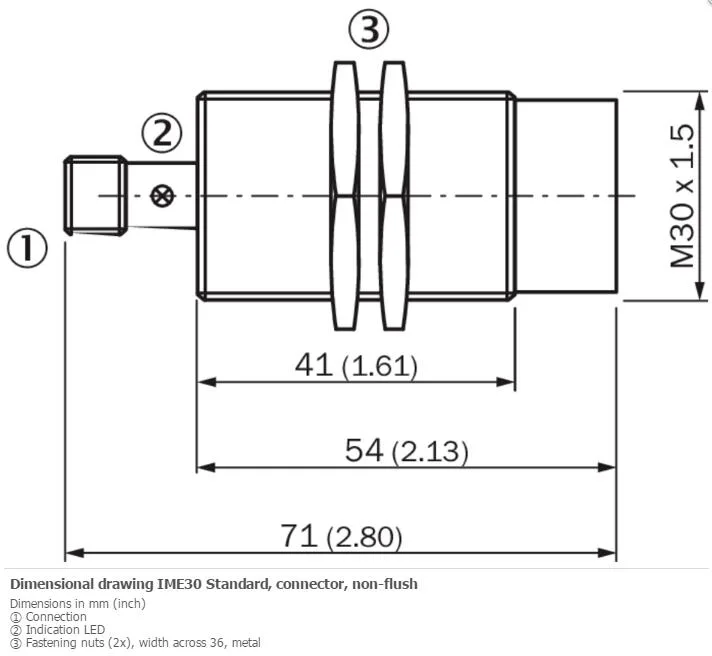

The sensor has an M30 x 1.5 thread with a 41 mm thread length and an overall housing length of 71 mm, so the bracket needs clearance for at least 71 mm depth.

Which wiring step is critical when connecting the 4-pin M12 connector to a 10–30 V DC supply?

Wire the DC 3-wire PNP NC output correctly: brown to 10–30 V DC, blue to 0 V, and black as the switched load; the sensor draws 10 mA and needs 125 ms before the output is stable.

What ongoing checks does the IP67-rated nickel-plated brass housing require in a –25 °C to +75 °C environment?

Periodically verify the M12 connector seal and PA 66 sensing face for damage or contaminant build-up; the housing tolerates 30 g shock and 10–55 Hz vibration, but physical damage compromises the IP67 rating.
