Sick

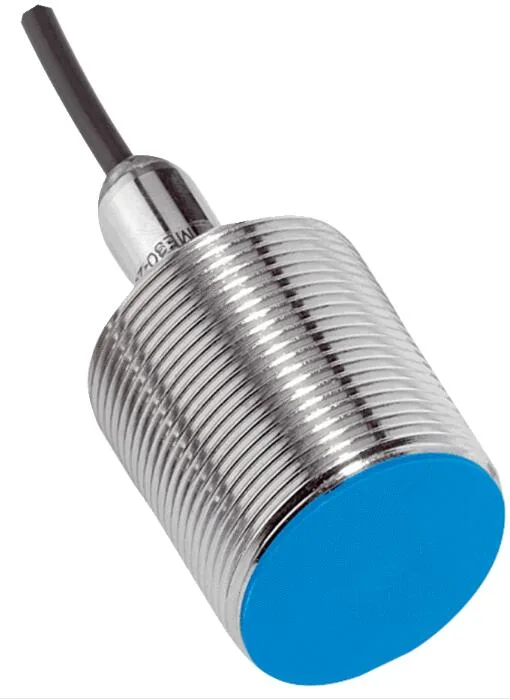

Sick IME30-10BNOZW2K Inductive Proximity Sensor NPN 10 mm 2 m Cable
Flush-mount inductive sensor with 10 mm range, NPN NC output, IP67 nickel-plated brass housing and 2 m PVC cable
- 10 mm sensing range with flush mounting
- NPN normally-closed output on 3-wire DC cable
- IP67-rated nickel-plated brass housing
- 500 Hz switching frequency for fast response
- Operating temperature –25 °C to +75 °C
Sick IME30 Inductive Sensor 10 mm Range

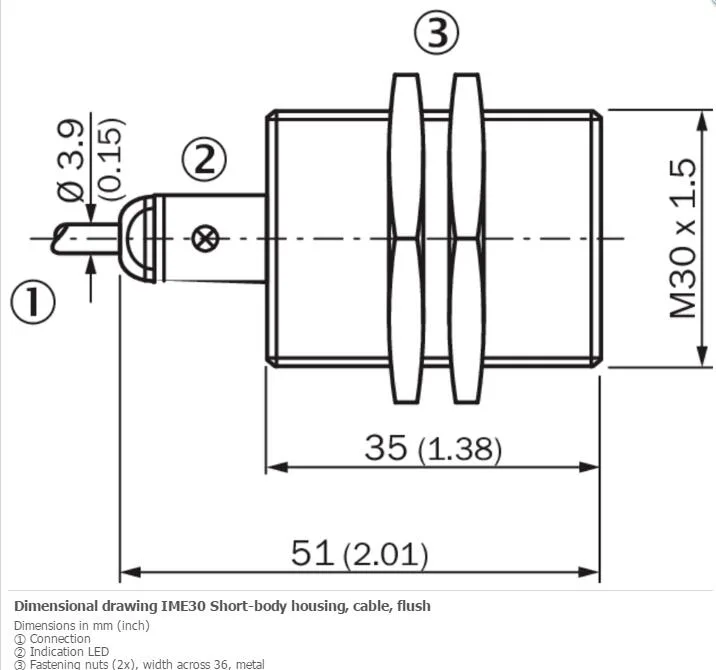

The Sick IME30-10BNOZW2K is a cylindrical inductive proximity sensor with a 10 mm sensing range and a flush mounting design. It uses a nickel-plated brass M30 × 1.5 threaded housing measuring 51 mm in length with a 35 mm thread length. The sensor provides an NPN normally closed output on a 2 m PVC cable for industrial detection tasks.
DC Supply Limits and Cable Constraints
Operation requires a 10 V DC to 30 V DC supply with a maximum 10 % ripple and a 2 V drop across the switch. The 3-wire cable uses 0.25 mm² conductors and a 3.9 mm outer diameter, limiting voltage drop over long runs. A 125 ms power-up delay and 500 Hz switching frequency set the timing boundaries for control loops.
NPN Normally Closed Output Decides Fit
The sensor sinks current through an NPN transistor that opens when a target enters the 10 mm range, delivering up to 200 mA continuous load current. This output logic suits PLC inputs that expect a low signal when the object is present. Builders needing a high signal on detection or a PNP sourcing output must choose a different part.
Highlights
- 10 mm sensing range with flush mounting
- NPN normally-closed output on 3-wire DC cable
- IP67-rated nickel-plated brass housing
- 500 Hz switching frequency for fast response
- Operating temperature –25 °C to +75 °C
Specifications
| Brand | sick |
|---|---|
| Model | SICK IME30-10BNOZW2K |
Questions about this item
Which sensing range version should I choose for this M30 sensor?
This model provides a 10 mm sensing range with an 8.1 mm safe sensing range, so choose it when your application requires detection within that distance.
What does the 500 Hz switching frequency mean when the sensor is installed?
The sensor can complete up to 500 switching cycles per second, allowing reliable detection of objects moving at moderate speeds in automation sequences.
How does the NPN NC output and 10–30 V DC supply affect wiring?
The NPN normally-closed output sinks current to ground when no target is present, and the unit operates on any DC supply between 10 V and 30 V with a 2 V drop at 200 mA continuous current.
