Sick IME18-05BNOZCOK inductive proximity sensor NPN electrician tool
M18 inductive proximity sensor with 5 mm sensing range, NPN normally-closed output, 10–30 V DC supply, IP67-rated nickel-plated brass housing and M12 connector
- 5 mm sensing range for close-proximity detection
- M12 4-pin connector enables quick wiring
- NPN normally-closed output suits standard PLC inputs
- IP67 rated housing withstands water and dust ingress
- Metal nickel-plated brass body resists shock and vibration
Sick M18 inductive sensor for industrial detection

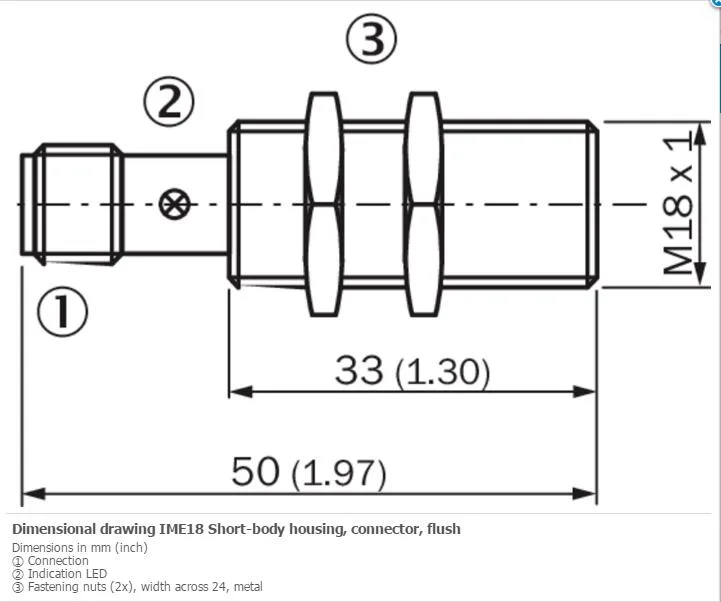

The Sick IME18-05BNOZCOK is a cylindrical inductive proximity sensor with an M18 × 1 thread and a 5 mm sensing range. It operates on 10–30 V DC supply voltage and provides an NPN normally-closed output. The short-body housing measures 50 mm in length with a 33 mm thread length, making it suitable for machine builders and maintenance engineers who need reliable metal detection in tight spaces.
Nickel-plated brass housing with IP67 protection
The sensor body uses nickel-plated brass with a PA 66 sensing face, rated IP67 for dust and water resistance. A 4-pin M12 male connector allows quick wiring in DC 3-wire configuration. Flush mounting lets the sensor sit level with surrounding metal, while the 1,000 Hz switching frequency supports fast cycle times on conveyors or automated stations.
Replaces larger or slower sensors in existing M18
This unit upgrades older M18 sensors that lack short-body dimensions or IP67 sealing, and it fits the same thread cut-out without re-tapping. The 4.05 mm safe sensing range and ±10 % temperature drift ensure consistent triggering across –25 °C to +75 °C. It is not for applications requiring PNP logic, NO output function, or sensing distances beyond 5 mm.
Highlights
- 5 mm sensing range for close-proximity detection
- M12 4-pin connector enables quick wiring
- NPN normally-closed output suits standard PLC inputs
- IP67 rated housing withstands water and dust ingress
- Metal nickel-plated brass body resists shock and vibration
Specifications
| Brand | Sick |
|---|---|
| Model | SICK IME18-05BNOZCOK |
Questions about this item
What sensing range does the M18 inductive sensor actually reach in practice?
The rated sensing distance is 5 mm, with a safe operating range of 4.05 mm for reliable detection.
What clearance and thread depth are needed to mount the 18 mm barrel?
It requires an M18 × 1 threaded hole with 33 mm thread length and a maximum tightening torque of 40 Nm.
How do you wire the 4-pin M12 connector on this NPN NC sensor?
Connect the brown wire to 10–30 V DC, blue to ground, and black to the load; the white wire is unused for this 3-wire DC output.
