Sick
Sick IME12-04BPOZW2K Inductive Proximity Sensor PNP
A cylindrical M12 inductive proximity sensor with 4 mm flush sensing range, PNP normally-closed output and a 2 m PVC cable for 10–30 V DC systems
- 4 mm sensing range detects metal targets reliably
- PNP normally-closed output simplifies control wiring
- IP67 rating withstands dust and water ingress
- 2 kHz switching frequency suits fast automation cycles
- 10–30 V DC supply works with standard industrial power
Sick IME12-04BPOZW2K Inductive Sensor

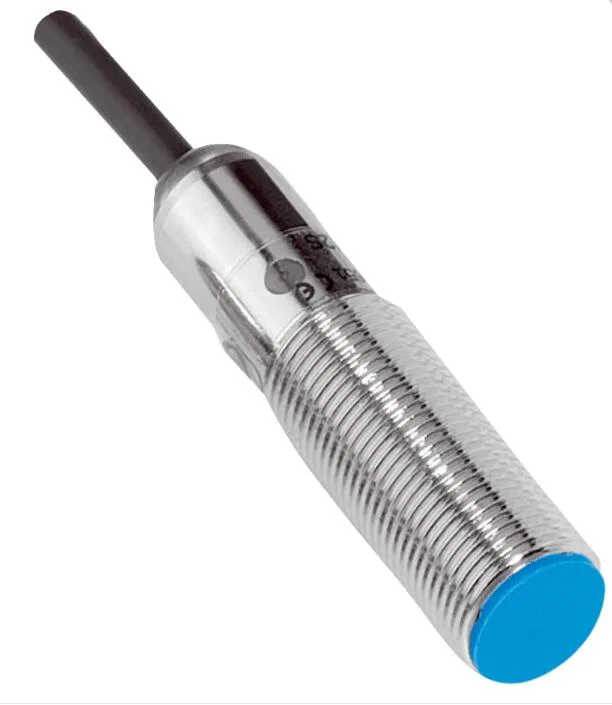

The Sick IME12-04BPOZW2K is a cylindrical M12 x 1 inductive proximity sensor with a 4 mm sensing range and a flush mounting design. It delivers a PNP normally-closed output on a 2 m PVC cable and operates on 10 V DC to 30 V DC supply voltage. The nickel-plated brass housing meets IP67 protection and withstands ambient temperatures from –25 °C to +75 °C.
Suited For Industrial Automation And Metal Detection

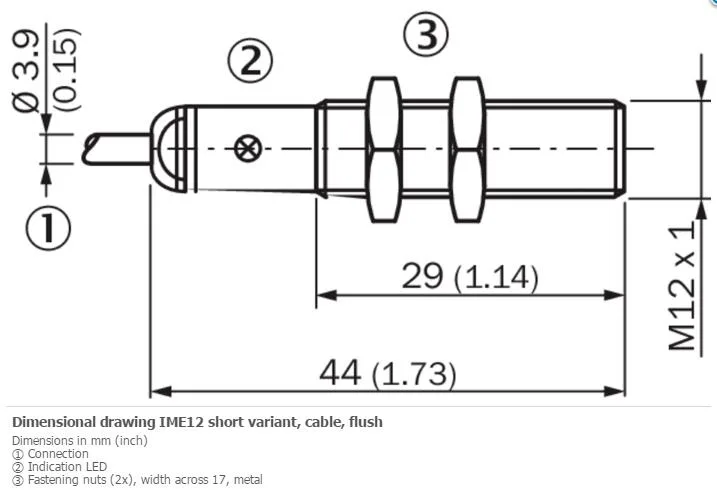

This sensor suits applications that require reliable non-contact detection of metal targets at close range in harsh environments. The 2,000 Hz switching frequency supports fast cycling machinery while the short 44 mm body fits tight mounting spaces. Buyers who need a normally-open output function or a longer sensing distance should look at alternative models.
Integrates Into DC Control Systems
The three-wire DC connection simplifies wiring to PLC inputs or relay coils without additional modules. A 200 mA continuous current rating drives small loads directly while built-in short-circuit and reverse polarity protection guard the output stage. The 2 m cable length provides routing flexibility and the 12 Nm maximum tightening torque secures the sensor in standard M12 threaded holes.
Highlights
- 4 mm sensing range detects metal targets reliably
- PNP normally-closed output simplifies control wiring
- IP67 rating withstands dust and water ingress
- 2 kHz switching frequency suits fast automation cycles
- 10–30 V DC supply works with standard industrial power
Specifications
| Brand | sick |
|---|---|
| Model | SICK IME12-04BPOZW2K |
Questions about this item
What supply voltage must my system provide for the Sick IME12-04BPOZW2K to operate?
The sensor requires a DC supply between 10 V and 30 V with no more than 10 % ripple.
Can I mount this M12 sensor flush in a metal bracket without losing its 4 mm sensing range?
Yes, it is designed for flush installation and maintains a 4 mm sensing range with a 3.24 mm safe range in metal.
How can I verify the sensor is switching correctly after wiring the 3-wire cable?
With a 10–30 V DC supply connected, the PNP NC output will read high when no target is present and drop low when metal enters the 4 mm range; switching frequency is 2,000 Hz.
