Cylindrical nickel-plated brass sensor M8 thread 8 mm diameter 43 mm length 2 m PVC cable

Sick

Sick IME08-2N5POZW2K Inductive Proximity Sensor PNP NC 2.5 mm 2 m Cable IP67

SKU CH-PEB7-A30GP

Inductive proximity sensor detects metal at 2.5 mm range with PNP NC output, 2 m PVC cable and IP67-rated nickel-plated brass housing

  • PNP normally-closed output simplifies fail-safe wiring
  • 5 mm sensing range detects metal at close quarters
  • IP67 rating withstands water jets and dust ingress
  • 4 000 Hz switching frequency suits high-speed automation
  • Nickel-plated brass housing resists corrosion in harsh environments

M8 Inductive Sensor for Close-Range Detection

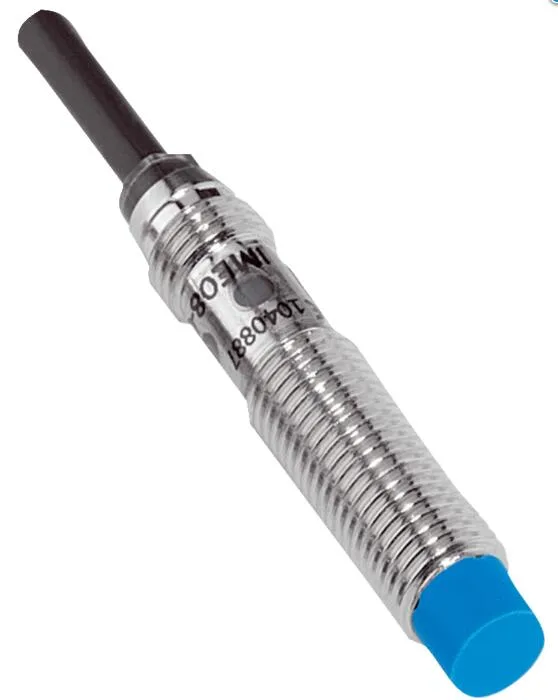

The Sick IME08-2N5POZW2K is a cylindrical inductive proximity sensor with an M8 x 1 thread and 8 mm diameter. It offers a 2.5 mm sensing range and a 2.025 mm safe sensing range in a non-flush, short-body housing. The PNP output operates as normally closed with a 4,000 Hz switching frequency. It connects via a 2 m PVC cable with three 0.25 mm² conductors.

Suited for Metal Sensing in Tight Industrial Spaces

This sensor fits applications needing non-flush mounting in metal environments where space is limited. The nickel-plated brass housing and PA 66 sensing face withstand –25 °C to +75 °C temperatures and IP67 conditions. Buyers needing a normally open output function or a longer sensing distance should consider other models. It is not designed for flush installation or AC supply voltages.

Verify 10–30 V DC Supply and Cable Routing

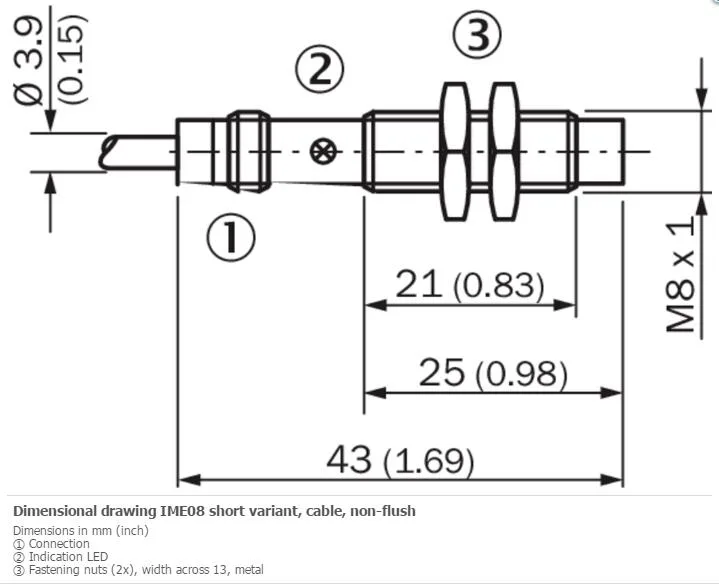

Confirm your control system accepts a 10 V DC to 30 V DC supply with PNP NC logic and can accommodate a 3.9 mm cable diameter. The unit draws 10 mA and switches up to 200 mA continuous current with short-circuit protection. Ensure the 43 mm housing length and 21 mm thread length suit your mounting bracket and that 5 Nm tightening torque is acceptable.

Highlights

  • PNP normally-closed output simplifies fail-safe wiring
  • 5 mm sensing range detects metal at close quarters
  • IP67 rating withstands water jets and dust ingress
  • 4 000 Hz switching frequency suits high-speed automation
  • Nickel-plated brass housing resists corrosion in harsh environments

Specifications

Brandsick
ModelSICK IME08-2N5POZW2K

Questions about this item

What supply voltage range must my system provide for the Sick IME08-2N5POZW2K sensor?

The sensor requires a DC supply between 10 V and 30 V with a maximum 10 % ripple.

Will the 2 m PVC cable on this M8 sensor reach my existing terminal block without an extension?

The cable is 2 m long with a 3.9 mm diameter and 0.25 mm² conductors, so measure your run against that length.

How can I verify the sensor is detecting correctly after mounting it in a non-flush M8 hole?

Apply a target at 2.5 mm; the NC PNP output should open, and the switching frequency supports up to 4,000 Hz for rapid cycling.
