Sick IME08-1B5NOZTOS inductive proximity sensor NPN
M8 flush-mount inductive sensor detects metal at 1.5 mm with NPN normally-closed output, 4,000 Hz switching, IP67 rating and 10–30 V DC supply
- NPN normally-closed output simplifies fail-safe wiring
- 5 mm sensing range detects metal at close range
- 4,000 Hz switching frequency supports high-speed automation
- IP67 enclosure rating resists dust and water ingress
- Nickel-plated brass housing withstands 30 g shock and vibration
Sick IME08-1B5NOZTOS inductive sensor
The Sick IME08-1B5NOZTOS is an inductive proximity sensor with NPN output and normally closed function. It operates on 10 V DC to 30 V DC supply voltage and detects metal targets at 1.5 mm sensing range. The sensor suits industrial automation and position monitoring tasks.
M8 flush installation with connector

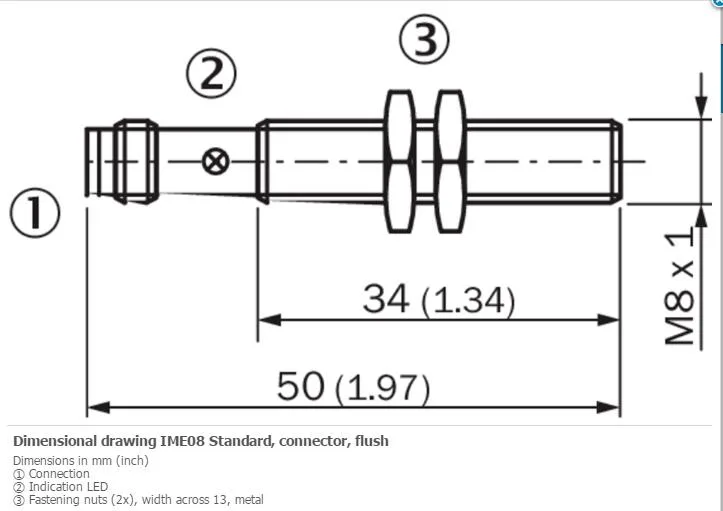

Flush mounting uses the M8 x 1 thread with 34 mm thread length and maximum 5 Nm tightening torque. A 3-pin M8 connector provides the DC 3-wire electrical wiring. The 100 ms time delay before availability and short-circuit protection help prevent false triggers during power-up.
Automation lines needing NC NPN output
This unit fits machines requiring a normally closed NPN signal in a compact Ø 8 mm metal housing rated IP67. Builders who need a normally open function, PNP output, longer sensing distance or a different thread size should look at other models.
Highlights
- NPN normally-closed output simplifies fail-safe wiring
- 5 mm sensing range detects metal at close range
- 4,000 Hz switching frequency supports high-speed automation
- IP67 enclosure rating resists dust and water ingress
- Nickel-plated brass housing withstands 30 g shock and vibration
Specifications
| Brand | SICK |
|---|---|
| Model | SICK IME08-1B5NOZTOS |
Questions about this item
How can I verify the sensor is operating correctly after installation?
Check that the NPN output switches within the 1.5 mm sensing range and that the yellow LED indicator toggles at the target distance.
What accessories are included and what must I source separately?
The sensor body with M8 thread and 3-pin M8 connector is supplied; a matching M8 cable or cordset is not included and must be purchased separately.
Which output type should I select for my PLC input card?
Choose the NPN normally-closed version (IME08-1B5NOZTOS) if your PLC requires a sinking input that is active when no metal target is present.
