Nickel-plated brass M12 cylindrical sensor, 75 mm long, IP67 rated

Sick

SICK IM12-04NDO-ZC1 M12 cylindrical sensor electrician tool

SKU CH-EE9G-Y4MNZ

M12 cylindrical inductive sensor with 4 mm range, IP67 enclosure and 10–30 V DC supply

  • 4 mm sensing range for reliable detection
  • M12 cylindrical thread enables quick installation
  • 1,500 Hz switching frequency supports fast processes
  • IP67 enclosure rating protects against dust and water
  • Nickel-plated brass housing resists corrosion and wear

SICK M12 inductive proximity sensor

The SICK IM12-04NDO-ZC1 is a cylindrical inductive sensor with M12 x 1 thread for industrial position detection. It offers a 4 mm sensing range and a safe sensing range of 3.24 mm. The non-flush mounting style suits metal detection tasks in automation and machine building. A 4-pin M12 male connector provides standard electrical wiring.

IP67 enclosure and DC 10–30 V supply

The nickel-plated brass housing meets IP67 rating for dust and water resistance. Supply voltage spans 10 V DC to 30 V DC with 10 % ripple tolerance. Voltage drop is 2.8 V at 100 mA continuous current. Off-state current stays at 0.8 mA with a 3 mA minimum load. Short-circuit and reverse polarity protection are integrated.

1 500 Hz switching with thermal stability

Switching frequency reaches 1 500 Hz for high-speed counting applications. Hysteresis ranges from 2 % to 10 % with reproducibility of 5 %. Temperature drift of the sensing range is limited to ±10 % across –25 °C to +70 °C. Shock resistance is rated at 30 g for 11 ms and vibration resistance at 10–55 Hz with 1 mm amplitude.

Highlights

  • 4 mm sensing range for reliable detection
  • M12 cylindrical thread enables quick installation
  • 1,500 Hz switching frequency supports fast processes
  • IP67 enclosure rating protects against dust and water
  • Nickel-plated brass housing resists corrosion and wear

Specifications

BrandSICK
ModelSICK IM12-04NDO-ZC1

Questions about this item

How do I install the M12 cylindrical sensor and what tightening mistake should I avoid?

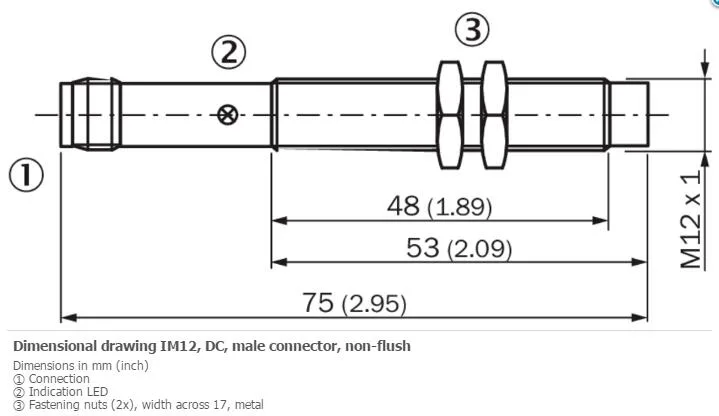

Mount the sensor using its M12 x 1 thread with a 48 mm thread length; do not exceed the 10 Nm maximum tightening torque to prevent housing damage.

What component will need replacement after extended operation in the –25 °C to +70 °C range?

The sensor is a sealed IP67 unit with nickel-plated brass housing and plastic sensing face; no user-serviceable parts are defined, so the entire device is replaced if output drifts beyond the ±10 % temperature specification.

Which limit appears first during continuous switching at 1,500 Hz?

The 2.8 V voltage drop across the DC 2-wire output and the 100 mA continuous current rating constrain the load before the 50 ms start-up delay or thermal limits become factors.
