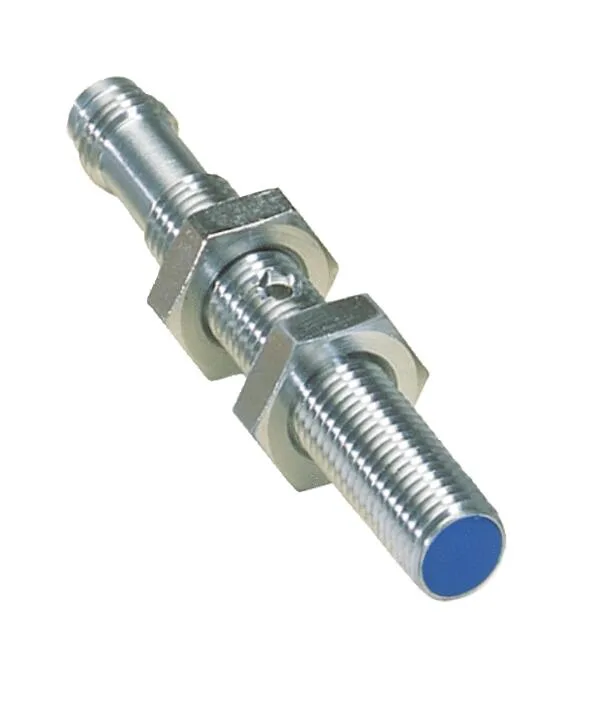

Cylindrical M8 inductive sensor, chrome-plated brass body, M8 3-pin connector, IP67 rating

Sick

Sick IM08-06NPS-ZT1 inductive proximity sensor PNP M8 6mm IP67

SKU CH-1H9G-CRGJB

An M8 inductive proximity sensor with 6 mm sensing range, PNP output, IP67 rating and triple sensing range

  • 6 mm sensing range detects metal without contact
  • PNP normally-open output suits standard 3-wire DC controls
  • M8 3-pin connector enables quick, tool-free wiring
  • IP67 metal housing withstands water, oil and shock
  • Triple sensing range extends reach in tight machine spaces

Sick M8 inductive sensor PNP

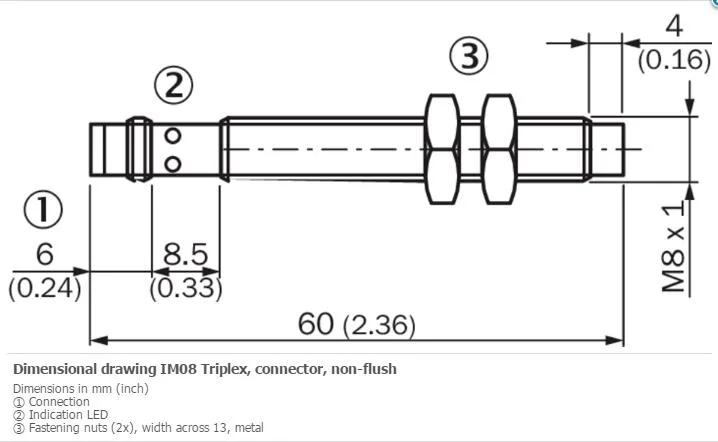

The Sick IM08-06NPS-ZT1 is a cylindrical inductive proximity sensor with an M8 x 1 thread and an 8 mm diameter housing. It provides a PNP normally-open output through a three-pin M8 connector. The sensor suits automation tasks that require non-flush mounting and a 6 mm nominal sensing range. It operates on a 10 to 30 V DC supply with a 200 mA continuous current rating.

Sustained operation at 500 Hz switching

The sensor maintains a 500 Hz switching frequency under continuous use, with hysteresis kept between 1 and 15 percent. Reproducibility is specified at 5 percent and temperature drift of the sensing range stays within ±10 percent. Short-circuit, reverse-polarity and power-up pulse protection guard the output during prolonged duty cycles. The chrome-plated brass housing and IP67 enclosure rating support reliable operation from –25 °C to +70 °C.

Practical limits of the DC 3-wire interface

The DC 3-wire interface delivers a maximum continuous current of 200 mA with a voltage drop below 2 V. Supply ripple must not exceed 20 percent and the sensor becomes ready 50 ms after power-up. Safe sensing distance is 4.86 mm, so targets must remain within this range for assured detection. The M8 connector and 4 Nm maximum tightening torque define the mechanical and electrical installation boundaries.

Highlights

  • 6 mm sensing range detects metal without contact
  • PNP normally-open output suits standard 3-wire DC controls
  • M8 3-pin connector enables quick, tool-free wiring
  • IP67 metal housing withstands water, oil and shock
  • Triple sensing range extends reach in tight machine spaces

Specifications

BrandSICK
ModelSICK IM08-06NPS-ZT1

Questions about this item

How much heat or power does the IM08-06NPS-ZT1 draw when it runs continuously?

It draws a maximum of 10 mA from a 10 V DC to 30 V DC supply with a voltage drop of 2 V and includes short-circuit, reverse-polarity and power-up pulse protection.

What connector and voltage must I already have to wire this sensor?

You need an M8 3-pin connector and a DC supply between 10 V and 30 V with a maximum 20 % ripple.

Will the M8 thread and 6 mm range work reliably next to older metal brackets or sensors?

The non-flush M8 x 1 housing needs a 6 mm sensing range with a 4.86 mm safe range; hysteresis is 1 % to 15 % and temperature drift ±10 % for stable operation near metal.
