Sick
Sick GTE6-P1212 Miniature Photoelectric Sensor PNP 10-30V DC 2m Cable
Miniature photoelectric sensor with 250 mm sensing range, PNP output, 10-30 V DC supply and 2 m PVC cable
- TypeTest Equipment
- Color/FinishRed
- Item Count1 pack
- Selling UnitBox
- Parts3 Years
- Labor1 Year

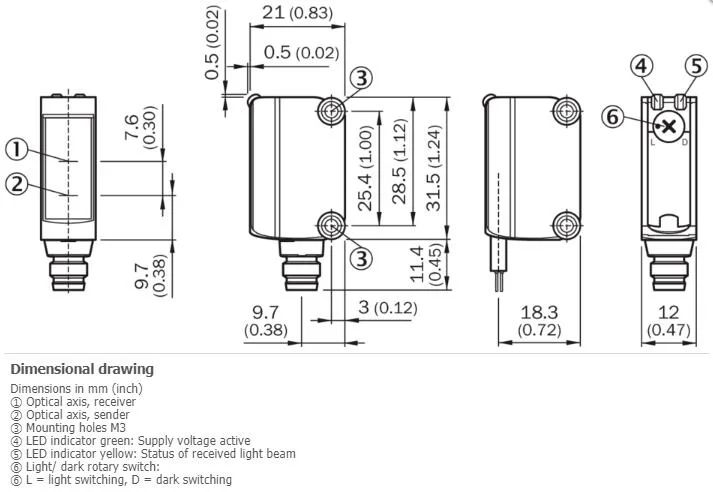

- Miniature 12 mm × 31.5 mm × 21 mm housing fits tight spaces
- PinPoint LED emits visible red 650 nm light for precise detection up to 300 mm
- PNP output with selectable light/dark switching handles 100 mA loads
- IP67-rated ABS/PC housing with PMMA optics withstands –25 °C to +55 °C

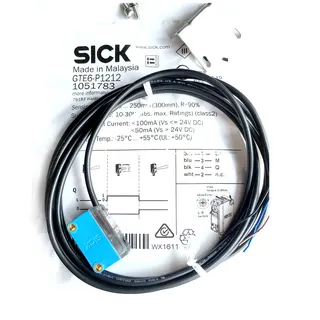

- Supplied 2 m PVC cable and stainless-steel 304 mounting bracket simplify installation
Miniature Photoelectric Sensor PNP 10-30V DC

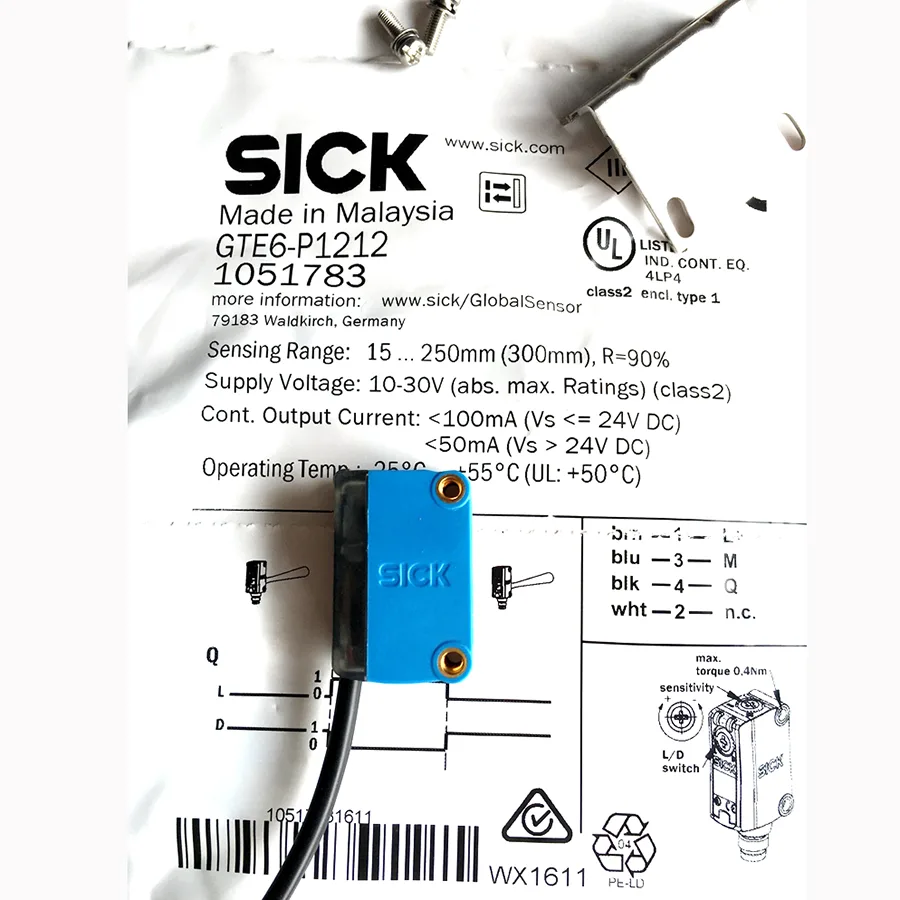

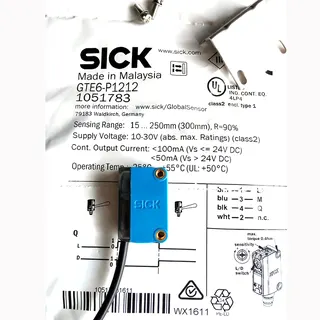

The Sick GTE6-P1212 is a miniature photoelectric proximity sensor with a PNP switching output and a 2 m PVC cable. It operates on a 10 to 30 V DC supply with a visible red PinPoint LED at 650 nm. The rectangular ABS/PC housing measures 12 mm x 31.5 mm x 21 mm and carries an IP67 enclosure rating. A stainless steel mounting bracket is included in the box.
Suits automated lines needing a compact 250 mm
This sensor suits automated lines needing a compact 250 mm sensing range with a 500 Hz switching frequency and light/dark selection via a mechanical spindle. It is not for applications that require a sensing distance beyond 300 mm or a supply voltage outside the 10 to 30 V DC window. Buyers who need a different output logic or a connector termination instead of a flying lead should look at something else.
PNP output with 100 mA maximum load current
The single specification that decides fit is the PNP output rated at 100 mA maximum load current with a response time under 1,250 ms. The sensor delivers a light spot of Ø 7 mm at 90 mm distance and draws 30 mA with circuit protection A, B and D. Verify that your control input accepts PNP HIGH/LOW levels at VS minus 3 V before installing.
Highlights
- Miniature 12 mm × 31.5 mm × 21 mm housing fits tight spaces
- PinPoint LED emits visible red 650 nm light for precise detection up to 300 mm
- PNP output with selectable light/dark switching handles 100 mA loads
- IP67-rated ABS/PC housing with PMMA optics withstands –25 °C to +55 °C
- Supplied 2 m PVC cable and stainless-steel 304 mounting bracket simplify installation
Specifications
| Brand | sick |
|---|---|
| Model | GTE6-P1212 |
| Type | Test Equipment |
| Color/Finish | Red |
| Item Count | 1 pack |
| Selling Unit | Box |
| Parts | 3 Years |
| Labor | 1 Year |
Questions about this item
What comes in the box and what must be purchased separately?
The package includes the sensor with a 2 m PVC cable and a stainless steel mounting bracket BEF-W100-A; no separate items are required for basic installation.
How do I choose between the available sensing ranges for this sensor?
This model offers a single fixed sensing range of 250 mm with a maximum of 300 mm, so no range selection is needed.
What does the 500 Hz switching frequency mean for real-world detection speed?
A 500 Hz switching frequency means the sensor can update its output up to 500 times per second, suitable for detecting objects on fast conveyors or rotating equipment.
