Cylindrical metal sensor with red LED, M18 thread, 2m cable

Sick

Sick GRTE18-P1112 Cylindrical Photoelectric Sensor PNP

SKU CH-BKTH-0791S

A cylindrical photoelectric proximity sensor with an M18 thread, 5 mm to 100 mm sensing range, visible red PinPoint LED, PNP complementary output and 2 m PVC cable

  • Visible red PinPoint LED for precise detection
  • Sensing range up to 115 mm with 8 mm light spot
  • PNP complementary output switches at 500 Hz
  • IP67 metal housing withstands –25 °C to +55 °C
  • 2 m PVC cable with 10–30 V DC supply

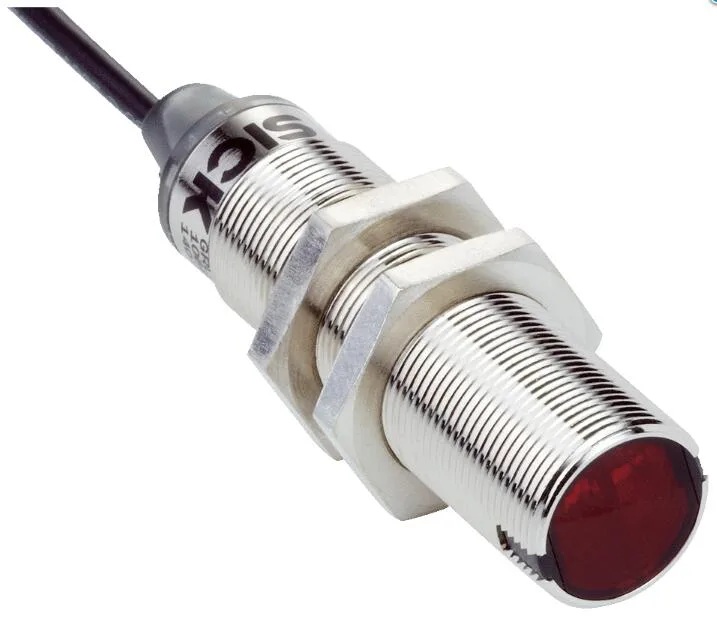

Sick GRTE18-P1112 cylindrical photoelectric sensor

The Sick GRTE18-P1112 is a cylindrical photoelectric proximity sensor designed for industrial detection tasks. It operates on a 10 V DC to 30 V DC supply and provides a PNP complementary output suitable for automation systems. The sensor uses a visible red PinPoint LED with a 650 nm wavelength for precise alignment.

Sensing range 3 mm to 115 mm

The maximum sensing range spans 3 mm to 115 mm, while the specified sensing range covers 5 mm to 100 mm. A potentiometer allows manual adjustment of the switching threshold for application-specific tuning. The sensor delivers a switching frequency of 500 Hz and a response time under 1,000 µs for reliable detection. It is not suited for applications requiring longer-range detection beyond 115 mm or higher switching speeds.

IP67 nickel-plated brass housing with 2 m PVC cable

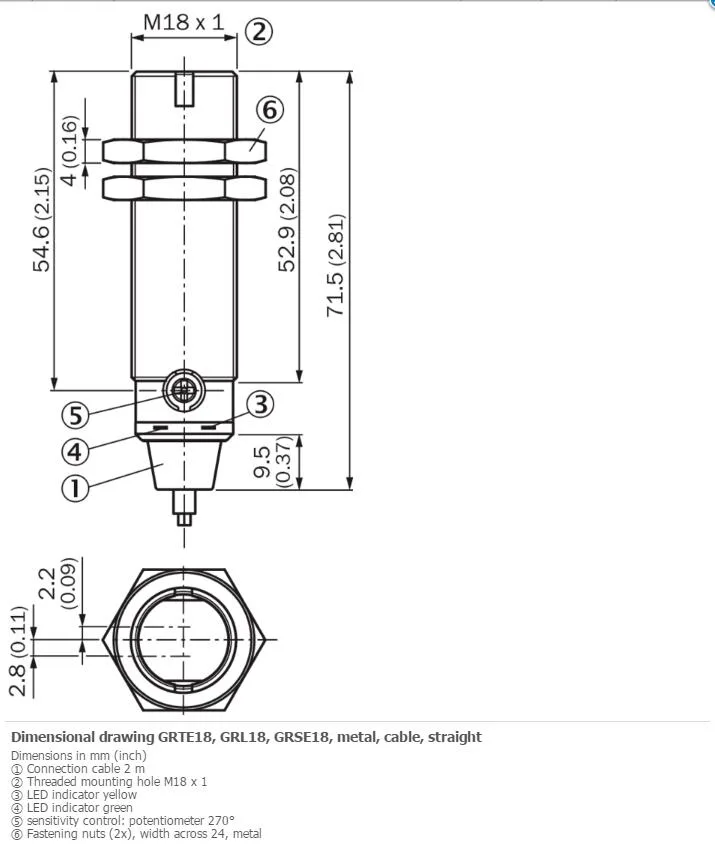

The housing combines nickel-plated brass and ABS with a PMMA optics cover, rated IP67 for dust and water protection. A 2 m, 4-wire PVC cable provides the connection, and two fastening nuts are supplied for M18 x 1 mounting. The sensor operates from –25 °C to +55 °C and meets EN 60947-5-2 EMC standards. Build quality supports demanding industrial environments but the fixed cable length may limit placement flexibility.

Highlights

  • Visible red PinPoint LED for precise detection
  • Sensing range up to 115 mm with 8 mm light spot
  • PNP complementary output switches at 500 Hz
  • IP67 metal housing withstands –25 °C to +55 °C
  • 2 m PVC cable with 10–30 V DC supply

Specifications

BrandSICK
ModelSICK GRTE18-P1112

Questions about this item

Will the M18 cylindrical sensor fit alongside my existing M18 mounts on the conveyor line?

Yes, the housing uses an M18 × 1 thread, so it shares the same mounting pattern as other M18 sensors you already have installed.

How can I verify the PinPoint LED is aligned correctly after wiring the 4-wire cable?

Turn the potentiometer until the visible red spot (Ø 8 mm at 100 mm) falls on the target; the complementary PNP output will then toggle cleanly at up to 500 Hz.

Does the box include a mounting bracket or just the two fastening nuts listed?

Only two fastening nuts are supplied; a separate mounting bracket must be purchased if your application requires one.
