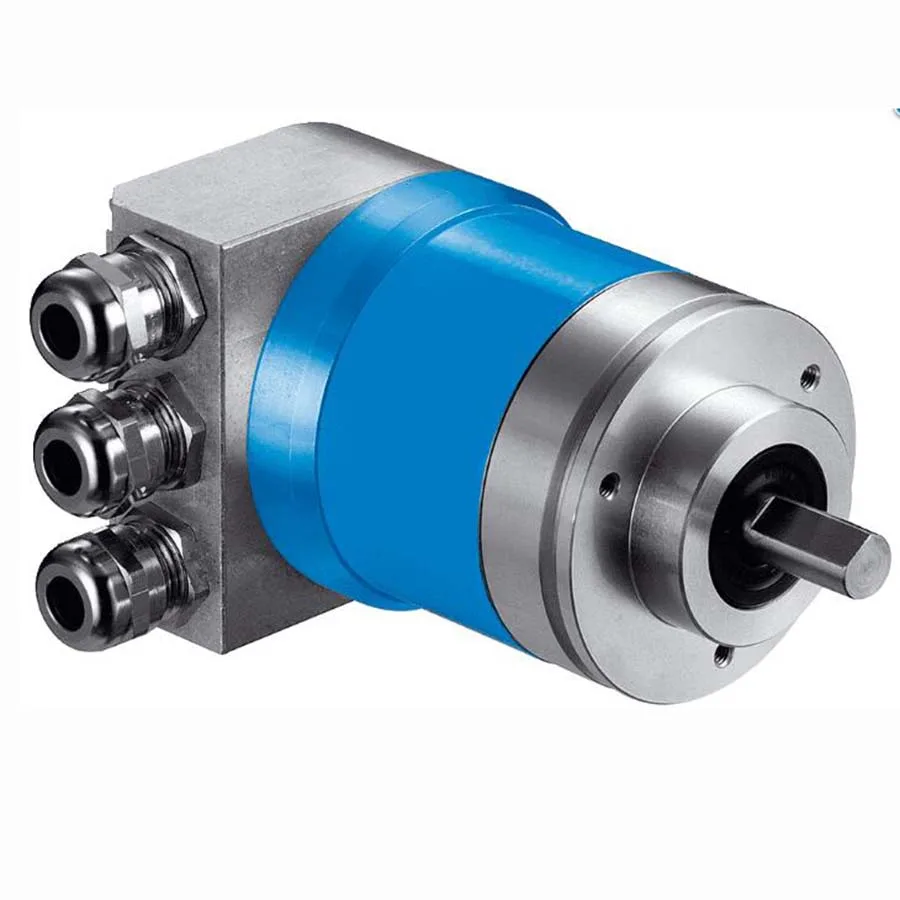

Cylindrical aluminium encoder with 6 mm solid shaft and servo flange

Sick

Sick DFS60E-S1AA01024 Incremental Encoder 1024 PPR

SKU CH-N3W1-GV5EV

Provides 1,024 pulses per revolution with ±0.3° accuracy, 9,000 rpm operating speed, and 6 mm solid shaft for precise position feedback

  • High-resolution feedback with 1024 pulses per revolution
  • Precise positioning within ±0.3° error limits
  • Fast startup ready in 40 ms initialization time
  • High-speed operation up to 9000 min⁻¹
  • Durable bearings rated for 3.6 x 10¹⁰ revolutions

Precision Motion Feedback

The Sick DFS60E-S1AA01024 incremental encoder delivers 1024 pulses per revolution for accurate position and speed feedback in industrial automation. Its solid shaft with servo flange suits machine builders and electricians integrating motion control into packaging, assembly or material-handling equipment.

Installation Verification

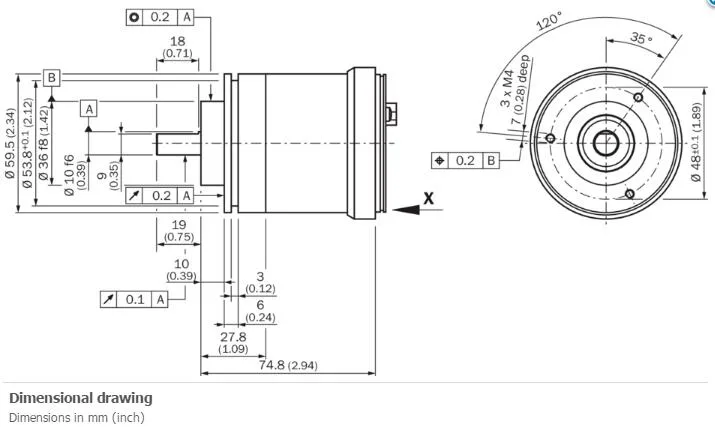

Confirm the 6 mm x 10 mm solid shaft matches your coupling and that the servo flange aligns with your mounting pattern. Ensure the application stays within 80 N radial and 40 N axial shaft loading, and that operating speed does not exceed 9000 min⁻¹.

Mechanical Integration Benefits

The aluminum die-cast housing and aluminum flange keep weight at 0.3 kg while providing robust protection. Low start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm reduce drive load, and the 6.2 gcm² rotor inertia supports rapid acceleration up to 500000 rad/s².

Highlights

  • High-resolution feedback with 1024 pulses per revolution
  • Precise positioning within ±0.3° error limits
  • Fast startup ready in 40 ms initialization time
  • High-speed operation up to 9000 min⁻¹
  • Durable bearings rated for 3.6 x 10¹⁰ revolutions

Specifications

BrandSICK
ModelSICK DFS60E-S1AA01024

Questions about this item

Does the Sick DFS60E-S1AA01024 encoder include mounting hardware or cables in the box?

The encoder ships as the standalone unit with a 6 mm solid shaft and servo flange. Mounting screws, couplings and connection cables are not included and must be sourced separately.

When should I choose the 1,024 PPR version over other line counts?

Select the 1,024 pulses-per-revolution model when your motion controller needs that exact resolution for positioning accuracy of ±0.3° and a 90° electronic measuring step.

What does the 9,000 min⁻¹ speed rating mean for continuous operation?

The encoder can run continuously at up to 9,000 rpm with a start-up torque of 0.5 Ncm and operating torque of 0.3 Ncm at 20 °C, while handling 80 N radial and 40 N axial shaft loads.
