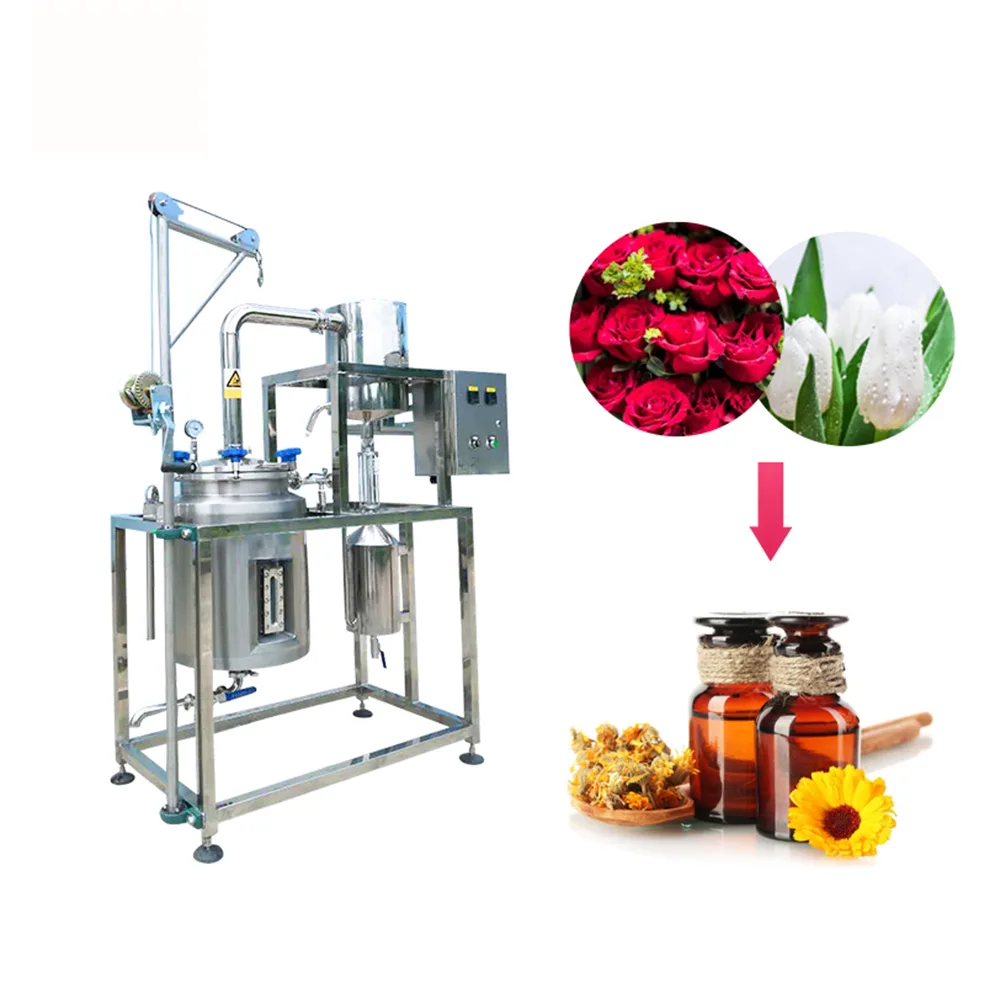

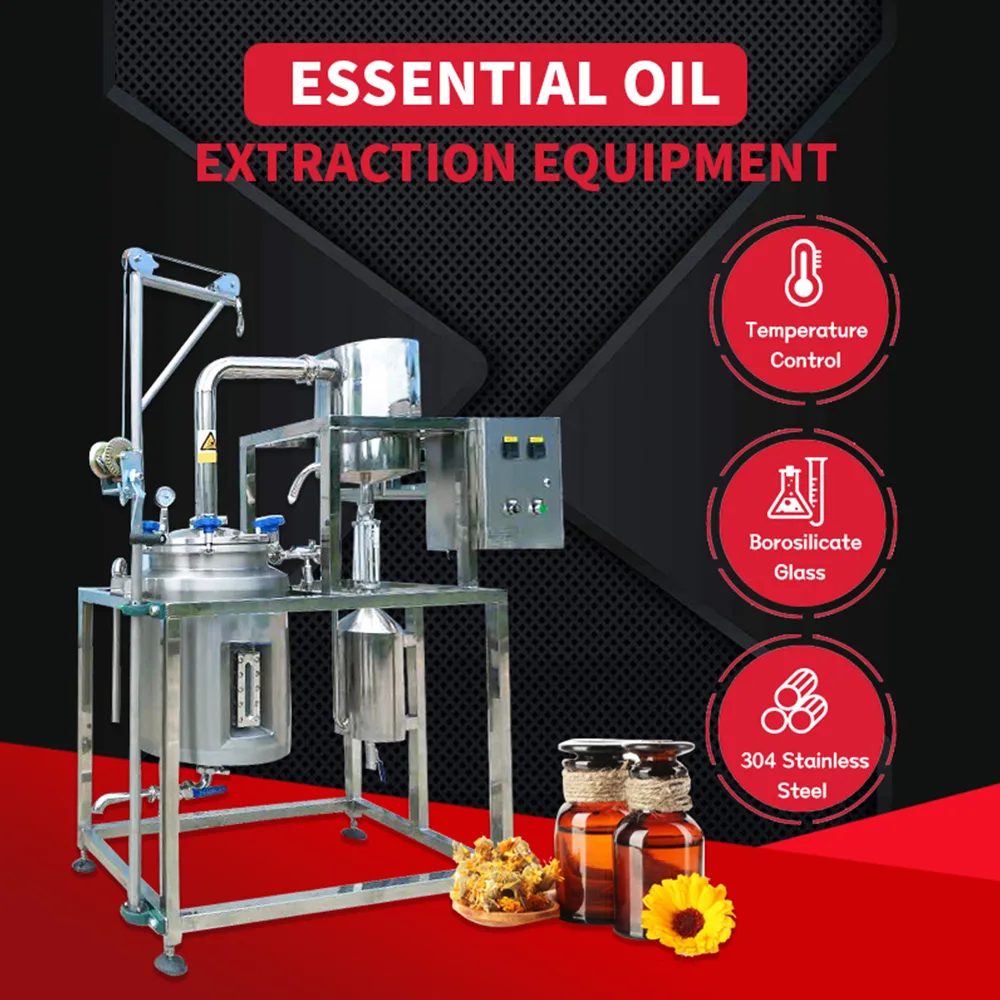

Stainless steel 20L essential oil extractor with glass condenser and separator

HNZXIB

HNZXIB 20L Essential Oil Extractor 110V Stainless Steel

SKU CH-MZ0D-F8FJV

A 20-litre steam-distillation extractor that reaches 100 °C via indirect oil heating, uses a boride-glass and SUS304 condenser with a laboratory-grade glass oil-water separator.

  • Voltage110V
  • 20 L tank processes large batches of plant material
  • 3 kW heat-transfer oil system reaches 100 °C at normal pressure
  • Boride glass and SUS304 condenser delivers efficient oil-water separation
  • Multi-layer distillation basket with open top simplifies loading and cleaning
  • Automatic control system enables single-operator steam distillation runs

20L Essential Oil Extractor

The HNZXIB extractor uses steam distillation to process plant branches, flowers, grasses and animal materials with higher oil content. Its 20L effective tank volume suits small-batch laboratory or pilot production. One operator can manage the full cycle thanks to the automatic control system and open-top distillation basket design.

Check 110V supply and bench space

The unit requires a 110V single-phase connection for its 3KW electric heating system. Allow roughly one square metre of floor area for the main body and condenser assembly. Verify that your ventilation and drainage can handle steam condensate and heat-transfer oil vapour during extended runs.

Indirect heating to 100°C at normal pressure

Heat-transfer oil brings the jacket to 100°C without pressurising the extraction chamber beyond 0.3-0.4Mpa interlayer pressure. The boride glass and SUS304 condenser provides 0.5 cubic metre of condensing area for efficient vapour recovery. Two-stage filtration and a glass oil-water separator keep noise and carry-over low during normal operation.

Highlights

  • 20 L tank processes large batches of plant material
  • 3 kW heat-transfer oil system reaches 100 °C at normal pressure
  • Boride glass and SUS304 condenser delivers efficient oil-water separation
  • Multi-layer distillation basket with open top simplifies loading and cleaning
  • Automatic control system enables single-operator steam distillation runs

Specifications

Voltage110V

Questions about this item

What comes with the 20 L stainless-steel extractor and what must I source separately?

The unit includes the 20 L extraction tank, 3 kW heat-transfer-oil heating system, boride-glass and SUS304 condenser, glass oil-water separator, two-stage filtration and glass liquid-level gauge. You will need to supply heat-transfer oil, plant material, water and a 110 V power circuit.

Should I choose the drip-irrigation or short-distance reflux condenser form for my 20 L system?

Both condenser forms are built into the same 0.5 m² condensing area; drip-irrigation gives a steady distillate flow for routine runs, while short-distance reflux improves recovery of high-boiling constituents — select based on the oil type you process most.

How does the 3 kW heating rating translate to actual distillation time with a full 20 L charge?

The 3 kW heat-transfer-oil heater brings the 0.28 m² jacketed tank to 100 °C under normal pressure; a full 20 L water-steam batch typically reaches boiling and maintains steady vapour production for the duration of the run.
