Stainless steel 30L essential oil extractor with glass condenser and separator

HNZXIB

HNZXIB 30L Essential Oil Extractor 110V Stainless Steel

SKU CH-EJ5H-N1TAG

Stainless-steam distillation system with a 30 L extraction tank, 6 kW oil-bath heating to 100 °C and glass oil-water separator for plant essential oils

  • Voltage110V
  • 30 L capacity processes large plant batches in one run
  • 6 kW electric heating with heat-transfer oil reaches 100 °C quickly and safely
  • Glass multi-tube condenser and lab-grade separator deliver high-purity oil collection
  • SUS 304 stainless-steel construction resists corrosion for long service life
  • Automatic control system lets one person operate the full extraction cycle

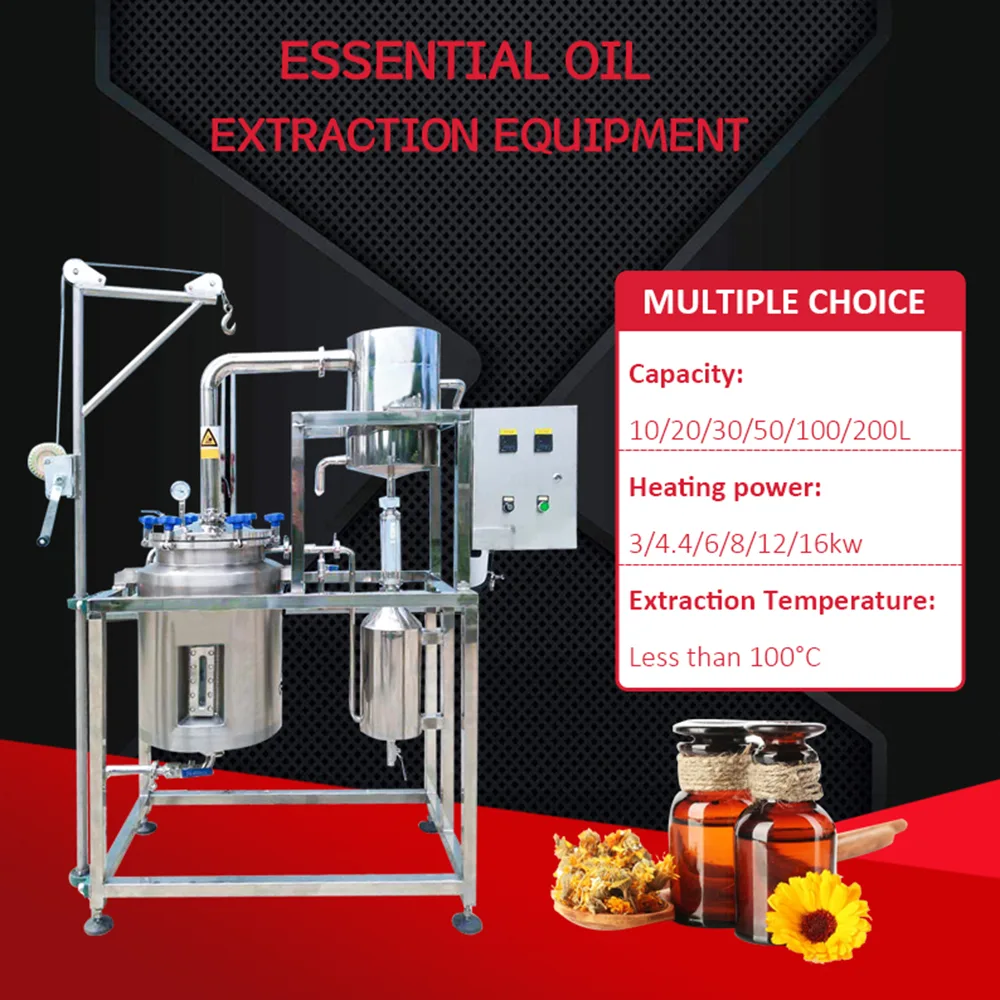

30L Steam Distillation System

The HNZXIB extractor processes up to 30 litres of plant material per batch using steam distillation. It is built from SUS304 stainless steel and boride glass for laboratory-grade purity. The unit runs on 110V power with a 6kW electric heating system that brings heat-transfer oil to 100°C at normal pressure. One operator can manage the full cycle from loading to oil collection.

Thermal Performance and Power

Indirect heating through heat-transfer oil reaches 100°C quickly while keeping the vessel at normal pressure. The extraction tank provides 0.33 cubic metre of heating area and the condenser offers 0.72 cubic metre of condensing area for efficient vapour recovery. Electric heating draws 6kW total. Interlayer pressure is rated at 0.3-0.4Mpa with an optional vacuum capability to -0.08Mpa.

Bundled Separation and Filtration

A laboratory-grade glass multi-pipe condenser and a dedicated boride glass oil-water separator simplify the collection of essential oil from the cooled azeotrope. The built-in layered distillation basket features an open-top design for easy loading of flowers, grasses or animal materials and straightforward cleaning. A two-stage filtration device and glass liquid-level indicator complete the integrated workflow.

Highlights

  • 30 L capacity processes large plant batches in one run
  • 6 kW electric heating with heat-transfer oil reaches 100 °C quickly and safely
  • Glass multi-tube condenser and lab-grade separator deliver high-purity oil collection
  • SUS 304 stainless-steel construction resists corrosion for long service life
  • Automatic control system lets one person operate the full extraction cycle

Specifications

Voltage110V

Questions about this item

How do I install the 30L extractor and what step is often missed?

Place the unit on a level surface, connect to 110V power, fill the heat-conducting oil jacket, load plant material into the open-top distillation basket, then start the automatic control system; the step often missed is verifying the interlayer pressure stays within 0.3-0.4Mpa before beginning distillation.

What maintenance or replacement will the 30L extractor need later?

Clean the boride glass condenser tubes and oil-water separator after each run, inspect the SUS304 stainless steel seals and the two-stage filtration device regularly, and replace the heat-conducting oil periodically to maintain the 100°C heating capability.

What limit appears first during sustained use of the 30L extractor?

The 6KW electric heating power and 0.33 cubic meter heating area set the maximum steam generation rate, while the 0.72 cubic meter condenser area limits continuous vapour handling, so the condensation capacity typically becomes the bottleneck first.
