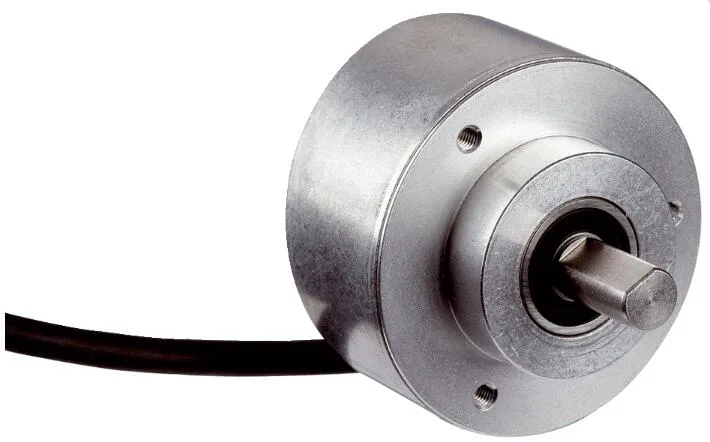

Sick DFS60B incremental encoder, aluminum body, 10 mm solid shaft, 1.5 m cable

Sick

Sick DFS60B-S4EK01024 Incremental Encoder 1024 PPR 10 mm Shaft

SKU CH-VEMN-G2J7W

Incremental encoder delivers 1024 pulses per revolution with a 10 mm solid shaft and 1.5 m cable

  • 1,024 pulses per revolution for precise positioning
  • 10 V to 32 V HTL push-pull interface for broad compatibility
  • 5 m universal 8-wire cable simplifies installation
  • 9,000 rpm maximum speed suits high-speed applications
  • 300-year MTTFd rating ensures long-term reliability

Sick DFS60B Incremental Encoder 1024 PPR

The Sick DFS60B-S4EK01024 is an incremental encoder delivering 1,024 pulses per revolution with a measuring step deviation of ±0.008° and error limits of ±0.05°. It suits motion-control applications that require precise position feedback and a reference signal gated logically with channels A and B at 90° electrically.

Check supply voltage and shaft fit before ordering

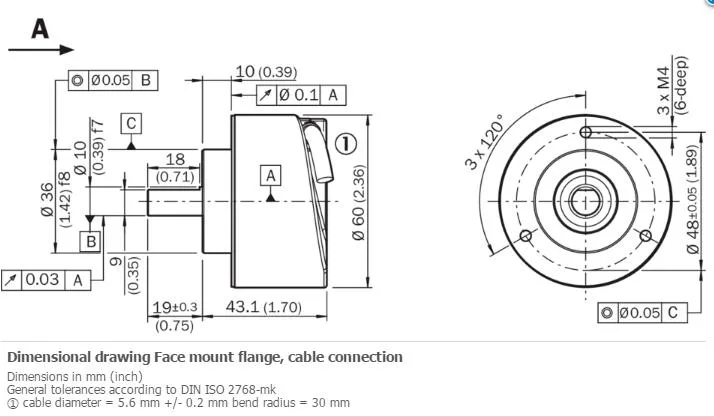

The encoder operates on a 10 V to 32 V HTL push-pull interface with an 8-wire universal cable of 1.5 m length. Verify that your controller accepts HTL levels and that the 10 mm by 19 mm solid shaft with face-mount flange matches your mechanical coupling and mounting pattern.

Low power draw and robust bearings for continuous

Power consumption is 0.5 W without load and operating current is 40 mA, while outputs are short-circuit protected with reverse polarity protection. The unit runs at up to 9,000 min⁻¹ with a bearing lifetime of 3.6 x 10^10 revolutions, aluminium housing and flange construction, and an operating torque of 0.3 Ncm at +20 °C.

Highlights

  • 1,024 pulses per revolution for precise positioning
  • 10 V to 32 V HTL push-pull interface for broad compatibility
  • 5 m universal 8-wire cable simplifies installation
  • 9,000 rpm maximum speed suits high-speed applications
  • 300-year MTTFd rating ensures long-term reliability

Specifications

BrandSICK
ModelSICK DFS60B-S4EK01024

Questions about this item

Does the SICK DFS60B-S4EK01024 ship with a mounting flange or coupling, or must those be purchased separately?

The encoder has a face-mount flange built into the aluminum housing and a 10 mm x 19 mm solid shaft; no separate flange or coupling is included in the box.

Why choose the 1024 pulses-per-revolution version instead of a lower or higher count?

1024 ppr gives a measuring step of 90° electronically with an error limit of ±0.05° and a maximum output frequency of 600 kHz, suitable for speed and position feedback up to 9000 min⁻¹.

What does the 600 kHz output frequency mean for cable length and controller input in a real installation?

At 600 kHz the encoder can transmit 1024 pulses per revolution at full 9000 min⁻¹ speed; the 1.5 m 8-wire cable and 10–32 V HTL push-pull outputs connect directly to most PLC counter inputs without extra line drivers.
