Compact silver aluminium hot plate with OLED screen and Type‑C port, 55 mm square heating area

SEQURE

SEQURE T55 25V 95W 55×55mm soldering hot plate

SKU CH-R5D7-9SDAK MPN T55

A 55 × 55 mm aluminium hot plate reaches 280 °C in 87 seconds at 95 W for PCB pre-heat and component rework

  • TypeSoldering & Desoldering Stations
  • Size/Dimensions55*60*37MM
  • Volts25V
  • MaterialAluminum
  • Melting Range50°C-280°C
  • Fast heat-up to 280 °C in 87 seconds using 65 W 25.2 V PD supply
  • Compact 55 × 55 mm aluminum plate gives quick, even heat across the work area
  • OLED display plus two rear buttons let you set temperature and time without menus
  • Preset temps, timed heating, auto-sleep and firmware upgrade cover bench and field jobs
  • Slip-resistant silicone base keeps the 55 × 60 × 37 mm unit steady during rework

Portable aluminium preheat station

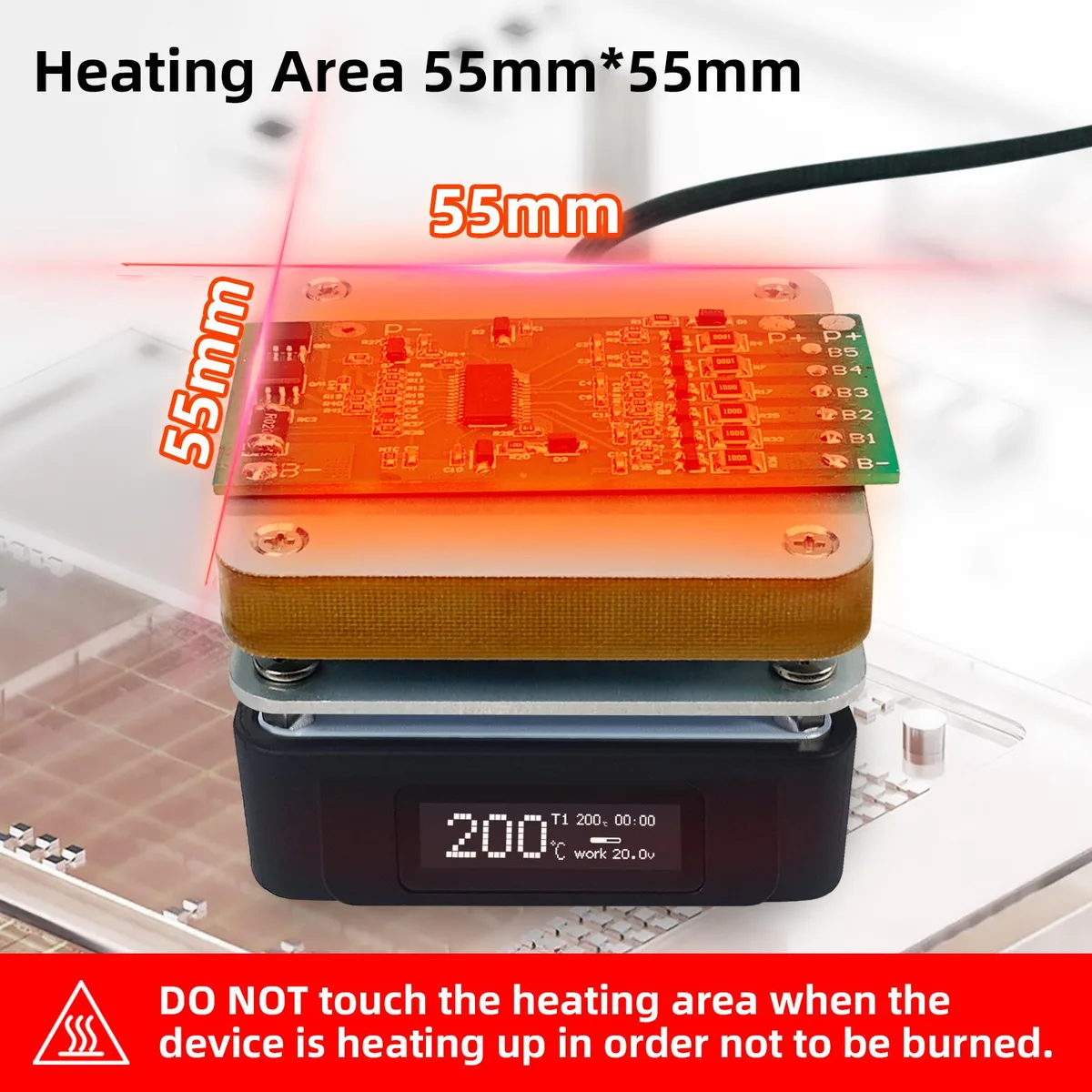

The SEQURE T55 is a compact aluminium hot plate with a 55 by 55 millimetre heating area. It reaches 280 degrees Celsius from 30 degrees in 87 seconds when powered by a 65 watt PD supply at 25.2 volts. The working range spans 50 to 280 degrees Celsius for board preheating and component rework.

Installation and common issues

Connect the Type-C port to a PD source of 19 to 25 volts, at least three amps at 20 volts, or use QC and DC modes. The OLED screen and rear buttons control temperature presets, timed heating and sleep functions. An uneven work surface can tilt the slip-resistant silicone base and reduce thermal contact.

Compatibility checks before ordering

Verify that your power supply delivers 19 to 25 volts over USB-C Power Delivery and can sustain 95 watts output. The unit measures 55 by 60 by 37 millimetres, so confirm bench space for the controller and plate. Firmware upgrades require a computer connection; ensure you have a spare USB port and cable.

Highlights

  • Fast heat-up to 280 °C in 87 seconds using 65 W 25.2 V PD supply
  • Compact 55 × 55 mm aluminum plate gives quick, even heat across the work area
  • OLED display plus two rear buttons let you set temperature and time without menus
  • Preset temps, timed heating, auto-sleep and firmware upgrade cover bench and field jobs
  • Slip-resistant silicone base keeps the 55 × 60 × 37 mm unit steady during rework

Specifications

BrandSEQURE
ModelT55
Part NumberT55
TypeSoldering & Desoldering Stations
Size/Dimensions55*60*37MM
Volts25V
MaterialAluminum
Melting Range50°C-280°C

Questions about this item

How do I verify the T55 hot plate is heating correctly after connecting a PD power supply?

Connect a PD 20V ≥3A or 25.2V 65W supply via the Type-C port; the OLED should show the temperature climbing from 30°C to 280°C in about 87 seconds across the 55×55mm aluminum plate.

What comes with the T55 controller and what must I buy separately?

The box contains the T55 controller with its 55×55mm aluminum heating plate, OLED display, Type-C interface and silicone base; a 19–25V PD, QC or DC power supply is not included and must be purchased separately.

Which power-supply specification should I choose for the T55 to reach full 95W output?

Use a USB-C PD supply rated at 20V 3A minimum or 25.2V 65W; lower voltages such as 19V will limit the maximum heating power.
