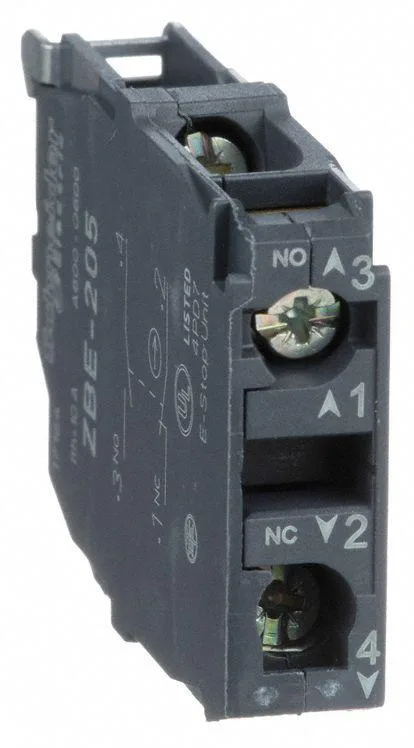

Black rectangular contact block with screw terminals and 22mm mounting collar

Schneider Electric

Schneider Electric ZBE205 Contact Block 1NO+1NC 22mm

SKU CH-47QZ-GAPWJ

22 mm contact block with one normally-open and one normally-closed circuit rated 10 A at 600 V AC for ZB4 or ZB5 operators

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size22 mm
  • 10 A at 600 V AC switching capacity
  • 1NO + 1NC slow-break contact form
  • 22 mm mounting fits ZB4 and ZB5 operators
  • Screw-clamp terminals for secure wiring
  • Certified to IEC 60947 and UL 508 standards

22 mm Contact Block for Industrial Controls

The Schneider Electric ZBE205 is a 22 mm contact block designed for use with ZB4 or ZB5 chrome and plastic operators. It provides a single normally open and a single normally closed contact in a momentary, break-before-make action. The unit is suited for panel builders and maintenance teams assembling or repairing industrial control stations.

10 A at 600 V AC rating with A600/Q600 designation

The block carries a contact rating of 10 A at 600 V AC, matching NEMA A600 and Q600 designations for heavy-duty pilot duty. This capacity covers typical push-button, selector-switch and indicator-light circuits in motor-starter and relay-logic panels. It is not intended for direct switching of large motor loads or high-inrush devices beyond the rated pilot-duty limits.

Screw-clamp terminals meeting IEC and UL standards

Connections are made through screw-clamp terminals that accept solid or stranded conductors. The component complies with CSA C22.2 No. 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1 and UL 508. These standards define the electrical, mechanical and thermal limits of the block, so the installation must remain within the rated voltage, current and environmental conditions they specify.

Highlights

  • 10 A at 600 V AC switching capacity
  • 1NO + 1NC slow-break contact form
  • 22 mm mounting fits ZB4 and ZB5 operators
  • Screw-clamp terminals for secure wiring
  • Certified to IEC 60947 and UL 508 standards

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size22 mm

Questions about this item

Will the 22 mm ZBE205 contact block fit my existing ZB4 or ZB5 operators?

Yes, the 22 mm ZBE205 is designed for use with both ZB4 and ZB5 chrome or plastic operators.

How can I verify the 1NO+1NC contacts are operating correctly after installation?

The block provides a momentary break-before-make action; actuate the operator and confirm the normally open contact closes while the normally closed contact opens.

Does the ZBE205 include mounting screws or must I order them separately?

The contact block uses screw/clamp terminals for wiring; mounting hardware for the operator is not included and must be sourced separately.
