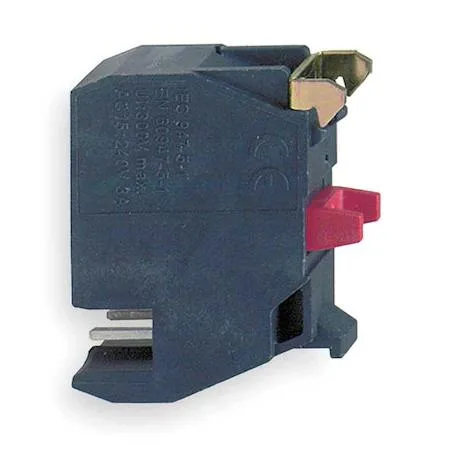

Schneider Electric ZBE1024 contact block 22 mm black

Schneider Electric

Schneider Electric ZBE1024 Contact Block 1NC 22 mm Black

SKU CH-693H-BNHYE

A 22 mm normally-closed contact block rated 10 A at 250 V AC for ZB4 or ZB5 operators

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Reliable switching with 10 A contact rating at 250 V AC
  • Fits 22 mm panel cut-outs for standard installations
  • Compatible with ZB4 and ZB5 operator series
  • Momentary action suits push-button control circuits
  • Meets IEC 60947, CSA 22.2 No. 14 and UL 508 standards

Contact block for ZB4 and ZB5 operators

This Schneider Electric contact block provides a single normally closed circuit rated at 10 A and 250 V AC. It is designed for industrial control panels using 22 mm mounting holes and suits machinery builders, panel integrators and maintenance engineers who need a reliable momentary action switch element.

Plug-in connector simplifies wiring

The block uses a plug-in terminal connection that slides onto compatible chrome or plastic operators without soldering. Installation errors usually come from mismatching the operator series, so verify the operator is a ZB4 or ZB5 type before fitting the block into the 22 mm cut-out.

Check operator series and standards compliance

Confirm the existing operator range is ZB4 or ZB5 and that the panel cut-out matches the 22 mm size. The block meets CSA C 22.2 No. 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1 and UL 508 with NEMA A600/Q600 designation. Buyers needing a normally open contact or a different mounting diameter should select another part.

Highlights

  • Reliable switching with 10 A contact rating at 250 V AC
  • Fits 22 mm panel cut-outs for standard installations
  • Compatible with ZB4 and ZB5 operator series
  • Momentary action suits push-button control circuits
  • Meets IEC 60947, CSA 22.2 No. 14 and UL 508 standards

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How can I confirm the contact block is operating correctly after installation?

Press the associated ZB4 or ZB5 operator and verify the normally closed circuit opens, breaking the 10 A at 250 V AC control circuit as expected.

What comes with the ZBE1024 and what must be purchased separately?

The contact block itself is supplied; a compatible ZB4 or ZB5 operator and mounting hardware are not included and must be ordered separately.

Which version should I choose for a standard 22 mm panel cut-out with a momentary action?

This ZBE1024 is the 22 mm, 1NC, momentary-action block designed for ZB4 or ZB5 operators in a 22 mm cut-out.
