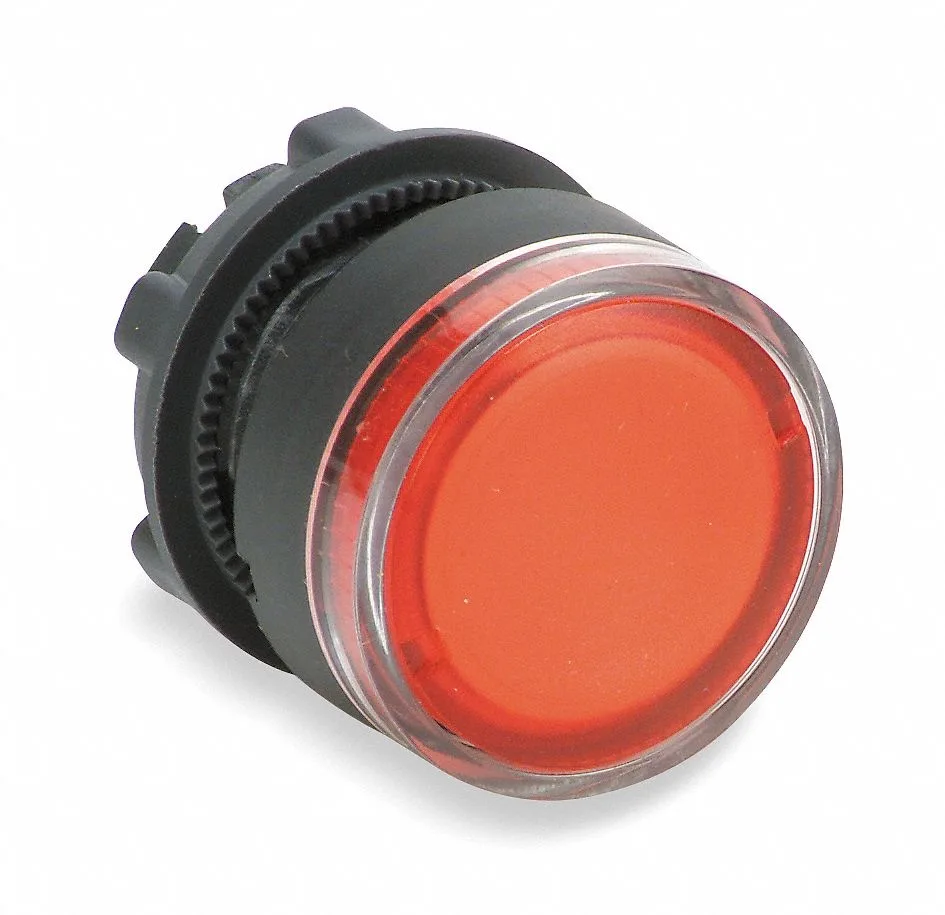

Red flush illuminated push button 22 mm plastic bezel

Schneider Electric

Schneider Electric ZB5AW34 Illuminated Push Button 22 mm Red

SKU CH-GQAG-8APZB

22 mm red flush push button with momentary action, IP66 and NEMA 4X/13 sealing, certified to IEC 60947 and UL 508 standards

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Momentary flush action for precise control
  • 22 mm diameter fits standard panel cut-outs
  • Red illuminated head gives clear status indication
  • IP66 and NEMA 4X ratings resist dust and water jets
  • Complies with IEC 60947 and UL 508 standards

Illuminated Push Button 22 mm Red

The Schneider Electric ZB5AW34 is a flush illuminated push button operator designed for industrial control panels. It features a 22 mm mounting diameter with momentary action and a red plastic head. The unit carries NEMA 13 and 4X ratings alongside IP66 ingress protection for demanding environments.

Panel builders and maintenance engineers

This operator suits panel builders and maintenance engineers who need a compact, illuminated momentary switch with verified industrial certifications. It is not intended for buyers who require a maintained latching action or a larger mounting footprint than 22 mm.

NEMA 13 and 4X with IP66 sealing

The decisive specification is the combined NEMA 13 and 4X rating with IP66 sealing, which confirms suitability for indoor and outdoor industrial enclosures exposed to dust, water jets and oil. Compliance with IEC 60947-5-1, UL 508 and CSA C22.2 No. 14 supports global panel acceptance.

Highlights

  • Momentary flush action for precise control
  • 22 mm diameter fits standard panel cut-outs
  • Red illuminated head gives clear status indication
  • IP66 and NEMA 4X ratings resist dust and water jets
  • Complies with IEC 60947 and UL 508 standards

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

Does this 22 mm illuminated push button need a separate contact block and LED module to function?

Yes, the ZB5AW34 is the operator head only; you must add a compatible contact block and an LED light module that fit the 22 mm mounting to complete the circuit.

Can I mount this red flush button in an existing panel cut-out rated for IP66 and NEMA 4X?

The operator carries IP66 and NEMA 13, 4X ratings itself, so it will maintain that sealing level provided the panel cut-out matches the 22 mm size and the gasket is seated correctly.

How do I verify the momentary action and illumination are working after wiring the contact block and LED module?

Press the red flush head — the contact should change state only while held, and the LED should light steadily when the control circuit energises the light module.
