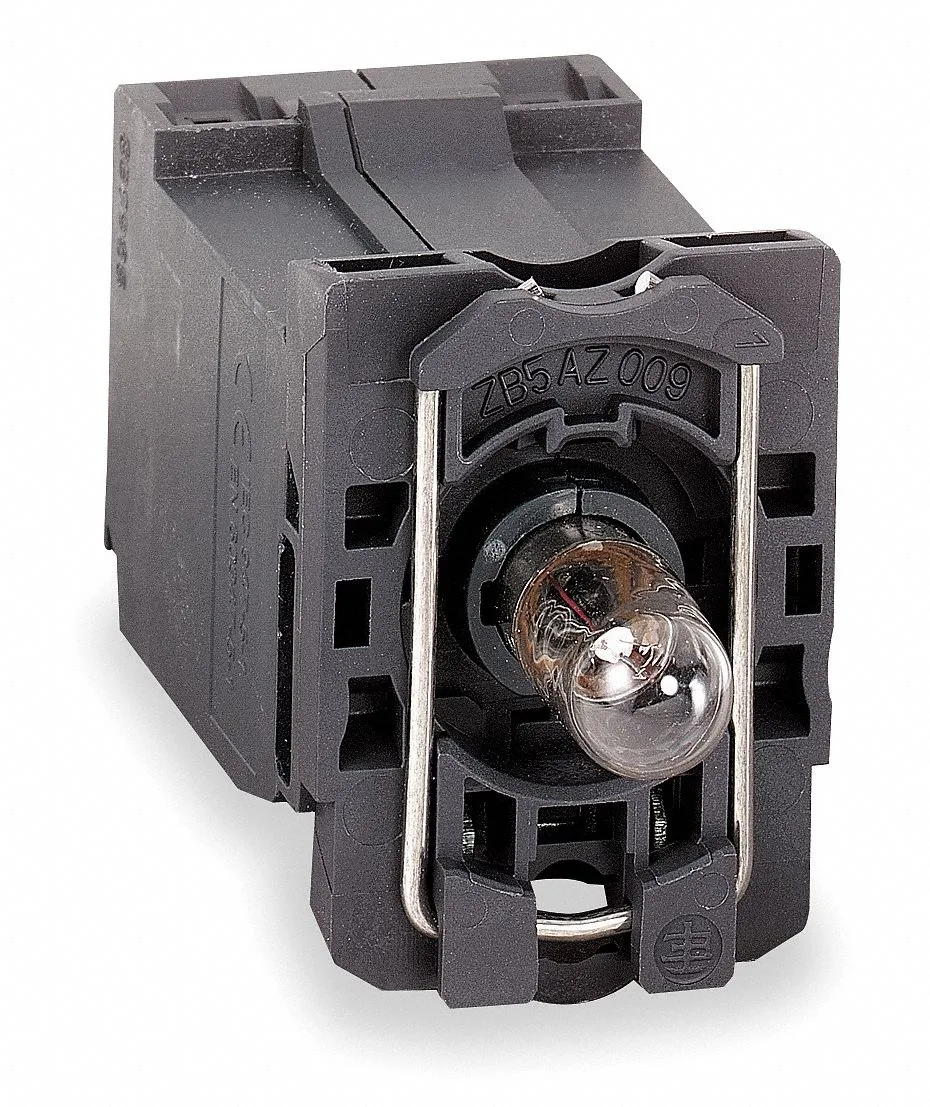

Schneider Electric 22 mm incandescent lamp module, plastic body with screw terminals

Schneider Electric

Schneider Electric ZB5AV6 22 mm incandescent lamp module 250 V AC

SKU CH-M6FQ-36ND8

22 mm incandescent lamp module rated 250 V AC for illuminated operators and pilot lights

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 250 V AC rating powers industrial illuminated operators
  • 22 mm diameter fits standard XB4 and XB5 pilot-light cut-outs
  • Screw-clamp terminals give secure, tool-friendly wiring
  • Full-voltage incandescent module works directly on 240 V AC supplies
  • Meets CSA 22.2 No. 14, UL 508 and IEC 60947 standards for control-panel compliance

22 mm Incandescent Lamp Module

The Schneider Electric ZB5AV6 is a 22 mm full-voltage incandescent lamp module rated for 250 V AC. It mounts in XB4 and XB5 illuminated operators and pilot lights using screw-clamp terminals. The plastic housing carries NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings. It meets CSA C 22.2 No. 14, UL 508 and several EN/IEC 60947 standards.

Replaces worn pilot-light lamps

This module replaces a failed incandescent lamp in existing XB4 or XB5 control stations. The jump is worth it when the original lamp has burnt out and a direct, standards-compliant replacement is required. It restores the original brightness and voltage rating without rewiring the operator.

Suits maintenance of legacy panels

The module suits electricians maintaining older Schneider Electric control panels that specify incandescent indication. It is not for installations that demand LED efficiency, lower heat output or a different voltage rating. Buyers needing IP-rated LED modules or alternative lamp voltages should look at other product lines.

Highlights

  • 250 V AC rating powers industrial illuminated operators
  • 22 mm diameter fits standard XB4 and XB5 pilot-light cut-outs
  • Screw-clamp terminals give secure, tool-friendly wiring
  • Full-voltage incandescent module works directly on 240 V AC supplies
  • Meets CSA 22.2 No. 14, UL 508 and IEC 60947 standards for control-panel compliance

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

What panel cut-out does the 22 mm lamp module require?

The module is built for a standard 22 mm cut-out used by XB4 and XB5 illuminated operators and pilot lights.

How is the 250 V AC incandescent lamp module wired, and what common mistake should be avoided?

Connections use screw-clamp terminals; the frequent error is over-tightening the screws and damaging the plastic housing.

When will the incandescent lamp inside the 22 mm module need replacement?

Replace the lamp when it no longer illuminates at the rated 240 V AC / 250 V AC supply; the module itself is a full-voltage type with no separate driver to service.
