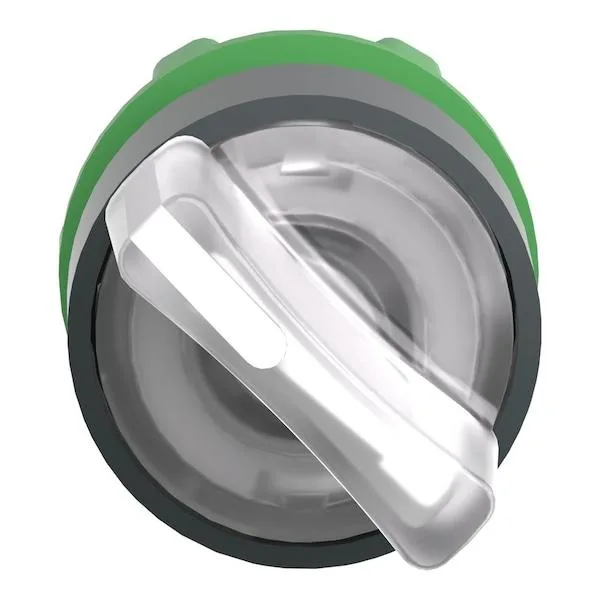

White short-handled illuminated selector switch 22mm plastic bezel black

Schneider Electric

Schneider Electric ZB5AK1213 22mm Illuminated Selector Switch White 2-Position

SKU CH-53A3-HYBCH

White illuminated selector switch, 22 mm mounting, two maintained positions, IP66/IP67/IP69K sealed for industrial panels

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size22 mm
  • White illuminated lever for clear status indication
  • 22 mm mounting fits standard industrial panels
  • IP66 IP67 IP69 IP69K sealing resists water and dust ingress
  • Maintained two-position action holds selected state without spring return
  • Complies with UL 508 CSA C22.2 No. 14 IEC 60947 standards

Schneider Electric ZB5AK1213 Selector Switch

The Schneider Electric ZB5AK1213 is a 22 mm illuminated selector switch designed for industrial control panels. Its white lever operator and black plastic bezel suit machinery requiring clear visual status indication. The two-position maintained action supports simple on-off or mode-change functions. Panel builders and maintenance engineers working to IEC or UL standards will find it compatible with standard 22 mm cut-outs.

Upgrade from non-illuminated

Replacing a non-illuminated switch adds immediate visual confirmation of the selected position, reducing operator error in low-light environments. Moving from a momentary to this maintained-action switch eliminates the need for separate latching relays in basic control circuits. The jump is worth it when the application demands both tactile feedback and continuous status lighting without extra components.

Fits 22 mm panel cut-outs

The plastic operator head and bezel mount directly into standard 22 mm openings, secured by the integral locking nut. NEMA 1 2 3 4 4X 13 and IP66 IP67 IP69 IP69K ratings protect the contacts against dust, water jets and high-pressure wash-down. No cam is included, so the installer selects the contact block configuration that matches the required circuit logic. The switch frees up panel space by combining selection and indication in one device.

Highlights

  • White illuminated lever for clear status indication
  • 22 mm mounting fits standard industrial panels
  • IP66 IP67 IP69 IP69K sealing resists water and dust ingress
  • Maintained two-position action holds selected state without spring return
  • Complies with UL 508 CSA C22.2 No. 14 IEC 60947 standards

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size22 mm

Questions about this item

What panel cut-out diameter does the 22 mm Schneider Electric ZB5AK1213 selector switch require?

The switch mounts in a standard 22 mm panel cut-out; the plastic bezel and operator head are designed for that exact diameter.

Which wiring step is most often missed when installing the maintained two-position illuminated switch?

Connecting the lamp supply to the dedicated illumination terminals is frequently overlooked; the selector action itself uses separate contact blocks.

When should the white plastic operator head be replaced on this IP66/IP67/IP69K switch?

Replace the head if the white lever cracks, discolours, or no longer returns positively to either maintained position after prolonged exposure.
