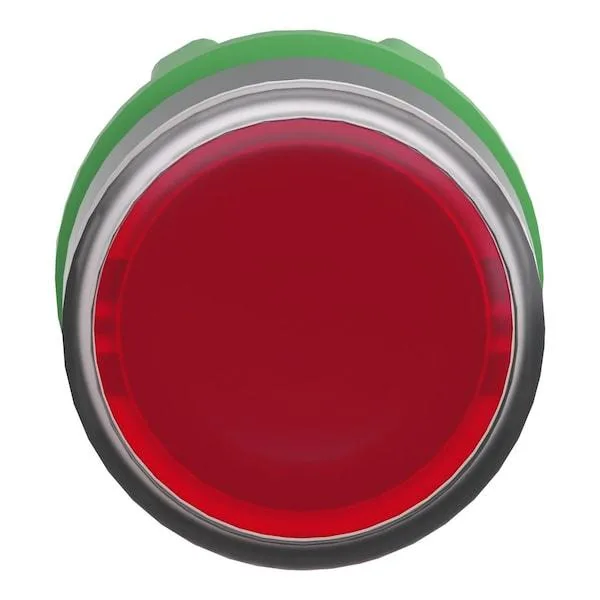

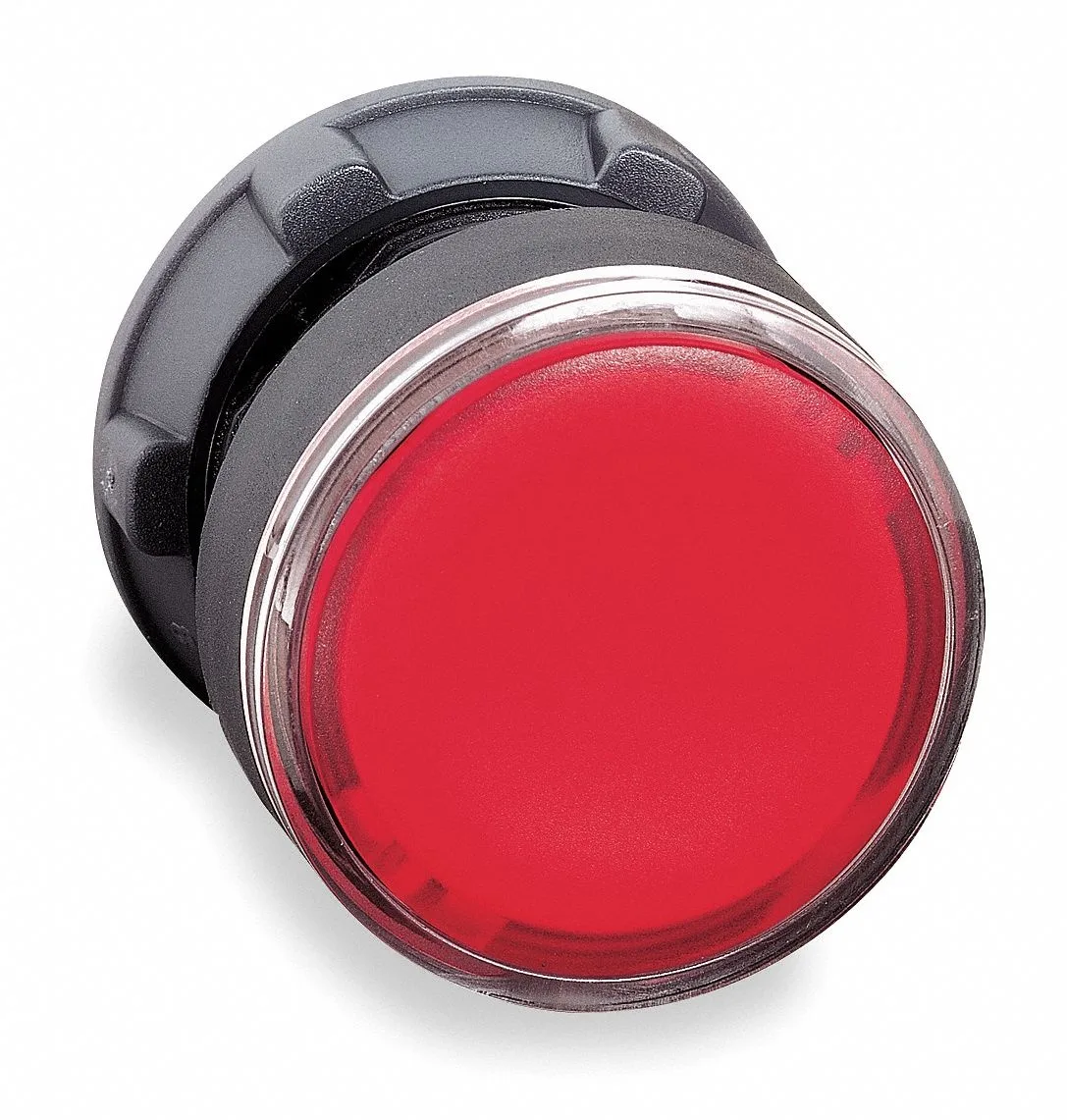

Red 22 mm flush illuminated push button plastic operator

Schneider Electric

Schneider Electric ZB5AH043 22 mm Illuminated Push Button Red

SKU CH-XCAY-9PVH9

A 22 mm red illuminated push button rated IP66 and NEMA 4X for industrial control panels

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Flush red button gives clear visual status
  • 22 mm cut-out fits standard panel layouts
  • IP66 and NEMA 4X/13 ratings resist dust and water jets
  • Maintained action stays set until pressed again
  • Certified to IEC 60947 and UL 508 standards

Industrial Control Operator

The Schneider Electric ZB5AH043 is a 22 mm illuminated push button operator designed for industrial electrical panels. It suits engineers and maintenance teams building or servicing automation systems that require a maintained-action flush button with a red indicator.

Environmental Ratings

The unit carries NEMA 13 and 4X ratings plus IP66 ingress protection, so it resists dust, water jets and oil in normal industrial environments. Its plastic head, bezel and body meet IEC 60529 and ISO 20653 sealing standards without active cooling or audible noise.

Panel Integration

The 22 mm mounting size fits standard cut-outs in control cabinets and machine consoles. Compliance with EN/IEC 60947-1, 60947-5-1, 60947-5-4, 60947-5-5, UL 508 and CSA C22.2 No. 14 eases approvals, while REACH and RoHS conformity removes restricted-substance concerns for global projects.

Highlights

  • Flush red button gives clear visual status
  • 22 mm cut-out fits standard panel layouts
  • IP66 and NEMA 4X/13 ratings resist dust and water jets
  • Maintained action stays set until pressed again
  • Certified to IEC 60947 and UL 508 standards

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How do I install the ZB5AH043 in a 22 mm panel cutout and what is the common mistake?

Insert the operator through the 22 mm hole from the front, then tighten the locking nut on the rear. The step often missed is securing the nut to the specified torque so the IP66 seal remains effective.

Which part of the red illuminated push button will need replacement first under normal use?

The internal lamp or LED module behind the red plastic head is the typical wear item; the plastic head, bezel and base are rated for long mechanical life and do not require scheduled replacement.

What environmental limit is reached first when the button is used continuously in a wet, dusty area?

The IP66 rating protects against powerful water jets and dust ingress; exceeding the NEMA 4X or IP66 pressure or temperature limits would be the first constraint under sustained harsh exposure.
