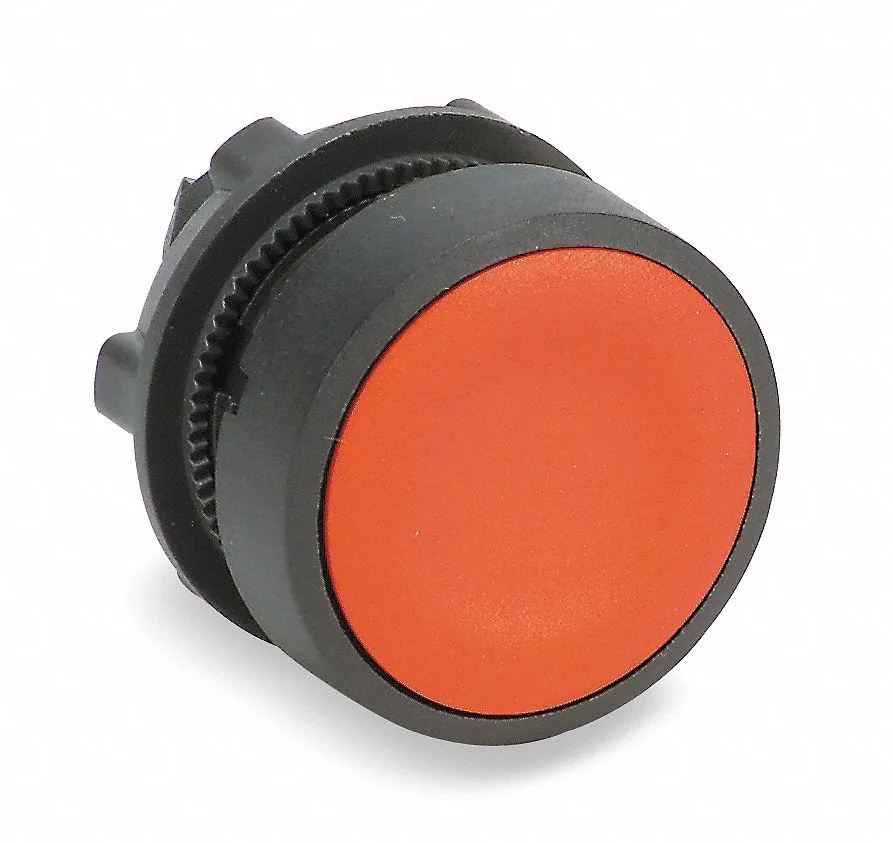

Red flush push button operator, 22 mm diameter, plastic construction

Schneider Electric

Schneider Electric ZB5AH04 22 mm Red Push Button

SKU CH-27C3-QEQHE

A 22 mm red flush push button with maintained action, IP66 and NEMA 4X ratings for industrial control panels

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Reliable operation in harsh environments with IP66 and NEMA 4X ratings
  • Secure panel fit using standard 22 mm mounting diameter
  • Maintained flush action stays activated until pressed again
  • Compliance with IEC 60947 and UL 508 industrial standards
  • Plastic construction meets RoHS and REACH substance restrictions

Schneider Electric 22 mm Red Push Button

The Schneider Electric ZB5AH04 is a 22 mm flush push button operator designed for industrial control panels. It suits engineers and maintenance teams who need a maintained-action button with a red plastic head for emergency-stop or status-indicator duties. The plastic bezel and head resist corrosion in indoor and protected outdoor enclosures. It mounts in a standard 22 mm cut-out without additional adapters.

Thermals noise and power draw

As a passive mechanical operator the button generates no heat and draws no electrical power itself. Actuation force is purely mechanical so acoustic output is limited to a quiet click at the contact block. The plastic construction does not conduct heat from adjacent components. No cooling or power budget allowances are required for this device.

NEMA and IP ratings decide fit

The operator carries NEMA 1, 2, 3, 4, 4X and 13 ratings plus IP66 ingress protection. These ratings determine whether the button survives wash-down, oil splash or outdoor exposure in a given enclosure. Buyers who need higher-pressure wash-down ratings or a different colour code should look elsewhere.

Highlights

  • Reliable operation in harsh environments with IP66 and NEMA 4X ratings
  • Secure panel fit using standard 22 mm mounting diameter
  • Maintained flush action stays activated until pressed again
  • Compliance with IEC 60947 and UL 508 industrial standards
  • Plastic construction meets RoHS and REACH substance restrictions

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How do I mount the 22 mm push button and what is the common wiring mistake?

Install the operator into a 22 mm panel cut-out and secure with the locking nut; the frequent error is omitting the contact block that snaps onto the back, leaving the button mechanically functional but electrically dead.

Which parts will need replacement after extended service?

The plastic head and bezel can yellow or crack from UV and chemical exposure, and the internal contact block may wear after high cycle counts; both are replaceable without removing the operator from the panel.

What environmental limit is reached first during continuous industrial use?

The IP66 and NEMA 4X seals resist water and dust, but the plastic head will degrade from prolonged UV or aggressive chemicals before the sealing performance fails.
