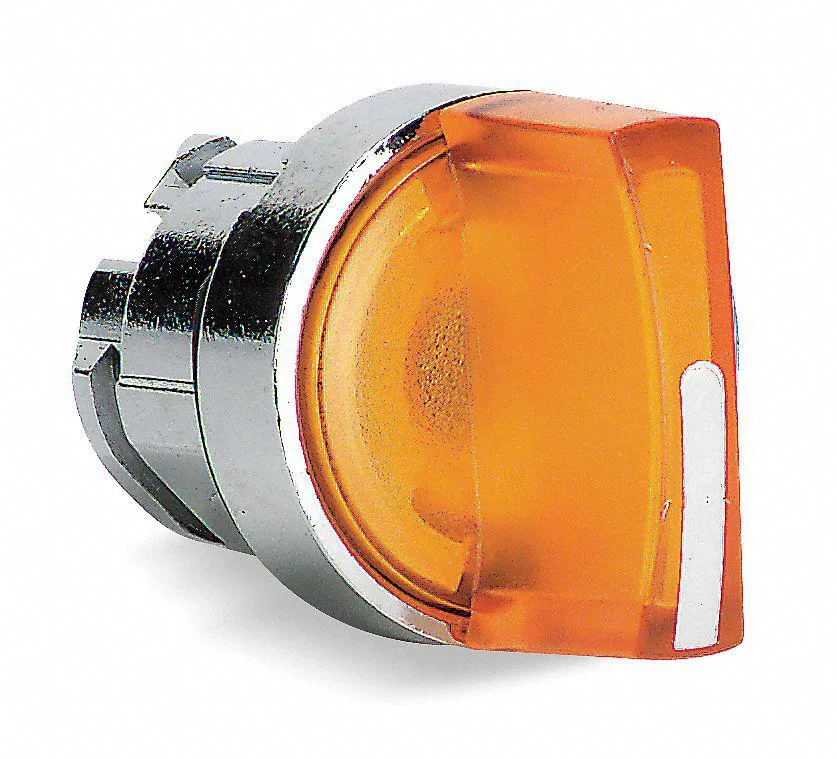

Yellow illuminated selector switch, 22 mm, lever operator, chrome bezel

Schneider Electric

Schneider Electric ZB4BK1753 Illuminated Selector Switch 3 Position 22 mm Yellow

SKU CH-JK7V-R8JHT

A 22 mm yellow illuminated selector switch with three positions and IP65 protection for industrial panels

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size22 mm
  • Illuminated operator gives clear status at a glance
  • Three-position lever selects momentary or maintained modes
  • 22 mm cut-out fits standard panel layouts
  • IP65 and NEMA 1, 2, 3, 4, 13 ratings protect against dust and water
  • Yellow aluminium/zinc head resists corrosion in harsh environments

Illuminated Selector Switch 22 mm

The Schneider Electric ZB4BK1753 is a three-position illuminated selector switch designed for 22 mm panel cut-outs. Its yellow aluminium and zinc alloy operator head provides clear visual status in industrial control panels. Rated NEMA 1, 2, 3, 4 and 13 with IP65 protection, it suits demanding environments where dust and water ingress are concerns. The momentary, maintained and maintained action sequence supports distinct control logic steps.

Replaces Non-Illuminated or Two-Position Units

This switch upgrades panels that previously used non-illuminated operators or two-position selectors needing a third state. The integrated LED lamp type improves operator awareness in low-light conditions without requiring a separate indicator. The jump is worth it when a process demands a clear middle position and visible confirmation at the point of operation. The metal construction and chrome bezel withstand repeated actuation in heavy-use stations.

Fits 22 mm Panels with Separate Lamp Module

Installation requires a standard 22 mm mounting hole and a separately sourced lamp module to power the illumination. The operator accepts lever-type actuation and includes no cam, simplifying front-of-panel assembly. Its NEMA and IP ratings free the enclosure designer from adding extra seals for the operator cut-out. The unit leaves the choice of lamp voltage and colour to the system integrator.

Highlights

  • Illuminated operator gives clear status at a glance
  • Three-position lever selects momentary or maintained modes
  • 22 mm cut-out fits standard panel layouts
  • IP65 and NEMA 1, 2, 3, 4, 13 ratings protect against dust and water
  • Yellow aluminium/zinc head resists corrosion in harsh environments

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size22 mm

Questions about this item

What panel cut-out does the 22 mm illuminated selector switch need?

The operator requires a standard 22 mm panel cut-out and mounts with the zinc bezel and metal body for a secure fit.

How is the LED lamp module installed in the ZB4BK1753?

The lamp module is not included; insert a compatible 22 mm LED module into the operator base until it clicks, ensuring correct polarity before tightening the bezel.

Which parts need replacement if the yellow lever or LED fails?

The yellow aluminium/zinc alloy lever is integral to the operator head; if the LED fails, replace only the separate lamp module, as the switch body is rated IP65 and NEMA 1, 2, 3, 4, 13.
