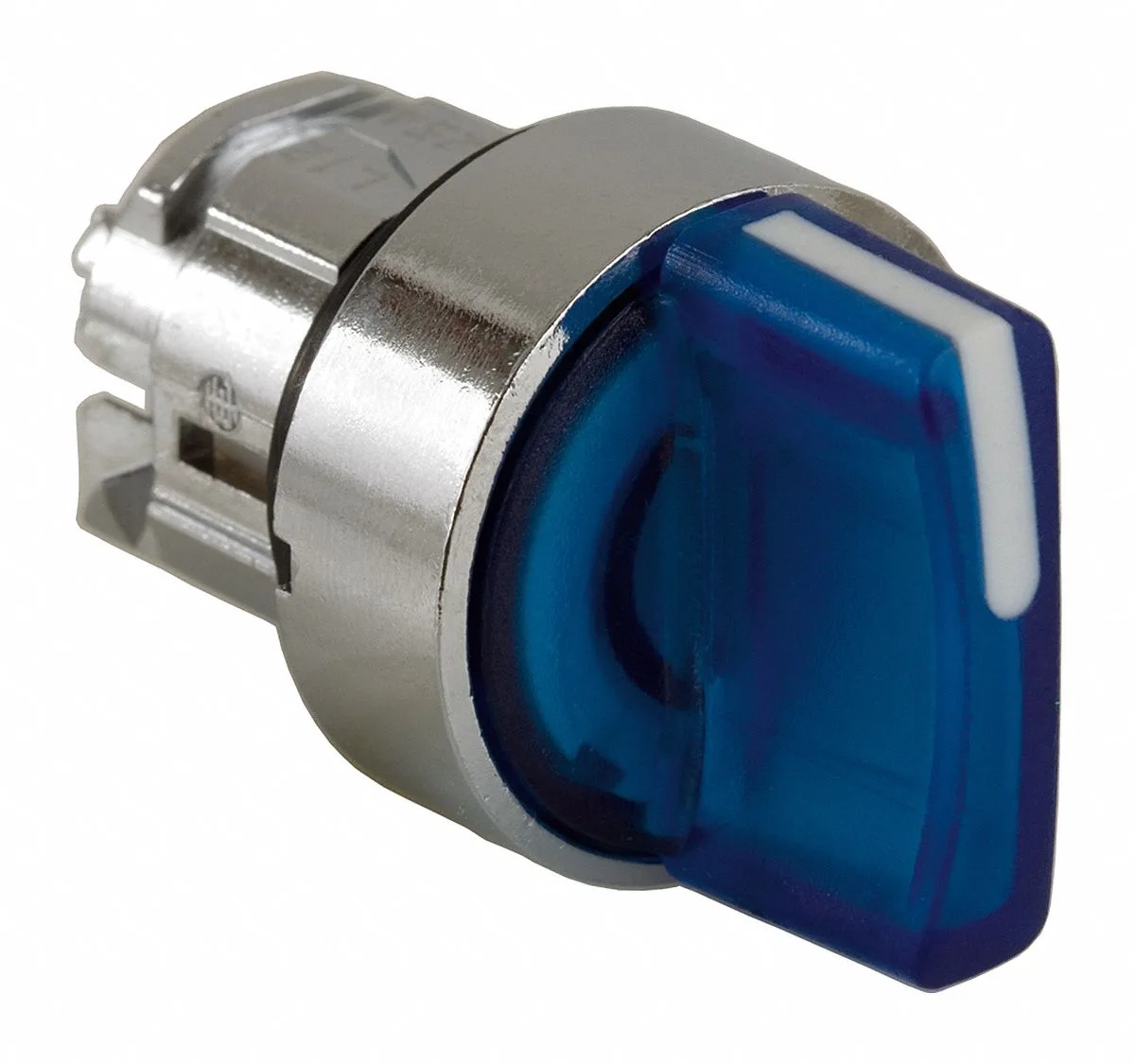

Blue illuminated selector switch with short chrome lever on 22 mm plastic body

Schneider Electric

Schneider Electric ZB4BK1563 22 mm Illuminated Selector Switch Blue 3-Position

SKU CH-6PM9-6G0BZ

A 22 mm illuminated blue selector switch with three positions and IP66, IP67, IP69, IP69K protection

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size22 mm
  • Blue illuminated selector for clear status indication
  • 22 mm mounting fits standard industrial panels
  • Three-position momentary/maintained/momentary action for flexible control
  • IP66, IP67, IP69 and IP69K ratings withstand harsh environments
  • Meets CSA 22.2 No. 14, IEC 60947 and UL 508 standards

Industrial Selector Switch 22 mm

The Schneider Electric ZB4BK1563 is a 22 mm illuminated selector switch designed for industrial control panels. It suits operators who need clear visual status indication in manufacturing or process environments. The blue LED illumination and three-position action support momentary and maintained functions. Panel builders requiring NEMA and IP rated components will find it compatible.

Upgrade from Basic Toggle or Two-Position Units

This switch replaces simple on-off toggles or two-position selectors when a third state is required for sequences such as hand-off-auto. The jump is worth it when the application demands both maintained and momentary action in one device. NEMA 1, 2, 3, 4, 13 and IP66, IP67, IP69, IP69K ratings allow direct substitution in wash-down or outdoor cabinets. Standards compliance covers CSA C22.2 No. 14, EN/IEC 60947 series, UL 508 and JIS C8201.

Straightforward 22 mm Panel Mount Installation

The 22 mm cut-out matches industry standard drilling, so no special tools are needed beyond a standard hole punch. The short lever operator and chrome-plated metal bezel fit flush without additional adapters. Common issues include wiring the illuminated circuit to the wrong voltage or exceeding the contact block rating. Ensure the cam configuration matches the required momentary-maintained-momentary sequence before tightening the locking nut.

Highlights

  • Blue illuminated selector for clear status indication
  • 22 mm mounting fits standard industrial panels
  • Three-position momentary/maintained/momentary action for flexible control
  • IP66, IP67, IP69 and IP69K ratings withstand harsh environments
  • Meets CSA 22.2 No. 14, IEC 60947 and UL 508 standards

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size22 mm

Questions about this item

What is the mounting hole diameter for the ZB4BK1563 selector switch?

The switch mounts in a standard 22 mm panel cut-out, matching the operator size given in the specifications.

Which wiring step is most often missed when installing the ZB4BK1563?

The cam is not included, so you must supply and fit the correct cam for the desired momentary-maintained-momentary action before wiring the contact blocks.

What ingress-protection ratings apply to the ZB4BK1563 operator head?

The head meets IP66, IP67, IP69 and IP69K, plus NEMA 1, 2, 3, 4 and 13 for dust, water and high-pressure wash-down.
