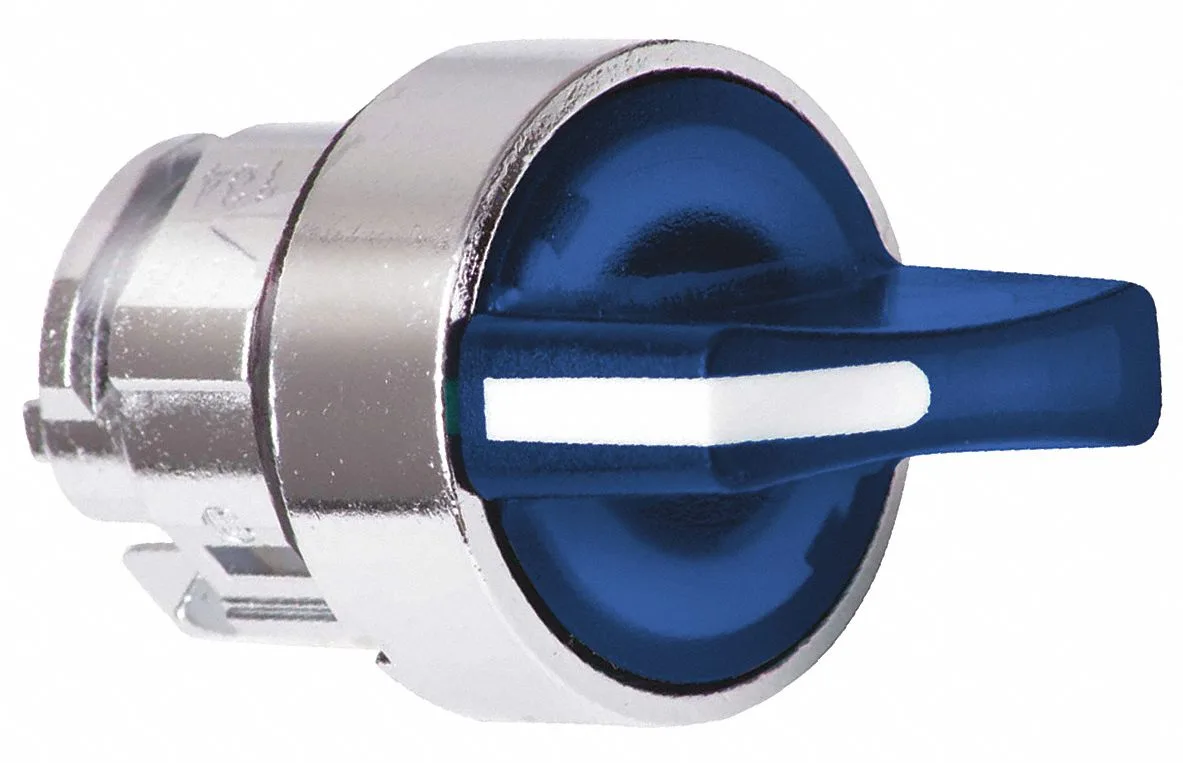

handled blue illuminated selector switch, chrome bezel, 22 mm

Schneider Electric

Schneider Electric ZB4BK1463 Short-Handled Selector Switch, Illuminated, Blue, 2 Position, 22 mm

SKU CH-S906-1J0XM

Blue illuminated 22 mm selector switch with momentary action in both positions, rated IP66, IP67, IP69 and IP69K for harsh environments

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size22 mm
  • Blue illuminated selector for clear status indication
  • Short handle enables comfortable operation in tight panels
  • 22 mm mounting fits standard industrial cut-outs
  • IP66, IP67, IP69 and IP69K ratings resist water and dust ingress
  • Meets CSA C22.2 No. 14, IEC 60947 and UL 508 standards

22 mm Illuminated Selector Switch

This Schneider Electric ZB4BK1463 is a short-handled selector switch designed for industrial control panels. It suits operators who need a momentary two-position action with clear visual status indication in a 22 mm mounting cut-out.

Panel Mounting and Environmental Sealing

The switch fits a standard 22 mm panel hole and uses a lever operator with a plastic head and chrome-plated metal bezel. Its IP66, IP67, IP69 and IP69K ratings mean it resists high-pressure wash-down, but installers must verify the panel thickness and torque to maintain the seal.

Momentary Two-Position Operation

The defining specification is the momentary/momentary action on two positions, which returns to centre when released. Buyers who need a maintained stay-put position or a three-position cam arrangement cannot use this switch.

Highlights

  • Blue illuminated selector for clear status indication
  • Short handle enables comfortable operation in tight panels
  • 22 mm mounting fits standard industrial cut-outs
  • IP66, IP67, IP69 and IP69K ratings resist water and dust ingress
  • Meets CSA C22.2 No. 14, IEC 60947 and UL 508 standards

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size22 mm

Questions about this item

How can I verify the selector switch is operating correctly after installation?

After wiring the contacts, rotate the blue lever through both momentary positions and confirm each circuit actuates and returns to centre when released, with the illuminated ring lit if a lamp module is fitted.

What components are included and what must be purchased separately?

The package contains the 22 mm short-handled illuminated selector head with chrome-plated metal bezel and blue plastic operator; contact blocks, lamp modules and mounting hardware are sold separately.

Which version should I choose for a 22 mm panel cut-out with IP69K wash-down requirements?

Select the ZB4BK1463 model — its 22 mm mounting diameter and IP66, IP67, IP69 and IP69K ratings meet the cut-out size and high-pressure wash-down specification.
