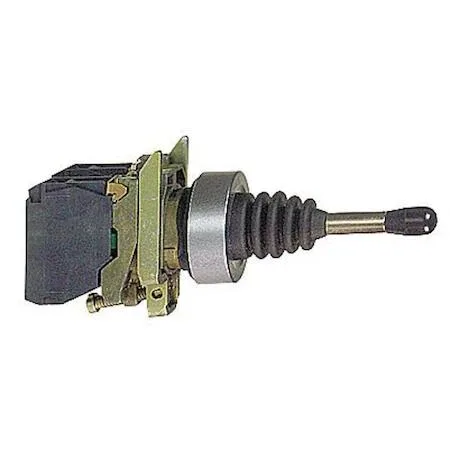

Schneider Electric 22 mm metal joystick operator with chromium-plated bezel, four directional positions

Schneider Electric

Schneider Electric XD4PA24 22mm 4-Position Metal Joystick Operator

SKU CH-X70M-9JH4R

A 22 mm metal joystick operator with four momentary directions and a 10 A contact rating

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 22 mm cut-out fits standard panels
  • Four-direction momentary control for precise machine operation
  • Metal construction with chromium-plated bezel resists impact and corrosion
  • IP66 and NEMA 13, 4X ratings protect against dust and water jets
  • 10 A at 600 V AC contact rating handles demanding industrial circuits

Industrial Joystick Operator for Control Panels

The Schneider Electric XD4PA24 is a 22 mm metal joystick operator designed for industrial electrical control and automation panels. It provides four-direction momentary control with a single normally open contact rated at 10A at 600V AC. The chromium-plated metal bezel and metal construction suit demanding industrial environments.

Environmental Ratings and Contact Limits

The operator carries NEMA 13 and 4X ratings alongside an IP66 ingress protection rating, indicating resistance to dust, water jets, and oil or coolant splashing. The contact carries an R300 designation, limiting its use to specific AC control-circuit duty cycles at the stated voltage and current. It complies with China RoHS, EU RoHS, REACH, and WEEE standards.

Mounting and Circuit Compatibility Checks

Verify that the panel cut-out accommodates a 22 mm mounting size before ordering. Ensure the control circuit operates within the 10A, 600V AC rating and suits the R300 duty designation for momentary, non-latching operation. The vertical and horizontal action requires wiring for four discrete directions.

Highlights

  • 22 mm cut-out fits standard panels
  • Four-direction momentary control for precise machine operation
  • Metal construction with chromium-plated bezel resists impact and corrosion
  • IP66 and NEMA 13, 4X ratings protect against dust and water jets
  • 10 A at 600 V AC contact rating handles demanding industrial circuits

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

Should I pick the 22 mm metal version or another size?

This operator is a single 22 mm metal joystick with four positions; no other sizes or materials are offered for this model.

What does the 10 A at 600 V AC rating mean when the joystick is wired into a control circuit?

Each of the four momentary directions uses a 1NO contact rated for 10 A at 600 V AC, NEMA R300, so it can switch typical industrial pilot devices directly.

How do the NEMA 13, 4X and IP66 ratings limit where I can mount this joystick?

The ratings certify the bezel and seal against oil, coolant, dust and high-pressure wash-down, allowing mounting on panels in wet or dirty industrial environments.
