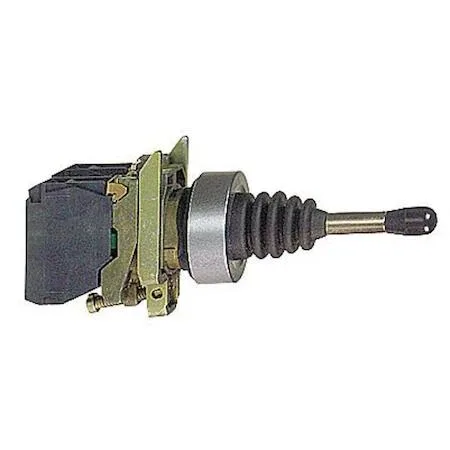

Schneider Electric 22 mm metal joystick operator, chromium bezel, four-direction control

Schneider Electric

Schneider Electric XD4PA14 Joystick Operator 22 mm 4 Position Metal

SKU CH-NQJG-MR79G

22 mm metal joystick operator with four maintained directions, 10 A at 600 V contacts, and IP66 plus NEMA 13 and 4X sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 22 mm mounting fits standard panels
  • Four maintained directions give precise control
  • 10 A at 600 V AC contact rating handles heavy loads
  • IP66 and NEMA 13 4X ratings seal against dust and water
  • Metal construction with chromium-plated bezel resists wear

Schneider Electric XD4PA14 Industrial Joystick

The Schneider Electric XD4PA14 is a 22 mm metal joystick operator built for industrial control panels. It provides four maintained latching directions with a single normally open contact rated at 10A at 600V AC. The chromium-plated metal bezel and NEMA 13, 4X and IP66 ratings suit harsh environments requiring reliable manual input.

Environmental Sealing and Electrical Rating

The operator meets IP66 for dust-tight and powerful water-jet protection alongside NEMA 13 and 4X ratings for oil, coolant and corrosion resistance. Its R300 contact designation supports heavy-duty pilot duty at 600V AC. The maintained action holds position without spring return, reducing operator fatigue during extended use.

Panel Upgrade for Four-Direction Control

This unit replaces simpler two- or three-position selectors when a machine sequence demands four distinct maintained states such as up, down, left and right. The jump is worth it when the application requires simultaneous NEMA 4X wash-down capability and 10A switching in a single 22 mm cut-out. Buyers needing momentary spring-return action or more than four positions should specify a different operator.

Highlights

  • 22 mm mounting fits standard panels
  • Four maintained directions give precise control
  • 10 A at 600 V AC contact rating handles heavy loads
  • IP66 and NEMA 13 4X ratings seal against dust and water
  • Metal construction with chromium-plated bezel resists wear

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How is the 22 mm joystick operator mounted and what step is often missed?

The operator fits a standard 22 mm panel cut-out and is secured with the supplied locking nut; the step often missed is tightening the nut to the specified torque so the IP66 seal seats correctly.

Which parts will need replacement after extended use?

The internal 1NO contact block rated 10 A at 600 V AC is the wear item; the metal joystick and chromium-plated bezel are built for the full service life.

What is the first limit reached during continuous operation?

The 10 A / 600 V AC contact rating is the electrical ceiling; exceeding it causes contact degradation before the NEMA 13, 4X or IP66 enclosure ratings become a factor.
