Schneider Electric 22 mm rectangular multi-head operator with green and red plastic buttons

Schneider Electric

Schneider Electric XB5AL73415 22 mm Multihead Operator 1NO/1NC Rectangular Green/Red

SKU CH-JMVD-41JHQ

A 22 mm rectangular multi-head operator with one extended and one flush button, green and red legends, 1NO/1NC contacts rated up to 10A at 600V AC, and IP67/IP69/IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 22 mm panel cut-out fits standard industrial enclosures
  • Momentary dual-head operator gives independent start/stop control
  • 1NO/1NC contacts rated 3 A at 240 V AC for reliable switching
  • IP67 IP69 IP69K and NEMA 13 4X sealing resists wash-down and dust
  • Green extended and red flush buttons with white I/O legends for clear identification

22 mm Multihead Operator for Industrial Panels

The Schneider Electric XB5AL73415 is a 22 mm rectangular multihead operator designed for industrial electrical control panels. It provides two momentary push buttons in a single mounting hole, suited for machinery start and stop functions.

Dual-Button Layout with IP67.

The head uses plastic construction with one extended green button and one flush red button, marked with I/O legends on white backgrounds. Rated NEMA 13, 4X and IP67, IP69, IP69K, the assembly resists water ingress during high-pressure washdowns common in food and process environments.

Verify 22 mm Cutout and 1NO/1NC Contact Requirements

Confirm the panel provides a standard 22 mm mounting cutout and that the control circuit can use the 1NO/1NC contact block rated 3 A at 240 V AC, 6 A at 120 V AC and 10 A at 600 V AC. This unit does not suit applications needing maintained action, additional contact blocks or a different colour scheme.

Highlights

  • 22 mm panel cut-out fits standard industrial enclosures
  • Momentary dual-head operator gives independent start/stop control
  • 1NO/1NC contacts rated 3 A at 240 V AC for reliable switching
  • IP67 IP69 IP69K and NEMA 13 4X sealing resists wash-down and dust
  • Green extended and red flush buttons with white I/O legends for clear identification

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

What voltage and current does the 1NO/1NC contact block on this XB5AL73415 operator actually switch?

The contact block is rated for 3 A at 240 V AC, 6 A at 120 V AC and 10 A at 600 V AC.

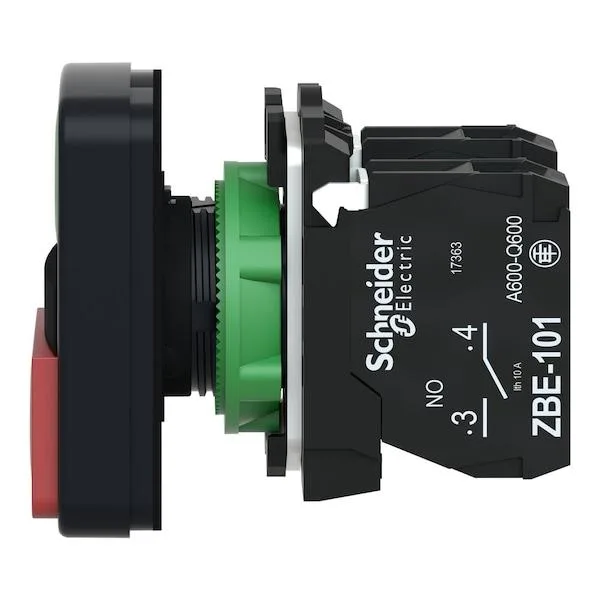

What panel cut-out and mounting hardware does the 22 mm rectangular head need?

It fits a standard 22 mm cut-out and secures with the usual lock-nut and anti-rotation notch; the rectangular bezel sits flush once the nut is tightened.

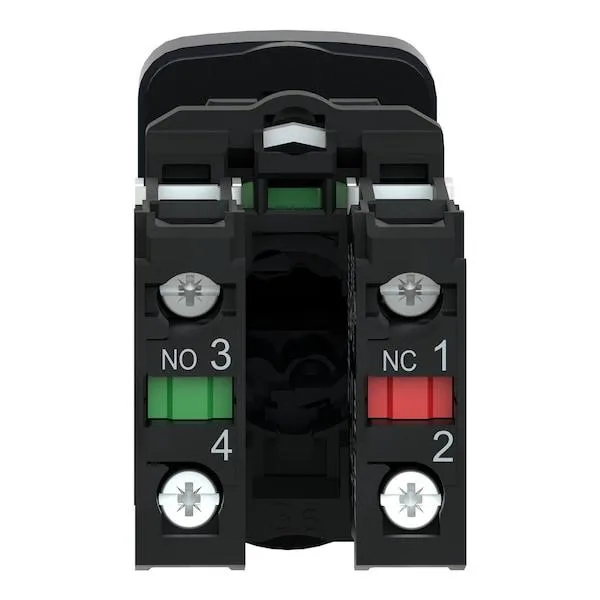

How is the contact block snapped onto the operator, and what step do installers often miss?

Align the block with the operator base and push until the latch clicks; the common mistake is not hearing the click, leaving the contacts loose.
