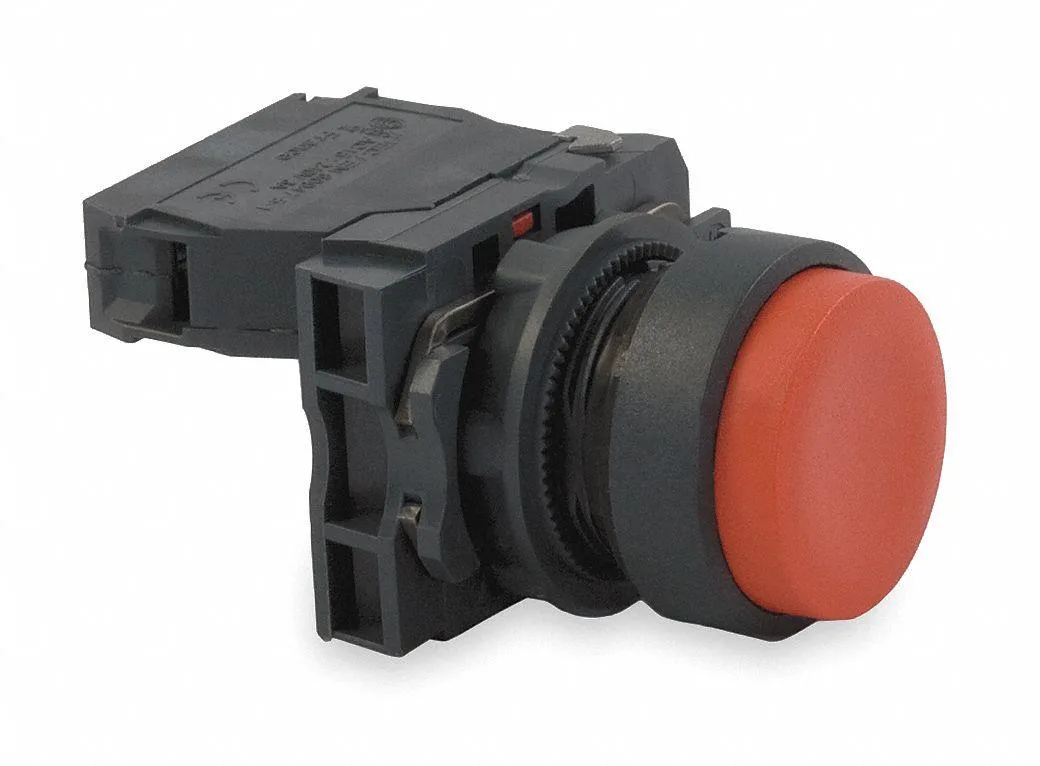

Red plastic extended push button 22 mm Schneider Electric XB5AL42

Schneider Electric

Schneider Electric XB5AL42 22 mm Extended Momentary Push Button

SKU CH-SQV3-PMAJN

A 22 mm red momentary push button rated 10 A at 600 V AC with IP66, IP67, IP69 and IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Extended momentary action for precise control
  • 22 mm mounting fits standard panels
  • Red plastic head with IP66/IP67/IP69K sealing
  • NEMA 13/4/4X ratings protect against harsh environments
  • 10 A at 600 V AC contact rating handles heavy loads

Schneider Electric 22 mm Extended Momentary Push

This Schneider Electric XB5AL42 operator provides a 22 mm extended momentary push button for industrial control panels. It suits maintenance engineers and panel builders who need a durable manual input device rated for harsh environments. The red plastic head and plastic bezel deliver clear actuation feedback in automated machinery and process equipment.

Panel mounting and wiring considerations

The 22 mm cut-out matches standard industrial panel openings, allowing straightforward installation with common tooling. The single operator carries a 1NC contact form rated at 10A at 600V AC, so wiring must respect the A600/Q600 designation. Misalignment during mounting or exceeding the contact rating are the most common issues that lead to premature failure.

Sustained operation in demanding conditions

NEMA ratings 13, 4, 4X and IP ratings 66, 67, 69, 69K confirm protection against dust, water jets, high-pressure washdown and oil ingress during continuous duty. The plastic head material resists corrosion and impact throughout extended shifts. The momentary action returns automatically, ensuring consistent cycle repeatability without mechanical fatigue under prolonged use.

Highlights

  • Extended momentary action for precise control
  • 22 mm mounting fits standard panels
  • Red plastic head with IP66/IP67/IP69K sealing
  • NEMA 13/4/4X ratings protect against harsh environments
  • 10 A at 600 V AC contact rating handles heavy loads

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How can I verify the 22 mm extended momentary push button is working after installation?

Press the red plastic button and confirm the 1NC contact opens the circuit; the IP66, IP67, IP69 and IP69K ratings mean the seal stays intact during the test.

What comes in the box and what must I buy separately?

The box contains the single 22 mm extended push-button operator with plastic bezel and 10 A / 600 V AC contact block; you must supply the mounting panel, wiring and any legend plate separately.

Which NEMA and IP rating combination should I choose for my environment?

Select this model when you need NEMA 13, 4 and 4X together with IP66, IP67, IP69 and IP69K protection for wash-down or outdoor use.
