Schneider Electric XB5AA45 red flush push button operator 22 mm plastic head

Schneider Electric

Schneider Electric XB5AA45 22 mm flush push button operator 1NO/1NC red

SKU CH-7RWN-NJB5P

A 22 mm flush push button operator with momentary action, 1NO/1NC contacts rated 10A at 600V AC, and NEMA 1, 2, 3, 4, 4X, 12, 13 plus IP66, IP67, IP69, IP69K protection

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 22 mm flush mount fits standard panels
  • momentary action gives instant response
  • 1NO/1NC contacts handle 10 A at 600 V AC
  • IP66/IP67/IP69/IP69K seals resist water and dust
  • NEMA 1, 2, 3, 4, 4X, 12, 13 rated for tough environments

22 mm Flush Push Button Operator

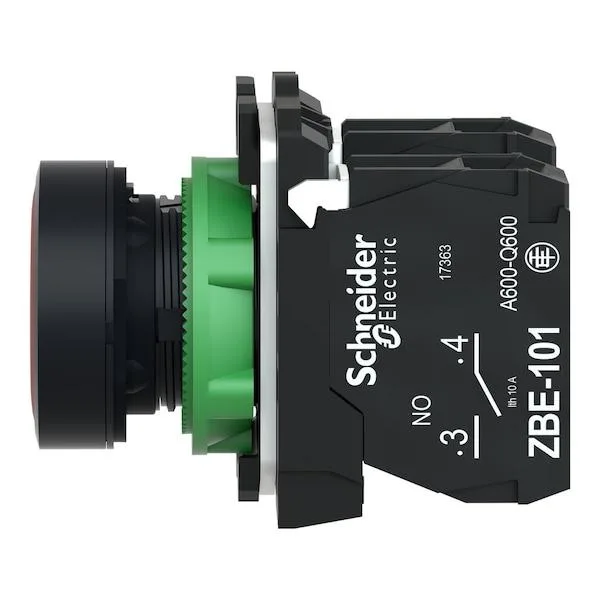

Schneider Electric XB5AA45 is a red momentary flush push button operator designed for industrial control panels and automation equipment. It fits a standard 22 mm mounting hole and provides one normally open and one normally closed contact for basic switching tasks.

Contact rating and headroom

The operator carries a 10 A rating at 600 V AC under NEMA designations A600 and Q600, suitable for pilot duty and moderate inductive loads. It is not intended for high-current motor starting or applications that exceed the stated contact rating.

Environmental sealing and mounting limits

The unit meets NEMA 1, 2, 3, 4, 4X, 12, 13 and IP66, IP67, IP69, IP69K ratings, resisting dust, water jets and high-pressure wash-down. The plastic bezel and head limit use in environments requiring metal construction or extreme impact resistance.

Highlights

  • 22 mm flush mount fits standard panels
  • momentary action gives instant response
  • 1NO/1NC contacts handle 10 A at 600 V AC
  • IP66/IP67/IP69/IP69K seals resist water and dust
  • NEMA 1, 2, 3, 4, 4X, 12, 13 rated for tough environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

Will this 22 mm operator fit the existing cut-outs on my older Schneider Electric panel?

Yes, the 22 mm mounting diameter matches the standard cut-out used on Harmony XB4 and XB5 series panels, so it installs directly into your existing holes.

How can I confirm the momentary action and both contacts are working after wiring?

Press the red flush button; the 1NO contact should close and the 1NC contact should open while held, then both return to their original state when released.

Does the box include the contact blocks or only the red operator head?

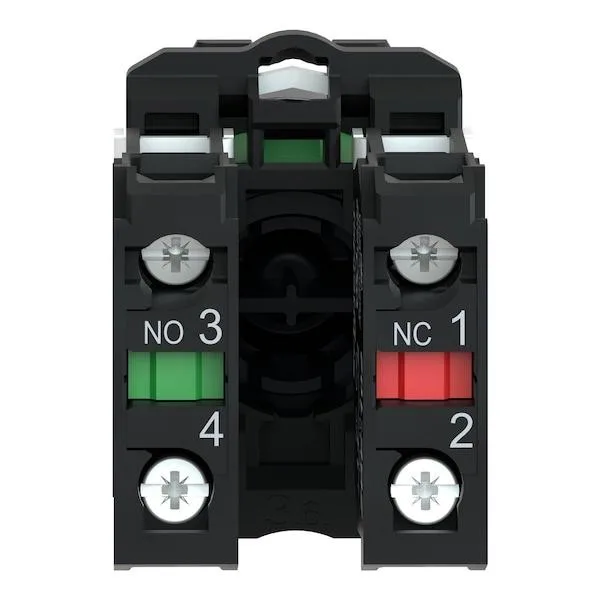

The part number XB5AA45 supplies the complete assembly — red flush operator head plus the 1NO/1NC contact block — so no separate contact blocks are required.
