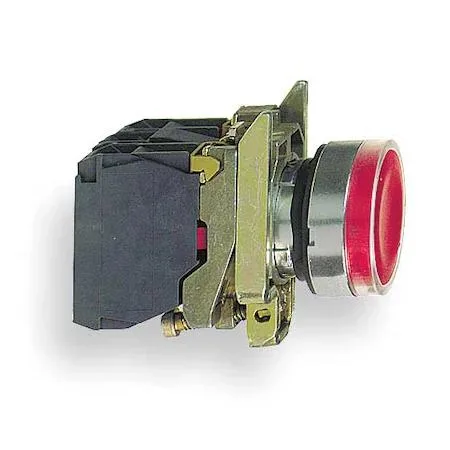

Schneider Electric 22 mm illuminated push button red chrome metal guarded head

Schneider Electric

Schneider Electric XB4BW34G5 22 mm Illuminated Push Button Red 1NO/1NC

SKU CH-RN59-XHW5P

22 mm illuminated push button with momentary action, 1NO/1NC contacts, IP66/IP67/IP69K protection and 10 A at 600 V AC rating

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Red illuminated button gives clear visual status in low light
  • 22 mm cut-out fits standard industrial panel layouts
  • Momentary action with 1NO/1NC contacts provides reliable circuit control
  • Chrome-plated metal bezel resists corrosion in harsh environments
  • IP66 IP67 IP69 IP69K and NEMA 1 12 13 2 3 4 4X ratings protect against dust and water ingress

Schneider Electric 22 mm Illuminated Push Button Red

This Schneider Electric XB4BW34G5 is a 22 mm illuminated push button with a red metal operator head and chrome-plated metal bezel. It provides momentary action with a 1NO/1NC contact configuration rated at 10A at 600V AC. The unit carries NEMA ratings 1, 2, 3, 4, 4X, 12, 13 and IP ratings IP66, IP67, IP69, IP69K for demanding industrial environments.

Suits panels needing a single guarded momentary

This device fits panels requiring one 22 mm momentary push button with integrated illumination and a guarded round head. It is not suited for applications needing maintained action, mushroom-head operators, or multiple operators in a single unit. Buyers who need a non-illuminated version or a different contact arrangement should look at other models.

Contact rating 10A at 600V AC with 1NO/1NC form

The contact block delivers a 10A rating at 600V AC under NEMA designations A600 and Q600. This single specification determines whether the switch can handle the control circuit load in your panel. Verify that your application voltage and current stay within this rating before installation.

Highlights

  • Red illuminated button gives clear visual status in low light
  • 22 mm cut-out fits standard industrial panel layouts
  • Momentary action with 1NO/1NC contacts provides reliable circuit control
  • Chrome-plated metal bezel resists corrosion in harsh environments
  • IP66 IP67 IP69 IP69K and NEMA 1 12 13 2 3 4 4X ratings protect against dust and water ingress

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How often should the red LED in this 22 mm illuminated push button be replaced?

The unit uses full-voltage illumination; the LED is not user-replaceable, so the complete operator head is swapped when brightness fades.

What contact rating limits continuous operation on a 600 V AC circuit?

The contacts are rated 10 A at 600 V AC with NEMA A600/Q600 designation, which sets the thermal ceiling for sustained loads.

Does the IP69K-rated bezel stay cool enough for all-day panel mounting?

The chrome-plated metal bezel dissipates heat from the 10 A contacts, and the IP66/IP67/IP69K seals add no measurable temperature rise during continuous duty.
