Schneider Electric 22 mm illuminated push button white chrome metal guarded momentary 1NO/1NC

Schneider Electric

Schneider Electric XB4BW31G5 Illuminated Push Button 22 mm White 1NO/1NC

SKU CH-A3W6-3QD4D

22 mm illuminated momentary push button with 1NO/1NC contacts rated 10 A at 600 V AC and IP66, IP67, IP69, IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • White illuminated button for clear status indication
  • 22 mm mounting size fits standard industrial panels
  • 1NO/1NC contacts switch up to 10 A at 600 V AC
  • IP66 IP67 IP69 IP69K ratings withstand wash-down and dust
  • NEMA 1 2 3 4 4X 12 13 enclosure types suit harsh environments

Illuminated Push Button 22 mm

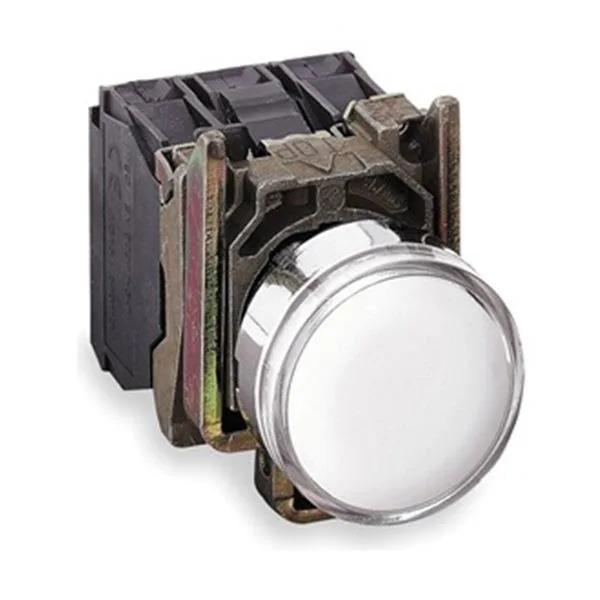

Schneider Electric XB4BW31G5 is a 22 mm illuminated push button designed for industrial control panels. It features a white round guarded metal operator with a chrome-plated metal bezel. The unit provides momentary action with a 1NO/1NC contact form rated at 10A 600V AC.

Panel builders needing IP66 IP67 IP69 IP69K sealing

This button suits panels requiring NEMA 1 2 3 4 4X 12 13 environmental ratings. It is not for applications needing maintained latch action or a different contact configuration such as 2NO or 2NC. Buyers who want a non-illuminated operator should look elsewhere.

Contact rating 10A 600V AC

The single specification that decides fit is the 10A 600V AC contact rating with A600/Q600 designation. Verify your circuit voltage and current do not exceed these limits before installation.

Highlights

  • White illuminated button for clear status indication
  • 22 mm mounting size fits standard industrial panels
  • 1NO/1NC contacts switch up to 10 A at 600 V AC
  • IP66 IP67 IP69 IP69K ratings withstand wash-down and dust
  • NEMA 1 2 3 4 4X 12 13 enclosure types suit harsh environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

What control panel cut-out and voltage supply does the 22 mm illuminated push button require?

The operator fits a standard 22 mm panel cut-out and uses full-voltage illumination, so the supply must match the lamp voltage you select.

Can the 10 A, 600 V AC rated contacts (A600/Q600) switch the same loads as my existing NEMA A600 pilot devices?

Yes, the 1NO/1NC contacts carry the same NEMA A600/Q600 rating, so they handle equivalent AC control-circuit loads.

How do I verify the IP66, IP67, IP69 and IP69K seals are intact after wiring the chrome bezel unit?

Inspect the gasket seating, confirm the guarded head clicks into the bezel, then apply rated voltage — the white LED should illuminate without moisture ingress.
