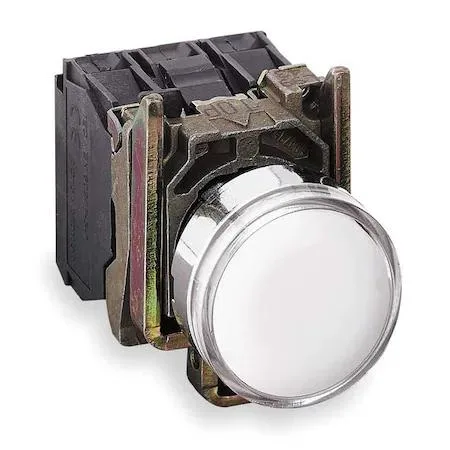

Schneider Electric 22 mm illuminated push button white chrome metal round guarded momentary 1NO 1NC

Schneider Electric

Schneider Electric XB4BW31B5 Illuminated Push Button White 22 mm 1NO/1NC

SKU CH-D6TF-XNR5E

A white 22 mm illuminated push button with FullVolt supply, momentary action, 1NO/1NC contacts rated 10A at 600V AC, and IP66, IP67, IP69, IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • White illuminated button for clear status
  • 10 A 600 V AC contact rating handles heavy loads
  • IP66 IP67 IP69 IP69K sealing resists harsh environments
  • 22 mm mounting fits standard panels
  • 1NO/1NC contacts give flexible circuit control

22 mm illuminated push button for industrial

The Schneider Electric XB4BW31B5 is a 22 mm white illuminated push button designed for industrial electrical controls and automation. It features a momentary action with a round guarded metal operator head and a chrome-plated metal bezel. The unit carries a contact form of 1NO/1NC rated at 10A @ 600V AC with NEMA designation A600/Q600. It is suited for operators who need a single robust actuator in harsh environments.

Sustained operation with IP66 IP67 IP69 IP69K

Under continuous use the button maintains its NEMA 1 2 3 4 4X 12 13 ratings and IP66 IP67 IP69 IP69K ingress protection. The metal head and guarded design resist mechanical wear while the sealed construction prevents dust and high-pressure washdown penetration. Contact reliability is preserved across repeated cycles without degradation from contaminants or moisture ingress.

Replaces worn or non-illuminated 22 mm operators

This unit upgrades existing 22 mm panel cut-outs where a momentary illuminated actuator with 1NO/1NC contacts is required. The jump is worth it when the application demands both visual status indication and high environmental sealing in a single operator. It does not suit installations needing maintained action, multiple operators per head, or legend plate integration.

Highlights

  • White illuminated button for clear status
  • 10 A 600 V AC contact rating handles heavy loads
  • IP66 IP67 IP69 IP69K sealing resists harsh environments
  • 22 mm mounting fits standard panels
  • 1NO/1NC contacts give flexible circuit control

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

Does the 10 A contact rating generate noticeable heat or noise during continuous use?

The contacts are rated for 10 A at 600 V AC and operate silently with no moving fan; any warmth stays within normal limits for industrial push-button duty.

What mounting cut-out and voltage supply must already be in place for this 22 mm button to work?

A 22 mm panel cut-out and a control circuit that matches the 600 V AC rating are required; the momentary action needs no separate driver or transformer.

Can the IP66, IP67, IP69 and IP69K sealing protect the contacts when installed next to older NEMA 1, 12 or 13 enclosures?

Yes, the button meets NEMA 1, 2, 3, 4, 4X, 12 and 13 plus the listed IP ratings, so it seals correctly alongside legacy enclosures.
