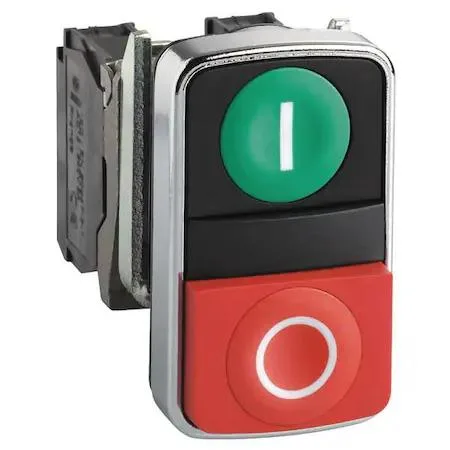

Schneider Electric 22 mm rectangular multi-head operator with green extended and red flush buttons, metal head, IP67 IP69K rating

Schneider Electric

Schneider Electric XB4BL73415 22 mm multi-head operator 1NO/1NC rectangular

SKU CH-EXH2-MEWPN

A 22 mm rectangular multi-head operator with momentary action, one extended and one flush button, metal construction, 1NO/1NC contacts rated 3A at 240V AC, NEMA 13 and 4X, plus IP67.

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • 22 mm mounting fits standard industrial panels
  • Dual operator heads give two functions in one cutout
  • IP67 IP69 IP69K sealing resists wash-down and high-pressure jets
  • 1NO 1NC contact block handles 3 A at 240 V AC
  • NEMA 13 4X rating suits indoor and outdoor enclosures

22 mm multi-head operator

This Schneider Electric 22 mm multi-head operator combines an extended button and a flush button in a rectangular metal head. It provides one normally open and one normally closed contact rated at 3 A at 240 V AC and 6 A at 120 V AC. The unit carries NEMA 13, 4X and IP67, IP69, IP69K ratings for demanding environments. Legends show I/O with white on green and white on red backgrounds.

Replaces single-function pushbuttons

The dual-head design replaces two separate 22 mm pushbuttons where panel space is limited and both momentary functions are required. The upgrade is worth it when an application needs distinct start and stop actions with clear colour coding and a single cut-out. It is not suited for buyers who need maintained or illuminated operators.

Sustained load behaviour

The contact rating of 3 A at 240 V AC and 6 A at 120 V AC applies to continuous operation within the stated limits. NEMA 13, 4X and IP67, IP69, IP69K sealing maintains ingress protection during prolonged exposure to water, oil and high-pressure wash-down. The metal head construction resists mechanical wear under repeated momentary actuation.

Highlights

  • 22 mm mounting fits standard industrial panels
  • Dual operator heads give two functions in one cutout
  • IP67 IP69 IP69K sealing resists wash-down and high-pressure jets
  • 1NO 1NC contact block handles 3 A at 240 V AC
  • NEMA 13 4X rating suits indoor and outdoor enclosures

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

What panel cut-out does the 22 mm rectangular operator require?

The operator fits a standard 22 mm panel cut-out for rectangular multi-head units.

How do the two contact blocks snap onto the operator body during installation?

Align each block with the bayonet slots, push until the latch clicks, then verify both NO and NC circuits before tightening the mounting nut.

Which parts should be inspected if the IP69K rating is compromised after wash-down cycles?

Check the head gasket, button seals and mounting nut torque; replace any cracked seals to restore the IP67, IP69 and IP69K protection.
