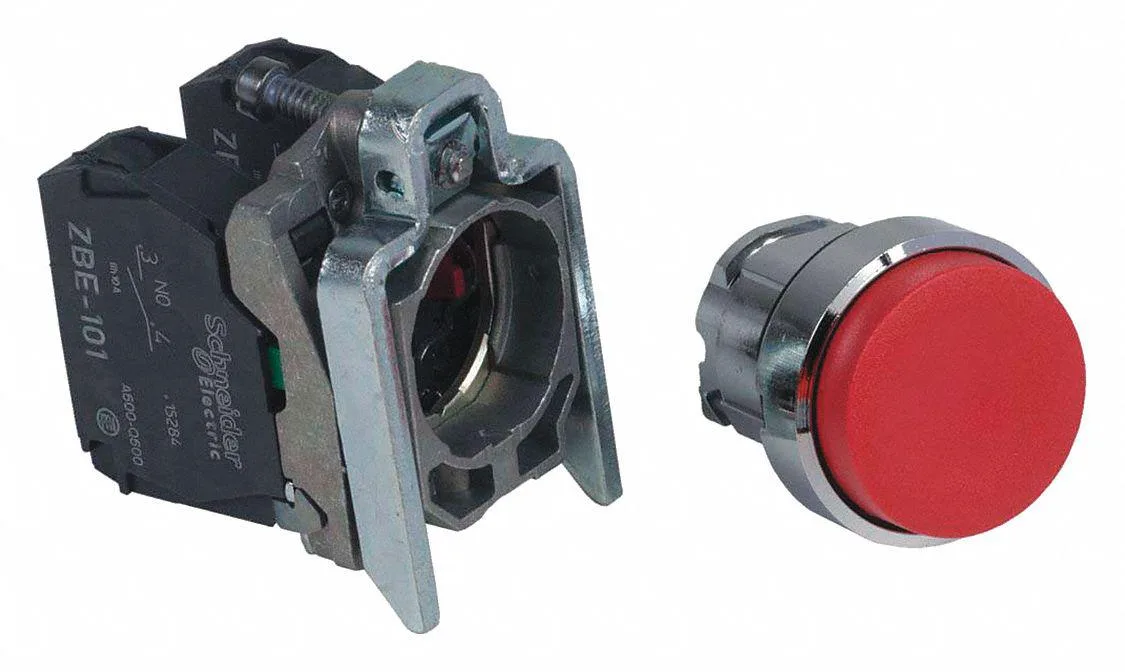

Red metal push button with chrome bezel, 22mm diameter

Schneider Electric

Schneider Electric XB4BL45 22mm red metal push button disconnect

SKU CH-WFW2-VMPPR

22 mm red metal push button with 1NO/1NC contacts rated 10 A at 600 V AC, NEMA 4/4X/13 and IP65

  • MaterialHAWA
  • Red 22 mm metal operator for clear emergency stop visibility
  • Momentary push action with 1NO/1NC contacts provides reliable circuit control
  • Pressure-plate terminals accept wires quickly without special tools
  • Rated 10 A at 600 V AC for heavy-duty industrial loads
  • IP65 and NEMA 4X enclosure resists water, dust and corrosion

Red metal safety disconnect

The Schneider Electric XB4BL45 is a non-illuminated 22 mm push button built for industrial safety circuits. Its metal head and chrome-plated bezel suit control panels that demand robust, momentary actuation with a clear red identifier.

NEMA 13 and IP65 enclosure limits

The switch carries NEMA 13, 4 and 4X ratings plus IP65 ingress protection, so it resists oil, coolant, splashing water and hose-directed spray. It is not rated for continuous submersion or environments exceeding those enclosure standards.

10 A at 600 V AC contact capacity

Rated 10 A at 600 V AC under NEMA A600/Q600, the single 1NO/1NC contact block handles typical motor-starter and control-relay loads. Circuits requiring higher breaking current or multiple contact stages will need additional or larger devices.

Highlights

  • Red 22 mm metal operator for clear emergency stop visibility
  • Momentary push action with 1NO/1NC contacts provides reliable circuit control
  • Pressure-plate terminals accept wires quickly without special tools
  • Rated 10 A at 600 V AC for heavy-duty industrial loads
  • IP65 and NEMA 4X enclosure resists water, dust and corrosion

Specifications

MaterialHAWA
BrandSCHNEIDER ELECTRIC

Questions about this item

How do I choose between the momentary and maintained versions of this 22 mm red metal push button?

This specific model is a momentary push action type; it returns to its original position when released. If you need a button that stays in the pressed position, you would need a different maintained action variant.

What does the 10A contact rating mean for a real control circuit?

It means the contacts can safely switch up to 10 amps at 600V AC, suitable for standard industrial control circuits like motor starters or contactor coils rated within the A600/Q600 designation.

What does the NEMA 13, 4, 4X and IP65 rating cap in practice?

These ratings confirm the operator is protected against dust, water jets, oil, and coolant ingress, making it suitable for harsh indoor and outdoor industrial environments where washdown occurs.
