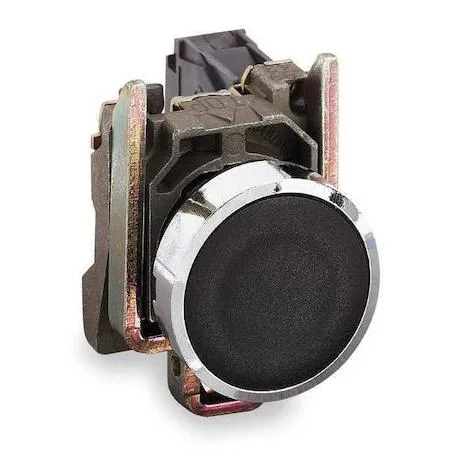

Schneider Electric 22 mm flush push button, black head with chrome bezel

Schneider Electric

Schneider Electric XB4BA25 22 mm flush push button 1NO/1NC black

SKU CH-83HK-BQQYN

A 22 mm flush push button with 1NO/1NC contacts rated 10 A at 600 V AC and IP66, IP67, IP69, IP69K sealing

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Flush 22 mm design saves panel space
  • Momentary action gives tactile control
  • 1NO/1NC contacts handle 10 A at 600 V
  • Metal head with chrome bezel resists impact
  • IP66 IP67 IP69 IP69K seals out dust and water

22 mm Flush Push Button Operator

The Schneider Electric XB4BA25 is a 22 mm flush push button operator designed for industrial control panels and machinery interfaces. It provides momentary action with a metal head and chrome-plated metal bezel in black. The unit carries a 1NO/1NC contact configuration rated at 10A at 600V AC. It suits panel builders and maintenance engineers who need a durable, sealed operator for start, stop or reset functions.

Contact rating and environmental sealing

The contact block is rated 10A at 600V AC with NEMA designations A600 and Q600, covering typical AC control circuit duties. The operator meets NEMA type 1, 2, 3, 4, 4X, 12 and 13 ratings and achieves IP66, IP67, IP69 and IP69K protection. This combination withstands wash-down, dust ingress and high-pressure, high-temperature water jets common in food, beverage and pharmaceutical environments. It is not suited for applications requiring maintained action, illuminated heads or contact ratings beyond the stated 10A.

Upgrade from basic unsealed operators

This operator replaces standard unsealed or lower IP-rated push buttons where moisture, dust or cleaning chemicals cause premature failure. The jump is worth it when the panel must survive regular high-pressure wash cycles or outdoor exposure while maintaining reliable momentary switching. It does not address needs for key-operated, selector or emergency-stop functions, nor does it provide additional contact blocks beyond the single 1NO/1NC supplied.

Highlights

  • Flush 22 mm design saves panel space
  • Momentary action gives tactile control
  • 1NO/1NC contacts handle 10 A at 600 V
  • Metal head with chrome bezel resists impact
  • IP66 IP67 IP69 IP69K seals out dust and water

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

Will the 22 mm flush push button fit the existing cutouts on my 12, 13, or 4X rated panel?

Yes, the 22 mm operator matches standard cutouts and carries NEMA 1, 12, 13, 2, 3, 4, 4X ratings for those enclosures.

How can I verify the momentary action and 1NO/1NC contacts are working after wiring?

Press the black flush head; the circuit should close on the normally open contact and open on the normally closed contact, then return when released.

Does the box include a chrome bezel and mounting hardware, or must I order a legend plate separately?

The operator ships with its chrome-plated metal bezel and mounting hardware; legend plates are not included and are ordered separately.
