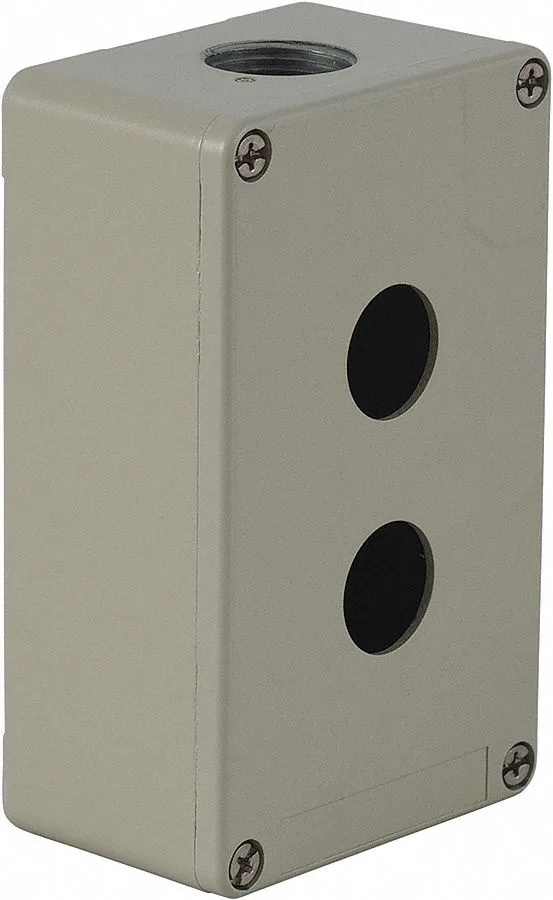

Gray die-cast zinc pushbutton enclosure, 2.03 in high, two 22 mm holes

Schneider Electric

Schneider Electric XAPG29202 22 mm pushbutton enclosure 2.03 in high gray die-cast zinc

SKU CH-7HB9-VDC2E

A 22 mm two-hole pushbutton enclosure with NEMA 13 and 4 ratings, 3/4 in conduit entry and die-cast zinc construction

  • TypeIndustrial Electrical Controls & Automation
  • NEMA 13 and 4 rating protects against dust and water ingress
  • 22 mm hole size accepts standard industrial pushbuttons
  • Die-cast zinc construction provides rugged impact resistance
  • Compact 2.03 in height fits tight panel spaces
  • 3/4 in conduit entry simplifies wiring installation

Pushbutton enclosure for 22 mm controls

This Schneider Electric enclosure houses two 22 mm pushbuttons in a single column. The die-cast zinc body is finished in gray and carries a NEMA 13 and 4 rating for industrial environments. It suits control panels that need a compact, weather-resistant station for start/stop or emergency functions.

Sealed construction manages heat and debris

The metal housing dissipates heat from installed contact blocks without forced airflow, keeping operation silent. A 3/4 in conduit entry routes wiring cleanly while maintaining the enclosure seal. The NEMA rating confirms protection against dust, water spray and oil, so internal components stay cool and dry in normal use.

Fits panels with 2.03 in height allowance

Overall dimensions are 2.03 in high, 3.15 in wide and 5.12 in deep, leaving 1.93 in depth for contact blocks behind the face. The single 3/4 in conduit hole simplifies cable entry. Builders needing more than two operators or a different hole pattern will require a larger enclosure.

Highlights

  • NEMA 13 and 4 rating protects against dust and water ingress
  • 22 mm hole size accepts standard industrial pushbuttons
  • Die-cast zinc construction provides rugged impact resistance
  • Compact 2.03 in height fits tight panel spaces
  • 3/4 in conduit entry simplifies wiring installation

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation

Questions about this item

How do I mount the 2.03 in high die-cast zinc enclosure and align the two 22 mm holes?

Mount the enclosure using the 3/4 in conduit entry; position the two 22 mm holes according to your panel layout so both operators sit flush — misaligned holes prevent proper sealing to NEMA 13 and 4.

What maintenance will the gray pushbutton enclosure need over time?

Inspect the die-cast zinc body and conduit seal periodically; replace gaskets if they harden or crack to maintain NEMA 13 and 4 protection against oil and water ingress.

What is the first limit I hit when the enclosure runs continuously in an oily environment?

The NEMA 13 and 4 rating is the limiting factor; sustained oil exposure can degrade the gasket material, so monitor seal integrity to prevent ingress past the 3/4 in conduit and 22 mm operator holes.
