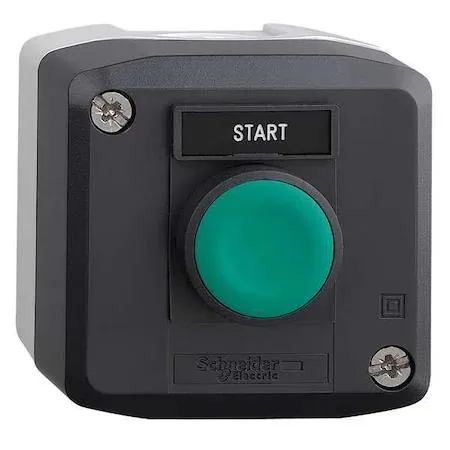

Schneider Electric control station with green 22 mm push button in dark grey plastic enclosure

Schneider Electric

Schneider Electric XALD101H29H7 Control Station Push Button Green 22 mm

SKU CH-6TT9-JADQZ

A 22 mm green push-button control station with a momentary 1NO contact rated 10A at 600V AC and IP66, IP67, IP69, IP69K protection

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Momentary start control with green 22 mm push button
  • Single normally-open contact rated 10 A at 600 V AC
  • IP66 IP67 IP69 IP69K enclosure resists water and dust ingress
  • NEMA 13 and 4X rated for indoor and outdoor industrial use
  • Plastic dark gray light gray housing measures 2.68 in wide and deep

Industrial Control Station for Start Functions

The Schneider Electric XALD101H29H7 is a 22 mm push button control station designed for industrial electrical automation. It features a single momentary green operator with a Start legend and one normally open contact. The unit is built for panels requiring a compact, dedicated start command.

Sustained Load Behaviour

The contact is rated for 10A at 600V AC and 2.5A at 24V DC, meeting NEMA A600/Q600 designations. These ratings support continuous operation at the stated currents without thermal derating. The momentary action returns automatically, making it suitable for repeated start cycles in machinery control circuits.

Environmental Protection and Enclosure

The plastic enclosure carries IP66, IP67, IP69 and IP69K ratings plus NEMA 13 and 4X, resisting dust, water jets, high-pressure washdown and oil. The dark grey and light grey housing measures 2 inches high by 2.68 inches wide and deep. No pilot lights or mechanical interlocks are fitted.

Highlights

  • Momentary start control with green 22 mm push button
  • Single normally-open contact rated 10 A at 600 V AC
  • IP66 IP67 IP69 IP69K enclosure resists water and dust ingress
  • NEMA 13 and 4X rated for indoor and outdoor industrial use
  • Plastic dark gray light gray housing measures 2.68 in wide and deep

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How much heat or power does the 10 A / 600 V AC contact draw when the green push button is held down all day?

The contact block is rated for 10 A at 600 V AC and 2.5 A at 24 V DC; heat dissipation depends on the actual load you connect, not on the station itself.

What wiring or mounting hardware must I already have to install this 22 mm control station?

You need a 22 mm panel cut-out, suitable cable glands for the feed-through enclosure, and wire sized for up to 10 A at 600 V AC or 2.5 A at 24 V DC.

Will the momentary 1NO contact work reliably alongside older relay coils rated for NEMA A600/Q600?

Yes — the station carries the same NEMA A600/Q600 designation, so it can switch legacy coils within the 10 A / 600 V AC and 2.5 A / 24 V DC limits.
