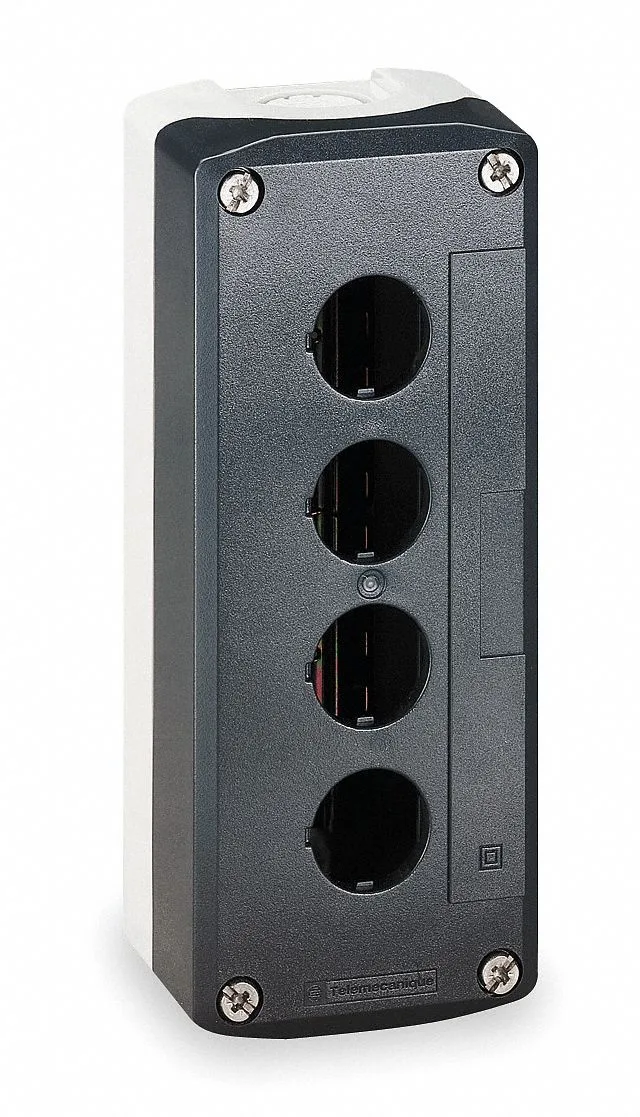

Grey polycarbonate enclosure with four 22 mm pushbutton holes

Schneider Electric

Schneider Electric XALD04H7 Pushbutton Enclosure 22mm 4 Hole Polycarbonate

SKU CH-4BWK-11WZA

A polycarbonate enclosure with four 22 mm holes for ZB5A operators, rated NEMA 1, 12, 13 and 4X

  • TypeIndustrial Electrical Controls & Automation
  • Four 22 mm holes fit multiple operators
  • Polycarbonate body resists impact and corrosion
  • NEMA 1, 12, 13 and 4X ratings suit indoor and outdoor use
  • 1/2 in conduit entry simplifies wiring
  • RoHS compliant for regulated environments

4-Hole 22mm Pushbutton Enclosure

This Schneider Electric XALD04H7 enclosure houses up to four 22mm operators in a single column. The polycarbonate body carries NEMA 1, 12, 13 and 4X ratings for indoor and outdoor industrial use. A 1/2 inch conduit entry simplifies wiring access. The grey finish matches standard control-panel aesthetics.

Suits compact control stations needing four

Builders needing more than four holes or a multi-column layout must choose a larger enclosure. Applications requiring metal construction or different NEMA ratings are not served by this model. Installers without 22mm ZB5A-compatible operators cannot use the cutouts. Projects demanding non-standard conduit sizes need an alternative housing.

22mm hole size for ZB5A operators

The four 22mm cutouts accept Schneider ZB5A pushbuttons, selector switches or pilot lights directly. This single dimension determines whether your chosen control devices will fit the enclosure.

Highlights

  • Four 22 mm holes fit multiple operators
  • Polycarbonate body resists impact and corrosion
  • NEMA 1, 12, 13 and 4X ratings suit indoor and outdoor use
  • 1/2 in conduit entry simplifies wiring
  • RoHS compliant for regulated environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation

Questions about this item

How do I mount the XALD04H7 enclosure and route cables through the 1/2 in conduit entry?

Mount the polycarbonate body using its integral lugs, then feed cables through the 1/2 in conduit opening; the step often missed is tightening the gland or locknut to maintain the NEMA 4X seal.

Will the 22 mm holes or grey polycarbonate need replacement after prolonged outdoor exposure?

The polycarbonate material resists UV and impact, and the 22 mm holes accept standard ZB5A operators; neither the holes nor the enclosure typically require scheduled replacement.

At what point does the NEMA 4X rating become the limiting factor during continuous wash-down cycles?

The NEMA 4X rating is the first limit reached; sustained high-pressure wash-down can compromise the gasket seal before the polycarbonate body or 22 mm cut-outs show wear.
