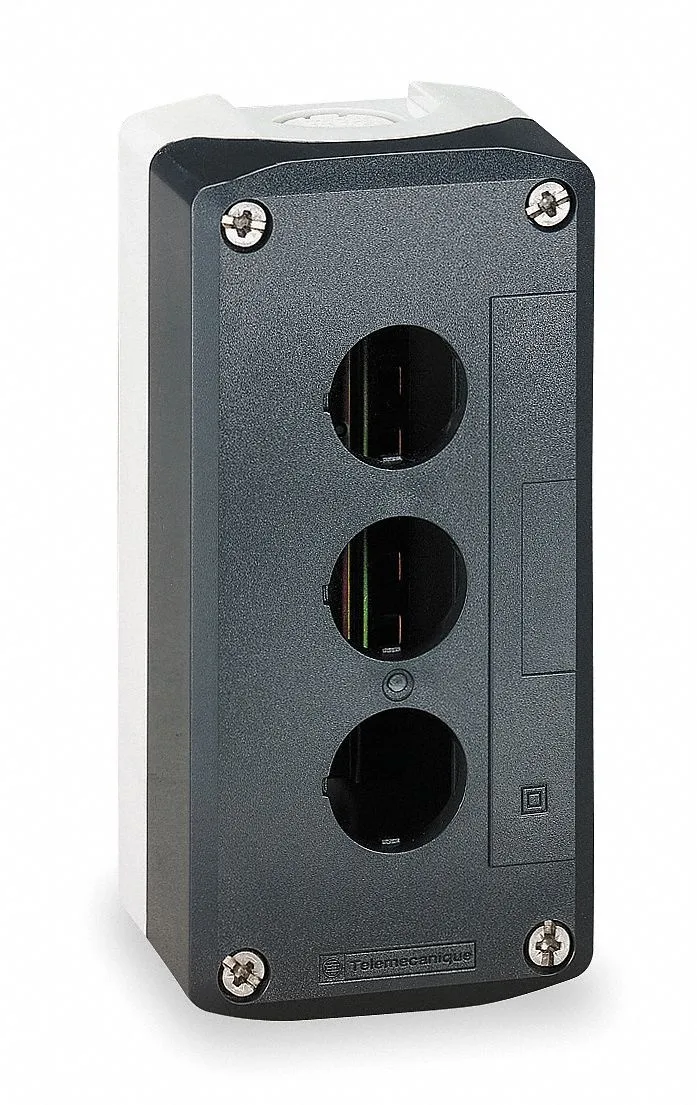

Grey polycarbonate pushbutton enclosure with three 22mm holes

Schneider Electric

Schneider Electric XALD03H7 22mm 3-Hole Pushbutton Enclosure

SKU CH-KER1-R4R7W

A grey polycarbonate enclosure with three 22 mm holes, NEMA 1, 12, 13 and 4X rated, measuring 5.27 in high by 2.68 in wide by 2.00 in deep

  • TypeIndustrial Electrical Controls & Automation
  • Three-hole layout fits multiple 22mm operators
  • NEMA 1, 12, 13, 4X ratings protect against dust and water
  • Polycarbonate body resists impact and corrosion
  • Compact 5.27 x 2.68 x 2.00 inch footprint saves panel space
  • RoHS compliant for regulated environments

Industrial Pushbutton Enclosure

The Schneider Electric XALD03H7 is a grey polycarbonate enclosure with three 22 mm holes in a single column. It is designed to house ZB5A operators or compatible plastic 22 mm pushbutton and pilot light heads for industrial control panels.

Suited for Single-Column Panels

This enclosure fits applications needing exactly three operators in a vertical arrangement and NEMA 1, 12, 13, 4X protection. Installers requiring more than three holes, a different hole spacing, or metal construction should select another enclosure style.

Simple Surface Mounting

The unit accepts 1/2 in conduit entries and mounts with standard hardware using the 5.27 in by 2.68 in footprint. The main installation error is drilling the 22 mm holes off-centre, which prevents the ZB5A operators from sealing to the NEMA rating.

Highlights

  • Three-hole layout fits multiple 22mm operators
  • NEMA 1, 12, 13, 4X ratings protect against dust and water
  • Polycarbonate body resists impact and corrosion
  • Compact 5.27 x 2.68 x 2.00 inch footprint saves panel space
  • RoHS compliant for regulated environments

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation

Questions about this item

Which operators fit the 22 mm holes in this enclosure?

It is designed for ZB5A operators and plastic 22 mm pushbutton or pilot light heads.

Will the NEMA 1, 12, 13, 4X rating protect the buttons I already use in indoor and wash-down areas?

The enclosure meets NEMA 1, 12, 13 and 4X ratings, so it is suitable for indoor, dust-tight, oil-tight and wash-down environments.

How can I confirm the enclosure is correctly mounted after installation?

Verify the 5.27 in height, 2.68 in width and 2.00 in depth align with your panel cut-out and that the 1/2 in conduit entry is properly sealed.
