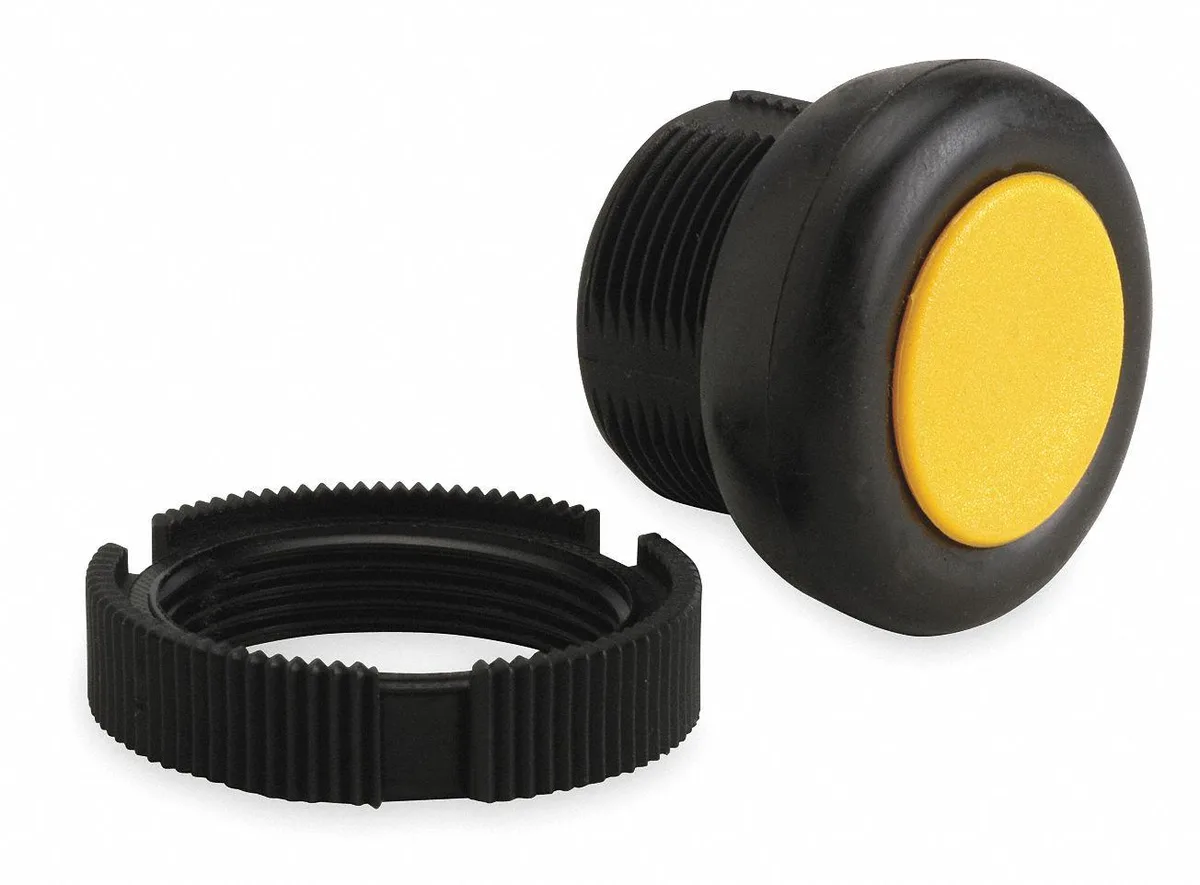

Yellow 22 mm flush push button with booted plastic head and bezel, IP65 rated

Schneider Electric

Schneider Electric XACA9415 22 mm Yellow Push Button Disconnect

SKU CH-AWD2-7PRC0

A 22 mm yellow momentary push button with IP65 protection and snap-fit assembly for safety disconnect applications

  • Yellow colour ensures clear visibility at a distance
  • 22 mm cut-out fits standard control panels
  • IP65 rating protects against dust and water jets
  • Momentary booted action provides reliable operator control
  • Snap-fit assembly speeds up installation and maintenance

22 mm Yellow Emergency Stop Button

The Schneider Electric XACA9415 is a flush, momentary push button with a 22 mm mounting diameter and a booted yellow head. It is built for machine-control panels that need a highly visible, single-action stop function. The all-plastic construction keeps the operator lightweight while meeting Class II insulation requirements.

IP65 Protection and Standards Compliance

The operator carries an IP65 rating, so it resists dust ingress and low-pressure water jets from any direction. It is certified to IEC 60947-5-1, IEC 60204-32, UL 508, CSA C22.2 No. 14 and the EN 50102 impact standard. Vibration and shock withstand are verified to IEC 60068-2-6 and IEC 60068-2-27 respectively.

Snap-Fit Assembly for Standard Cut-Outs

The 22 mm cut-out matches common industrial panel layouts, and the snap-fit body locks into place without tools. The booted head remains visually distinct at distance, satisfying emergency-stop visibility needs. Panels requiring a maintained or key-release actuator, or a different colour code, will need a separate operator type.

Highlights

  • Yellow colour ensures clear visibility at a distance
  • 22 mm cut-out fits standard control panels
  • IP65 rating protects against dust and water jets
  • Momentary booted action provides reliable operator control
  • Snap-fit assembly speeds up installation and maintenance

Specifications

BrandSCHNEIDER ELECTRIC

Questions about this item

Which 22 mm yellow push button should I choose for a momentary safety disconnect?

The XACA9415 is a flush, momentary, booted operator in yellow plastic rated IP65, built to Class II IEC 61140 and UL 508 for safety circuits.

What does the IP65 rating mean once the button is installed in a panel?

IP65 guarantees total dust protection and resistance to low-pressure water jets from any direction, so the operator stays functional in wash-down or outdoor environments.

Which standards govern the 22 mm mounting and safety performance of this switch?

It meets EN/IEC 60947-5-1 for control-circuit devices, IEC 60529 for the IP code, IEC 61140 Class II insulation, UL 508 and CSA C22.2 No. 14 for North American safety.
