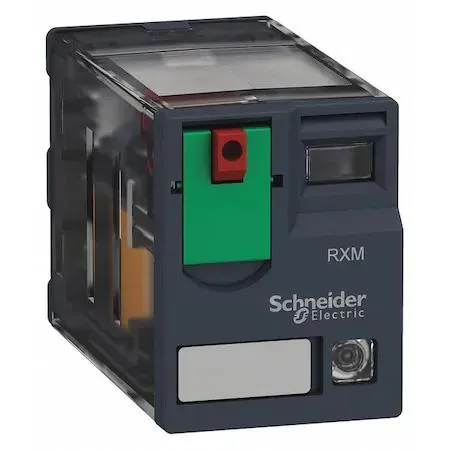

Square transparent relay with flat pins and LED indicator

Schneider Electric

Schneider Electric RXM2AB2F7 relay 12 A 120 V AC DPDT 8 pin

SKU CH-ZJN5-KER1Q

An 8-pin plug-in relay with a 120 V AC coil, DPDT contacts rated at 12 A, LED indicator and lockable push-to-test

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • Plug-in mounting enables quick panel installation
  • 12 A contact rating handles 250 V AC and 28 V DC loads
  • LED indicator plus mechanical flag give instant status feedback
  • Lockable push-to-test button allows safe circuit verification
  • Enclosed square body fits standard 8-pin sockets

Schneider Electric RXM2AB2F7 Relay

The Schneider Electric RXM2AB2F7 is a general purpose plug-in relay designed for industrial electrical controls and automation. It features a square base with eight flat pins and a transparent enclosed body. A built-in LED indicator and mechanical flag provide visual status confirmation. The unit includes a lockable push-to-test method for convenient circuit verification.

Suits 120 V AC control panels needing DPDT switching

This relay suits panels that require a double-pole double-throw contact form operated by a 120 V AC coil. It handles resistive loads up to 12 A at 250 V AC or 12 A at 28 V DC. Builders needing a different coil voltage, a different contact arrangement, or a horsepower-rated device for motor loads should look at other models. The quick-connect flat pins require compatible sockets or terminal blocks.

Coil voltage 120 V AC determines compatibility

The single specification that decides fit is the 120 V AC coil voltage; the control circuit must supply exactly this potential to actuate the relay. The DPDT contact form then switches two independent circuits at up to 12 A. Verify that the 0.09 in flat pin width and 8-pin layout match the chosen socket before installation.

Highlights

  • Plug-in mounting enables quick panel installation
  • 12 A contact rating handles 250 V AC and 28 V DC loads
  • LED indicator plus mechanical flag give instant status feedback
  • Lockable push-to-test button allows safe circuit verification
  • Enclosed square body fits standard 8-pin sockets

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

Should I choose the 120 V AC coil version or a different coil voltage for my control panel?

This relay has a 120 V AC coil; select it when your control circuit runs on 120 V AC, otherwise choose a relay with a matching coil voltage.

What does the 12 A rating mean when the relay is switching loads in my equipment?

The contacts are rated for 12 A at 250 V AC and 12 A at 28 V DC, so the relay can switch loads up to those current and voltage limits.

How does the 8-pin plug-in base affect installation and what does it limit?

The square 8-pin plug-in base with 0.09 in flat pins fits standard sockets for quick installation and limits the relay to DPDT contact configuration.
