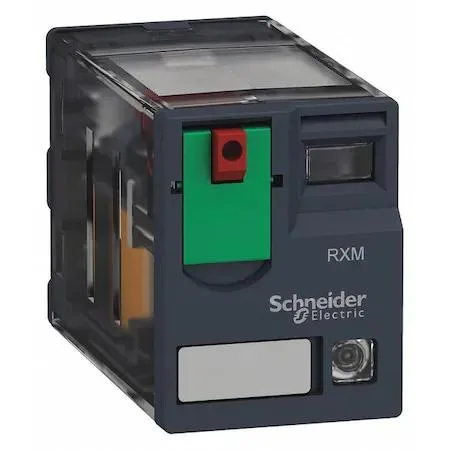

Schneider Electric RXM2AB2B7 Relay 24V AC 12 A 8 Pin

SKU CH-S45T-5ERT0

A 24 V AC plug-in relay with DPDT contacts rated 12 A at 250 V AC, eight flat pins, LED indicator and lockable push-to-test button

  • TypeIndustrial Electrical Controls & Automation
  • ColorTransparent
  • DPDT contact form enables versatile switching control
  • 12 A at 250 V AC handles substantial loads
  • 24 V AC coil suits common control voltages
  • LED indicator plus mechanical flag shows status clearly
  • Plug-in square base with 8 flat pins simplifies installation

Schneider Electric 24V AC Relay

The Schneider Electric RXM2AB2B7 is a plug-in general purpose relay designed for industrial electrical controls and automation. It operates on a 24V AC coil and provides DPDT contact switching with a 12 A rating at 250V AC or 28V DC. An enclosed transparent housing contains an LED status indicator and a mechanical flag for visual confirmation. The relay mounts via eight flat quick-connect pins spaced 0.09 in wide.

Upgrading from lower-rated relays

This unit replaces relays with lower current ratings or without visual status feedback. The 12 A contact capacity supports heavier loads than many miniature alternatives, while the lockable push-to-test button simplifies commissioning and troubleshooting. The jump is worth it when a panel design requires both high switching current and clear local indication in a single plug-in package.

Practical limits of plug-in DPDT interface

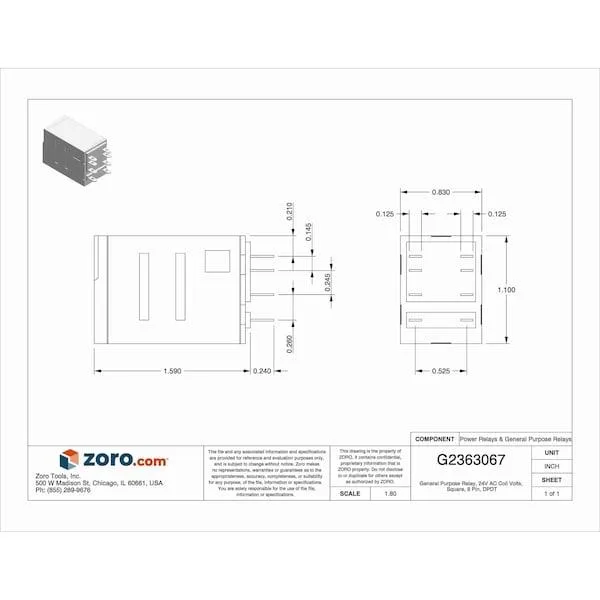

The eight-pin plug-in base restricts wiring to quick-connect flat terminals and fixes the pinout to a standard DPDT arrangement. Contact ratings are capped at 12 A for both AC and DC loads, with no horsepower rating provided for 120V or 240V motor circuits. The enclosed body depth of 1.57 in and height of 1.06 in dictate the minimum socket clearance inside the enclosure.

Highlights

  • DPDT contact form enables versatile switching control
  • 12 A at 250 V AC handles substantial loads
  • 24 V AC coil suits common control voltages
  • LED indicator plus mechanical flag shows status clearly
  • Plug-in square base with 8 flat pins simplifies installation

Specifications

BrandSCHNEIDER ELECTRIC
TypeIndustrial Electrical Controls & Automation
ColorTransparent

Questions about this item

What socket or base accepts the 8 flat pins on this relay?

The relay uses an 8-pin plug-in base with 0.09 in flat pins; match it to a standard octal socket rated for 12 A at 250 V AC or 28 V DC.

How do I install the RXM2AB2B7 and which step is often missed?

Push the relay straight into the socket until the mechanical flag locks; the common error is not pressing far enough to engage the lockable push-to-test latch.

When should I replace the LED indicator or the relay itself?

Replace the relay if the LED no longer illuminates with 24 V AC coil voltage or if the DPDT contacts fail to switch 12 A loads at 250 V AC or 28 V DC.
