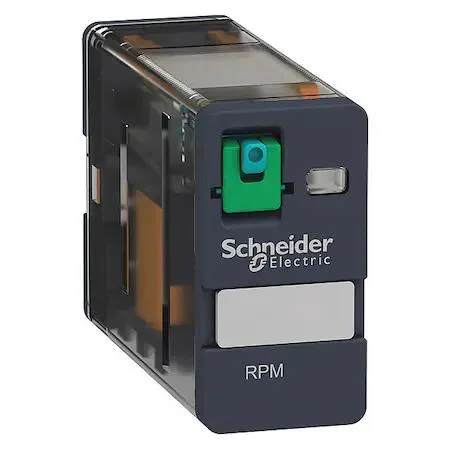

Schneider Electric RPM11BD Relay 24V DC 15A 5 Pin Square

SKU CH-YBZ0-FMNR7

A 24V DC coil relay with SPDT contacts rated at 15A for 250V AC or 28V DC switching in a five-pin square plug-in base

  • TypeMiniature Power, Mechanical Indicator
  • ColorTransparent
  • 24 V DC coil suits low-voltage control circuits
  • 15 A contact rating handles significant AC or DC loads
  • SPDT contact form gives one change-over switching path
  • mechanical flag indicator shows relay status at a glance
  • lockable push-to-test button allows safe manual operation

Schneider Electric RPM11BD Relay

The Schneider Electric RPM11BD is a miniature power relay with a mechanical indicator flag. It operates on a 24V DC coil and provides a single pole double throw contact arrangement rated at 15 A. The enclosed body measures 1.58 in deep, 1.06 in high and 0.55 in wide with a transparent cover. It mounts via a plug-in base using five flat quick-connect pins.

Suits 24V DC control circuits switching 15 A loads

This relay suits panels and machines where a visible mechanical flag shows contact status without power. The lockable push-to-test button allows manual circuit verification during commissioning. It is not for circuits requiring a horsepower-rated motor starter at 120V or 240V AC. Buyers needing multiple poles or a different coil voltage must select another part.

24V DC coil voltage decides compatibility

The coil requires exactly 24V DC to actuate the 15 A contacts rated for 250V AC or 28V DC. Applying a higher or lower coil voltage will prevent reliable operation or damage the relay. Verify the control supply matches this value before installation.

Highlights

  • 24 V DC coil suits low-voltage control circuits
  • 15 A contact rating handles significant AC or DC loads
  • SPDT contact form gives one change-over switching path
  • mechanical flag indicator shows relay status at a glance
  • lockable push-to-test button allows safe manual operation

Specifications

BrandSchneider Electric
ModelRPM11BD
TypeMiniature Power, Mechanical Indicator
ColorTransparent

Questions about this item

Does the relay generate noticeable heat or noise when it runs continuously at the 15 A rating?

The enclosed miniature power relay uses a mechanical flag indicator and has no fan or moving parts beyond the contact armature, so it operates silently with only the small heat rise normal for a 15 A resistive load.

What socket or wiring must I already have to install this 5-pin flat-pin relay?

You need a compatible 5-pin plug-in socket that accepts 0.19 in flat pins on 1.58 in depth centres, plus 24 V DC coil supply wiring rated for the control circuit current.

Can I use this relay in a panel that still has older 120 V or 240 V AC contactors?

Yes — the SPDT contacts are rated 15 A at 250 V AC and 15 A at 28 V DC, so they can switch the same control-voltage circuits as legacy contactors while the 24 V DC coil keeps the new relay isolated from the older mains-voltage coil supply.
