Schneider Electric Pushbutton Red 22mm Momentary Flush Booted

22mm Momentary Pushbutton

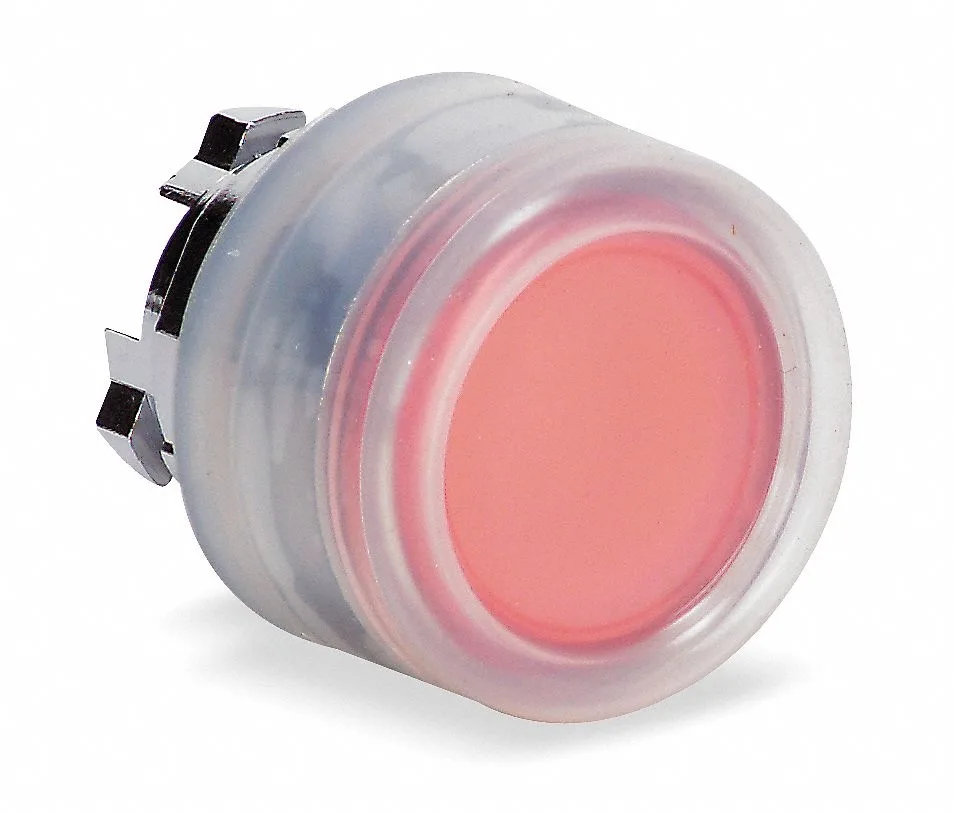

The Schneider Electric pushbutton is a 22mm momentary operator with a flush booted head made from aluminium-zinc alloy. It is intended for control panels that require a red illuminated actuator with a chrome-plated metal bezel. The unit ships without a lamp module, so the operating voltage depends on the module selected by the installer. This component suits industrial machinery and automotive accessory panels.

NEMA 4X and IP66 sealing under continuous use

The operator carries NEMA 4X and 13 ratings together with an IP66 rating, meaning the sealing is tested against directed water jets and corrosion rather than brief splashes. In sustained operation the metal construction and booted flush design maintain the ingress protection without degradation from vibration or temperature cycling. The momentary action returns reliably after each press because the mechanism is built for repeated industrial duty cycles.

22mm panel cut-out and module-dependent voltage

Installation is limited to a standard 22mm mounting hole, which fixes the panel layout and prevents use in smaller cut-outs. Because the lamp module is not included, the final voltage and lamp type are determined by the separate transformer or LED module chosen, so the circuit designer must match the module to the supply. The absence of a legend plate means custom labelling must be sourced separately if identification is required.
