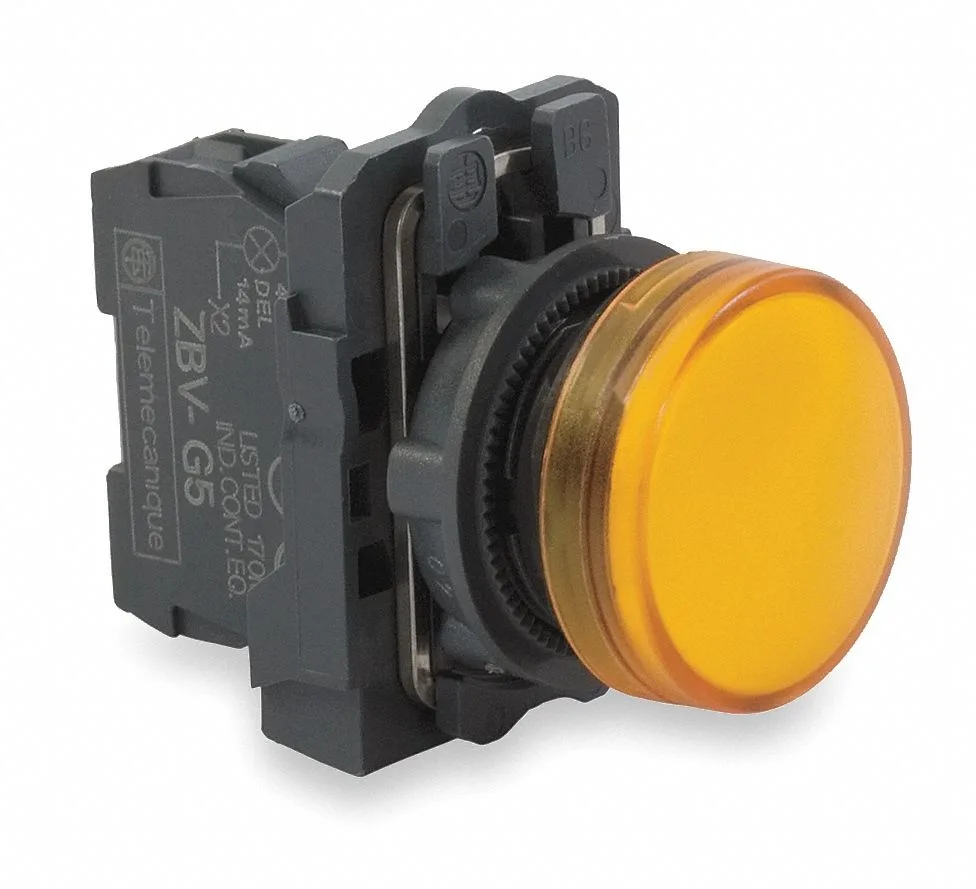

Schneider Electric yellow LED pilot light round 22mm plastic body

Schneider Electric

Schneider Electric Pilot Light LED Yellow 22mm 110-120VAC

SKU CH-P8MD-VEK0G

Yellow LED pilot light, 22 mm cut-out, 110-120 V AC, IP66 and NEMA 4/4X/13 rated

  • TypeComplete Unit, LED
  • Yellow LED indicator for clear visual status
  • 110-120VAC operation fits standard control circuits
  • 22mm mounting with screw-clamp terminals for secure wiring
  • IP66 and NEMA 4, 4X, 13 ratings resist dust and water ingress
  • UL, CSA and CE certified for compliant installations

22 mm Yellow LED Pilot Light

This Schneider Electric pilot light uses a yellow LED in a 22 mm round housing rated for 110 to 120 VAC. It ships as a complete unit with mounting base, light module and head, and carries NEMA 4, 4X, 13 and IP66 ratings for industrial environments.

Suited for panels needing a compact status indicator

Control panels, motor starters and machine enclosures that require a single-colour visual signal at mains voltage will fit this unit. Installations that need multi-colour indication, lower control voltages or a different mounting diameter should consider other options.

Maintains steady illumination under continuous

The full-voltage LED module is designed for sustained 110 to 120 VAC operation without external resistors. Its plastic body and screw-clamp terminals resist vibration and moisture, so the light output remains stable during extended duty cycles.

Highlights

  • Yellow LED indicator for clear visual status
  • 110-120VAC operation fits standard control circuits
  • 22mm mounting with screw-clamp terminals for secure wiring
  • IP66 and NEMA 4, 4X, 13 ratings resist dust and water ingress
  • UL, CSA and CE certified for compliant installations

Specifications

BrandSchneider Electric
TypeComplete Unit, LED

Questions about this item

What panel cut-out size is needed to mount the 22 mm pilot light?

The unit fits a standard 22 mm cut-out and includes the mounting base, light module and head for a complete installation.

Can the 110-120 VAC LED indicator share a control circuit with older incandescent pilot lights?

Yes, the full-voltage LED module operates directly on 110-120 VAC without a separate transformer, so it can be wired in parallel with legacy indicators of the same voltage.

How do I confirm the yellow LED is illuminated correctly after wiring?

Apply 110-120 VAC to the screw-clamp terminals; the yellow LED should light steadily, and the IP66 / NEMA 4, 4X, 13 sealed head will show no moisture ingress.
