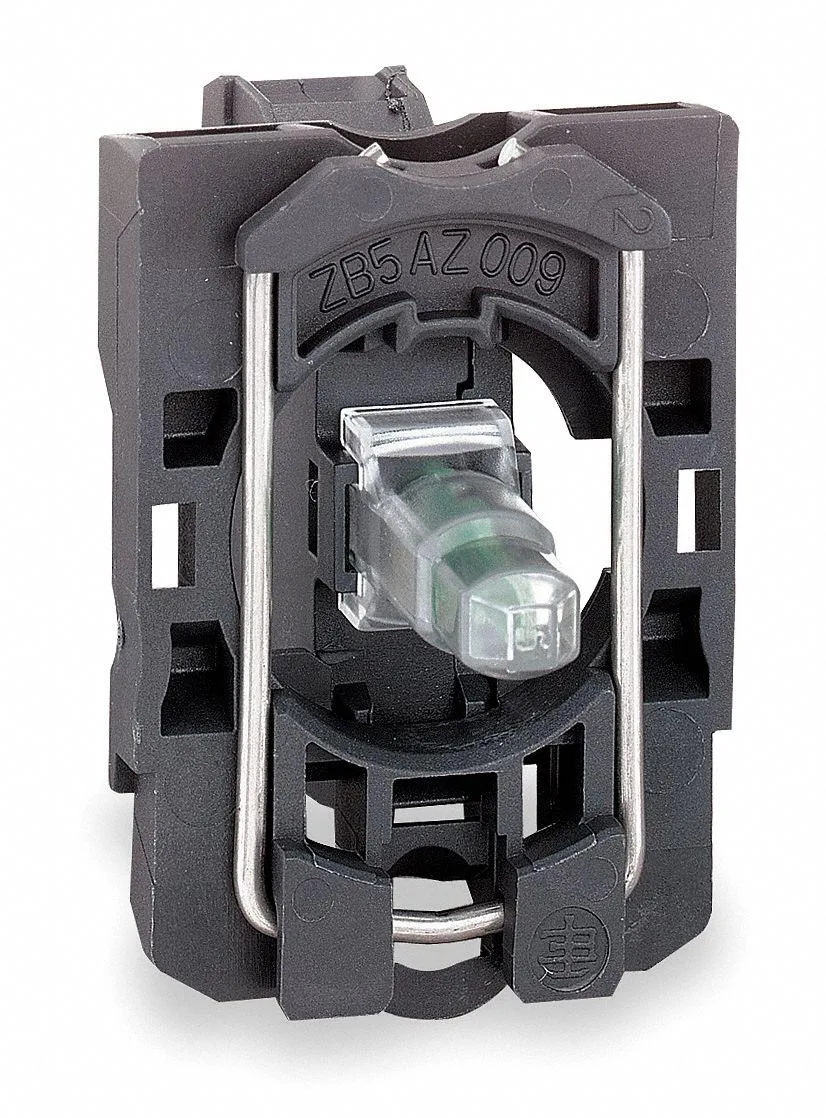

Schneider Electric Lamp Module 22 mm 120V AC White

Industrial lamp module for 22 mm panels

This Schneider Electric lamp module fits a standard 22 mm cut-out and operates at 120 V AC with a white LED. It uses screw-clamp terminals for secure wiring and a full-voltage design that does not require a separate transformer. The plastic housing carries NEMA 1, 2, 3, 4, 4X, 12 and 13 ratings for indoor and outdoor industrial use. It meets CSA C22.2 No. 14, UL 508 and multiple EN/IEC 60947 standards.

Panel-mount indicator for control cabinets

The module installs directly into a 22 mm opening on enclosures, push-button stations or machine consoles. Screw-clamp terminals accept solid or stranded conductors without special tools, simplifying field wiring. A full-voltage LED eliminates the need for external resistors or transformers, freeing panel space and reducing bill-of-materials cost. NEMA 4X and 13 ratings allow deployment in wash-down and oily environments.

Replaces incandescent or neon pilot lights

Upgrading from filament or neon indicators removes bulb-replacement labour and cuts power draw. The jump is worth it when panels must stay lit for long shifts, when vibration shortens bulb life, or when NEMA 4X ingress protection is required. It is not suited for buyers who need a multi-colour status display or a module rated for hazardous-location classifications beyond the listed NEMA types.
