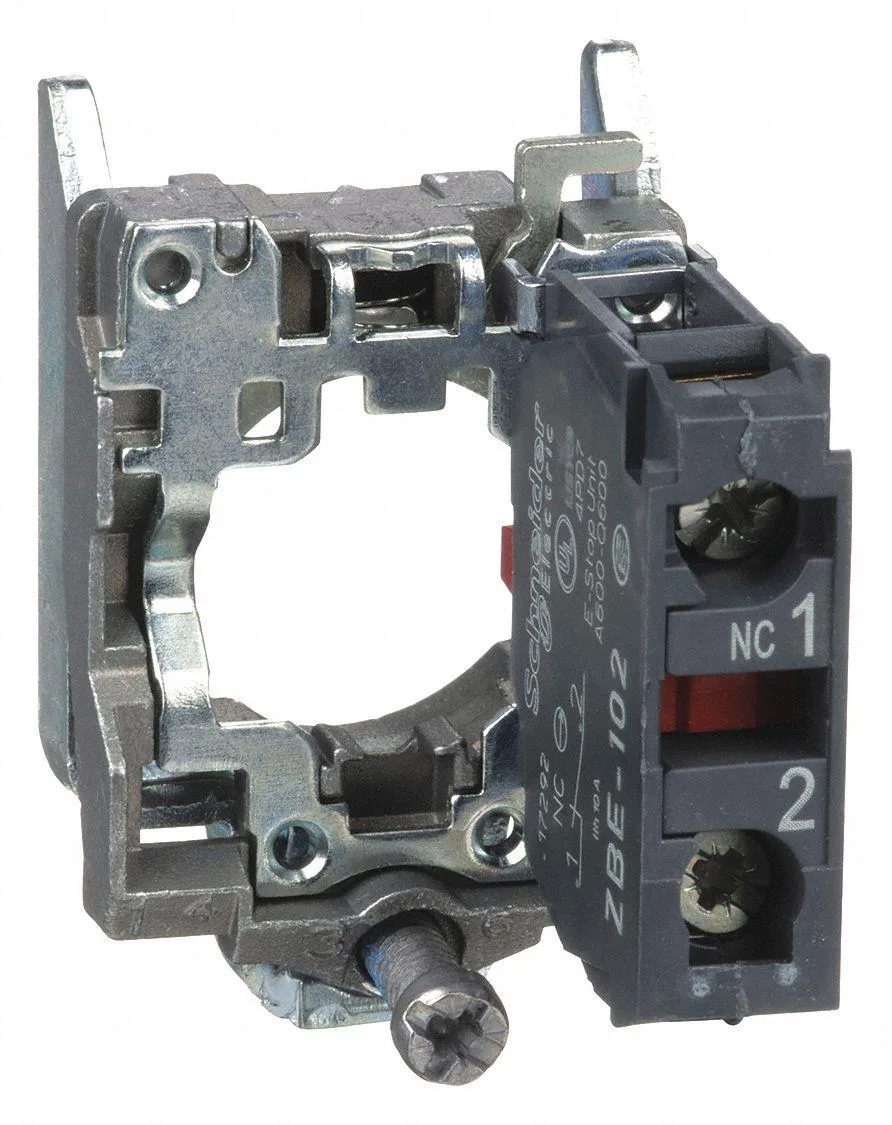

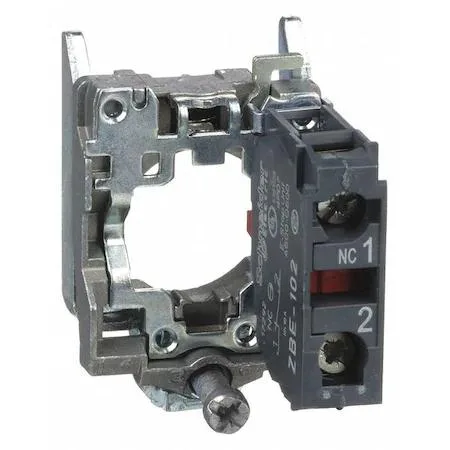

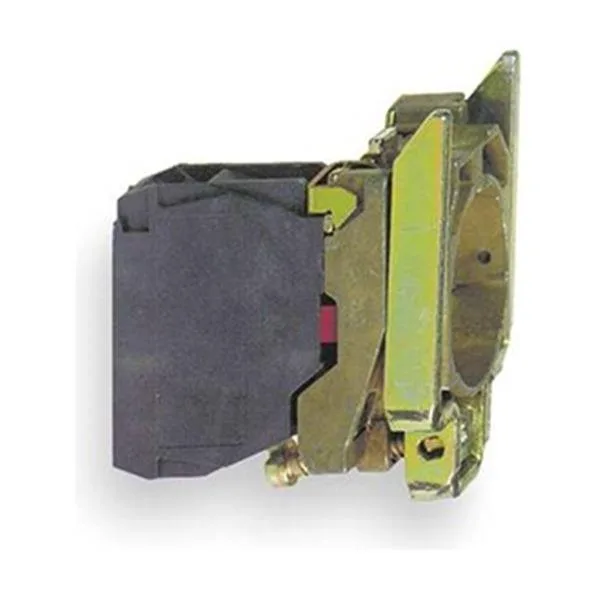

Schneider Electric black 22mm contact block with screw terminals

Schneider Electric

Schneider Electric Contact Block 1NC 10A 600V 22mm Black

SKU CH-6WX1-QBVVQ

A 22 mm contact block rated 10 A at 600 V AC with 1NC momentary action and screw-clamp terminals, compliant to IEC 60947 and UL 508 standards

  • TypeIndustrial Electrical Controls & Automation
  • Size22 mm
  • Reliable switching with 1NC contact form rated 10A at 600V AC
  • Secure screw/clamp terminals simplify wiring and maintenance
  • Fits standard 22 mm cut-outs for quick panel integration
  • Meets IEC 60947 and UL 508 safety standards
  • Black finish matches chrome ZB4 metal operators for consistent look

Industrial Contact Block 22 mm 10 A 600 V

This Schneider Electric contact block provides a single normally-closed circuit rated at 10 amperes and 600 volts AC. It mounts in a standard 22 mm panel cut-out and is designed for use with chrome ZB4 metal operators. The screw-clamp terminals accept wire without special tools, and the momentary action suits push-button or selector-switch applications. It carries CSA, IEC, JIS and UL 508 listings for industrial control panels.

Passive Component Thermal and Power Profile

As a passive electromechanical device the block generates no measurable heat and operates silently in normal service. Power draw is limited to the contact circuit itself, so no additional cooling or power-budget allowance is required. The screw-clamp terminals maintain a secure connection under vibration without loosening. Compliance with IEC 60947-5-1 and UL 508 confirms suitability for continuous industrial duty.

Standards-Driven Integration Benefits

Certification to CSA C22.2 No. 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1 and UL 508 allows the block to be specified in panels that must meet North American and international codes. The A600/Q600 NEMA designation simplifies contactor and relay coordination. Buyers needing normally-open contacts or multiple poles will require additional blocks.

Highlights

  • Reliable switching with 1NC contact form rated 10A at 600V AC
  • Secure screw/clamp terminals simplify wiring and maintenance
  • Fits standard 22 mm cut-outs for quick panel integration
  • Meets IEC 60947 and UL 508 safety standards
  • Black finish matches chrome ZB4 metal operators for consistent look

Specifications

BrandSchneider Electric
TypeIndustrial Electrical Controls & Automation
Size22 mm

Questions about this item

How do you mount the 22 mm contact block onto a panel and what step is often missed?

Insert the block through a 22 mm cut-out, align the anti-rotation notch, then tighten the locking nut; the step often missed is engaging the notch before final torque.

What maintenance or replacement will the screw-clamp terminals need over time?

Periodically re-tighten the screw clamps to counter vibration loosening and inspect contacts for pitting; replace the block if contact resistance rises or the 1NC action fails.

At what current does the 10 A 600 V AC rating become the limiting factor during sustained operation?

Continuous loads above 10 A at 600 V AC will exceed the A600/Q600 rating, causing overheating and premature contact wear.
