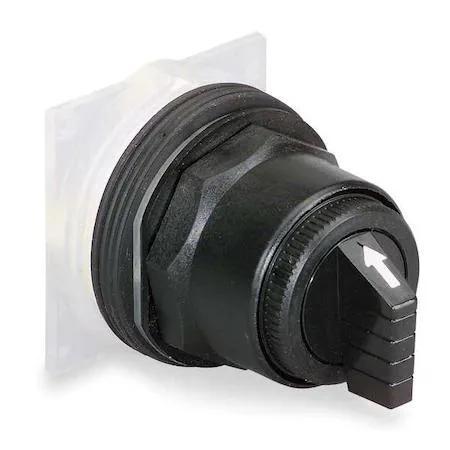

Schneider Electric black selector switch, short lever, 30 mm, four positions

Schneider Electric

Schneider Electric 9001SKS88B Selector Switch 30mm 4Pos Black

SKU CH-X88C-99A12

30 mm selector switch with four maintained positions, black lever operator, NEMA 3, 3R, 4, 4X, 12, 13 and IP66 ratings

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • 30 mm mounting fits standard panels
  • Four maintained positions give flexible control
  • NEMA 12, 13, 3, 3R, 4, 4X rating resists harsh environments
  • IP66 protection blocks dust and water ingress
  • Certified to CE, CSA LR24590 and UL E42259 standards

Schneider Electric 30 mm 4-Position Selector Switch

The Schneider Electric 9001SKS88B is a 30 mm short-handled selector switch designed for industrial control panels. It provides four maintained positions for operators who need distinct, lockable settings in a single device. The black plastic lever and bezel suit standard panel aesthetics while meeting NEMA 12, 13, 3, 3R, 4 and 4X environmental ratings. It is built for machinery builders and maintenance teams specifying durable manual controls.

Four maintained positions with IP66 sealing

The switch cycles through four maintained positions using a Cam H mechanism, giving clear tactile feedback at each step. Its IP66 rating protects against powerful water jets and dust ingress, while the listed NEMA ratings cover indoor and outdoor wash-down environments. The plastic operator head resists corrosion but is not suited for extreme impact or high-temperature zones beyond the published standards. Buyers needing momentary action or key-operated security will not find those functions here.

Panel-ready hardware with certified compliance

The unit ships as a complete operator head with lever, bezel and mounting hardware for standard 30 mm cut-outs. No key is included because the design uses a lever operator without key removal. Certifications include CE, CSA LR24590 Class 3211 03 and UL E42259 CCN NKCR, simplifying approval for panels destined for North American and European markets. Installers requiring legend plates, contact blocks or alternative handle lengths must source those separately.

Highlights

  • 30 mm mounting fits standard panels
  • Four maintained positions give flexible control
  • NEMA 12, 13, 3, 3R, 4, 4X rating resists harsh environments
  • IP66 protection blocks dust and water ingress
  • Certified to CE, CSA LR24590 and UL E42259 standards

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

Will the 30 mm cutout fit the existing panel on my older control board?

The switch mounts in a standard 30 mm panel cutout, matching the common industrial spacing used on legacy Schneider Electric and compatible panels.

How can I verify the four maintained positions are engaging correctly after installation?

Rotate the black lever through each of the four detents; the cam H mechanism holds every position without spring return, so the lever stays exactly where you leave it.

Does the package include a legend plate or mounting hardware, or must I order them separately?

The switch ships as the operator head only; legend plates, contact blocks and any additional mounting screws are sold separately.
