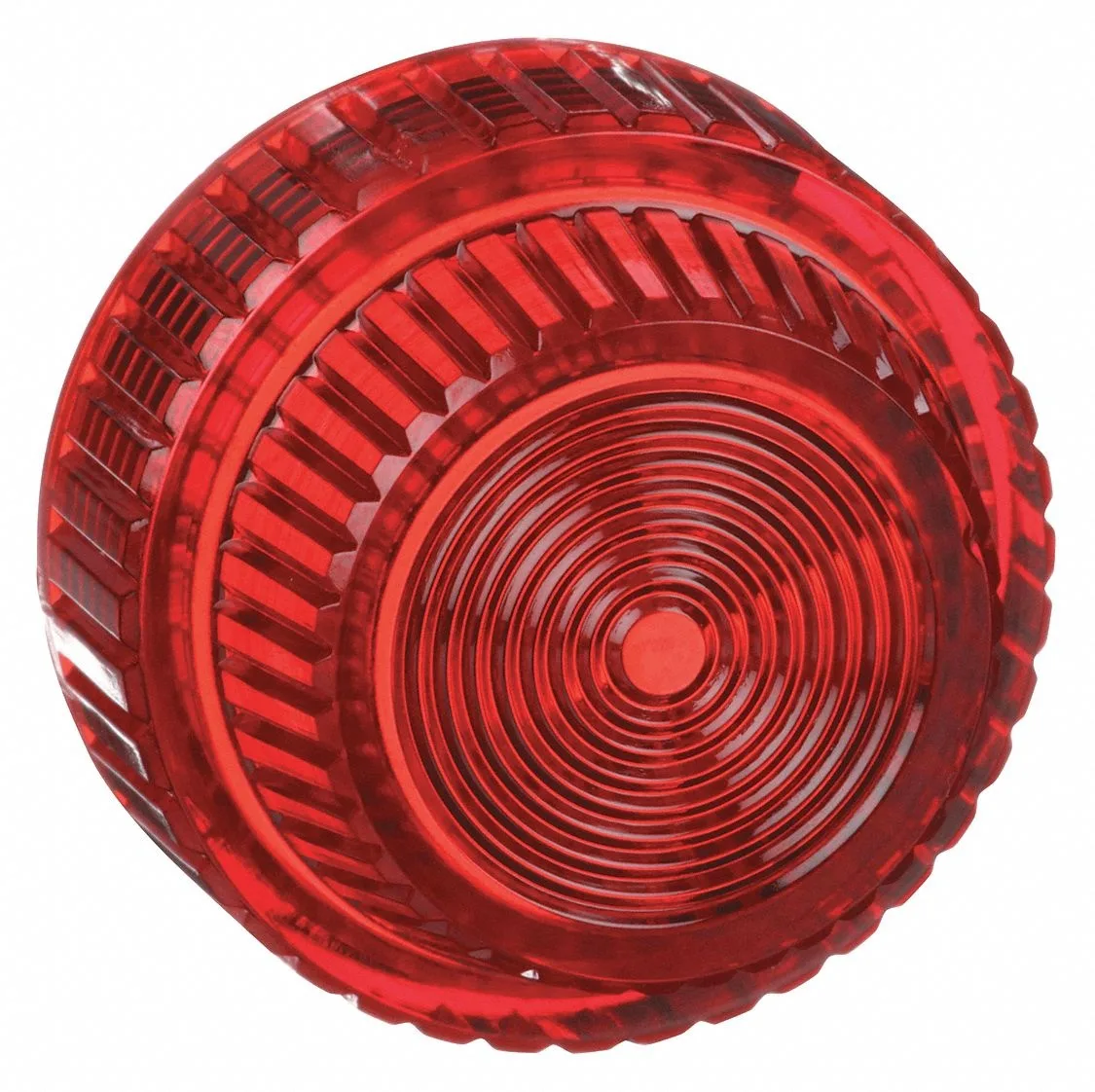

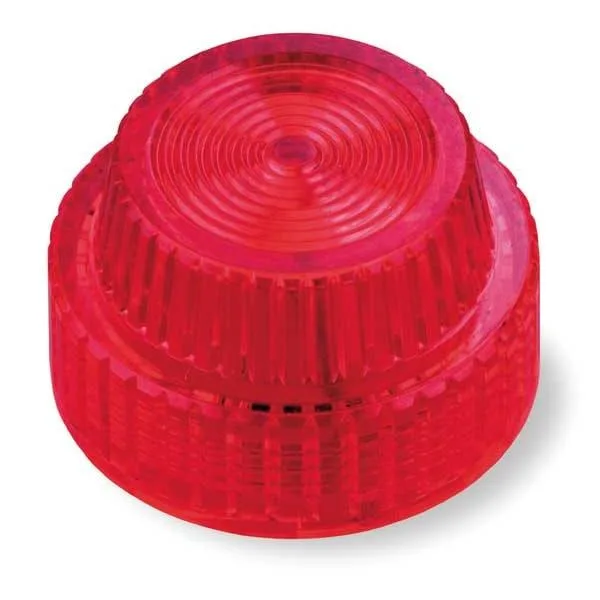

Red 30 mm plastic pilot light lens with Fresnel surface

Schneider Electric

Schneider Electric 9001R31 30 mm Red Plastic Pilot Light Lens

SKU CH-PK1P-3N2ES

Red 30 mm Fresnel plastic lens for Schneider KP, KT and SKP pilot lights, rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 and IP66

  • Engine BrandSCHNEIDER ELECTRIC
  • Engine Size30 mm
  • Red Fresnel lens for clear signalling
  • 30 mm size fits KP, KT and SKP series
  • Plastic construction resists impact and corrosion
  • NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 rated enclosure
  • IP66 protection against dust and powerful water jets

Schneider Electric 9001R31 Pilot Light Lens

The Schneider Electric 9001R31 is a red plastic pilot light lens designed for industrial control panels. It fits Schneider KP, KT and SKP series operators and provides a clear visual status indication in automation environments. The Fresnel lens pattern enhances light distribution for better visibility across viewing angles.

NEMA and IP environmental ratings

The lens carries NEMA ratings 1, 2, 3, 3R, 4, 4X, 12 and 13 alongside an IP66 rating. These certifications confirm protection against dust, water jets and corrosion in indoor and outdoor installations. The ratings define the practical environmental limits for the complete operator assembly when this lens is fitted.

Simple snap-in installation

Installation requires aligning the 30 mm lens with the compatible operator head and pressing until it seats securely. No tools are needed for the lens itself, though the operator body must be correctly mounted first. Misalignment during snap-in can prevent proper sealing, so verify the NEMA or IP rating is maintained after fitting.

Highlights

  • Red Fresnel lens for clear signalling
  • 30 mm size fits KP, KT and SKP series
  • Plastic construction resists impact and corrosion
  • NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 rated enclosure
  • IP66 protection against dust and powerful water jets

Specifications

Engine BrandSCHNEIDER ELECTRIC
Engine Size30 mm

Questions about this item

Is the 30 mm red plastic lens the only size and colour available for the Schneider Electric 9001R31 pilot light?

The 9001R31 is supplied as a single 30 mm red plastic Fresnel lens; other sizes or colours would carry different part numbers.

What does the IP66 rating mean when this lens is fitted to a control panel?

IP66 confirms the installed lens resists powerful water jets and dust ingress, suitable for wash-down environments.

Which NEMA enclosure types does the 9001R31 lens support once mounted?

The lens is rated for NEMA 1, 2, 3, 3R, 4, 4X, 12 and 13 enclosures, covering indoor, outdoor and corrosive locations.
